Specifications:
Acoustical specifications
- FREQUENCY RESPONSE:30 Hz ÷ 100 Hz
- MAX SPL @ 1M:145 dB
Transducers

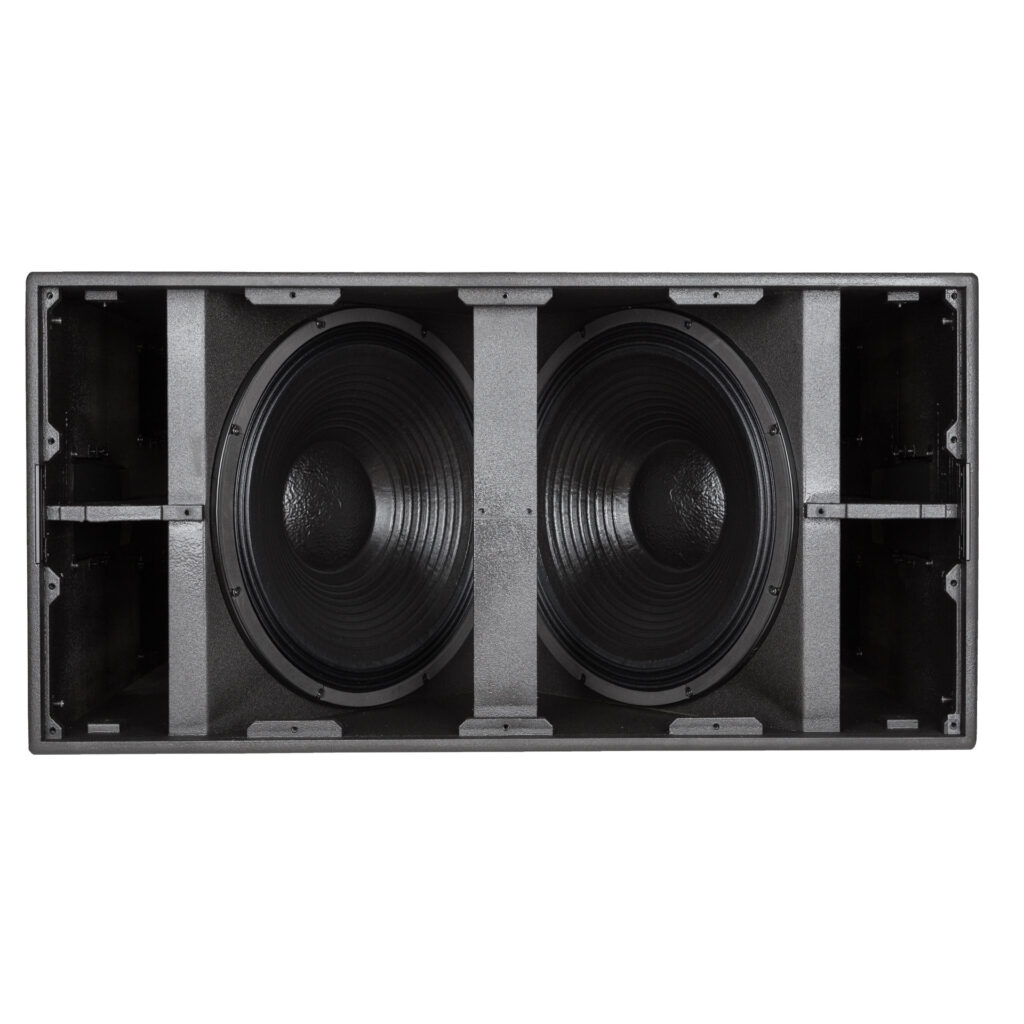

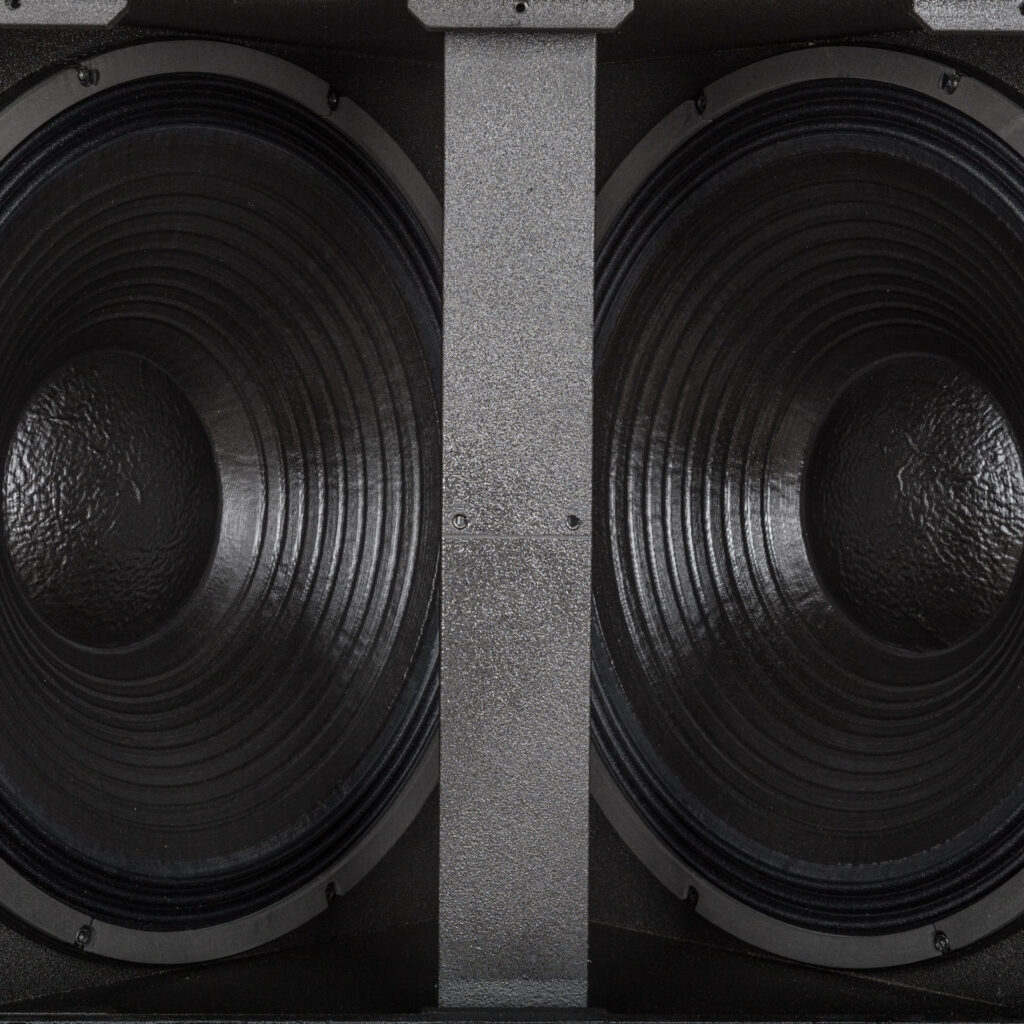

- WOOFER:2 x 21” neo, 4.5” v.c
Input/Output section
- INPUT SIGNAL:bal/unbal
- INPUT CONNECTORS:XLR, RDNet Ethercon
- OUTPUT CONNECTORS:XLR, RDNet Ethercon
- INPUT SENSITIVITY:-2 dBu/+10 dBu
Processor section
- HI-PASS FREQUENCIES:30-45 Hz
- LOW-PASS FREQUENCIES:60-90 Hz
- PROTECTIONS:Thermal, Excurs., RMS
- LIMITER:Soft Limiter
- CONTROLS:DSP Controlled
- RDNET:Yes
Power section
- TOTAL POWER:13600 W Peak, 6800 W RMS
- LOW FREQUENCIES:13600 W Peak, 6800 W RMS
- COOLING:Convection/Forced
- CONNECTIONS:Powercon IN/OUT
Standard compliance
- CE MARKING:Yes
Physical specifications
- CABINET/CASE MATERIAL:Baltic birch plywood

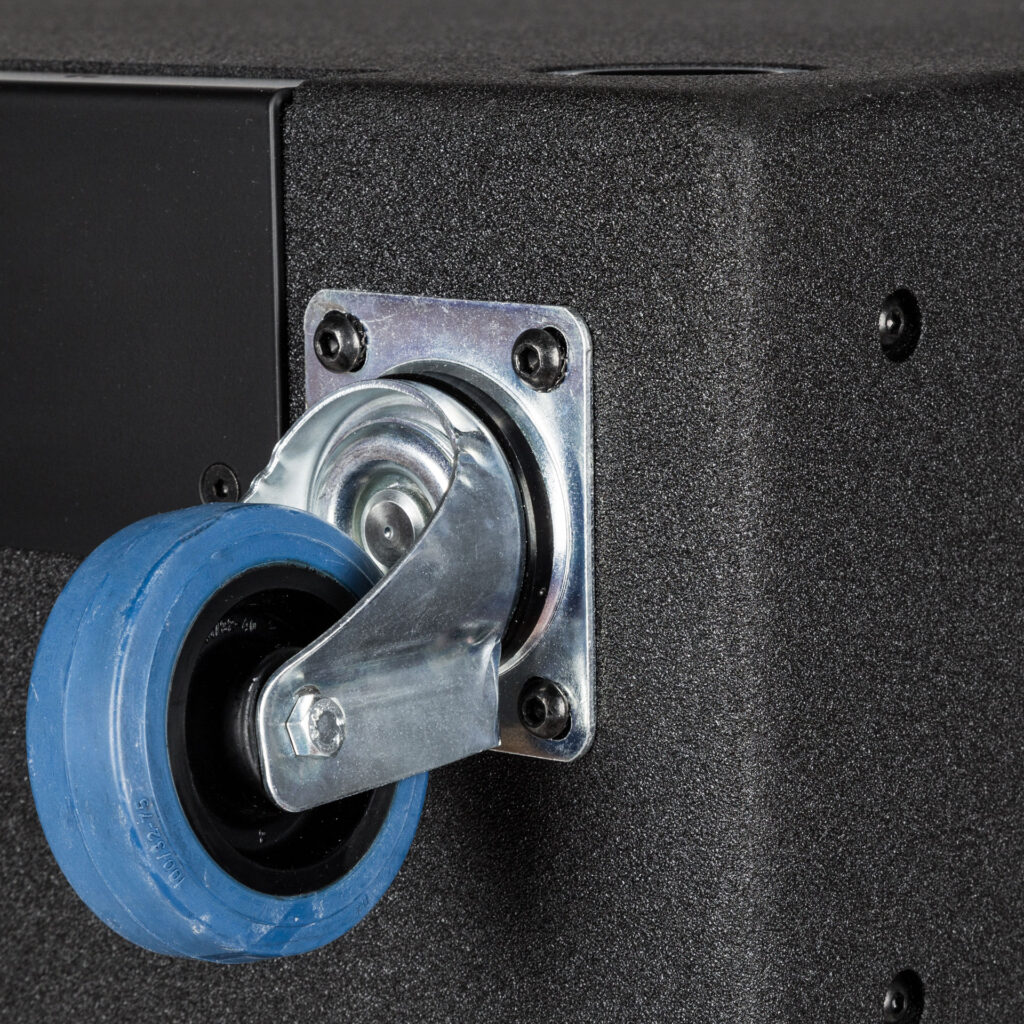

- HARDWARE:2 x steel bar fork – lift transportation, 4 x 100 mm wheels

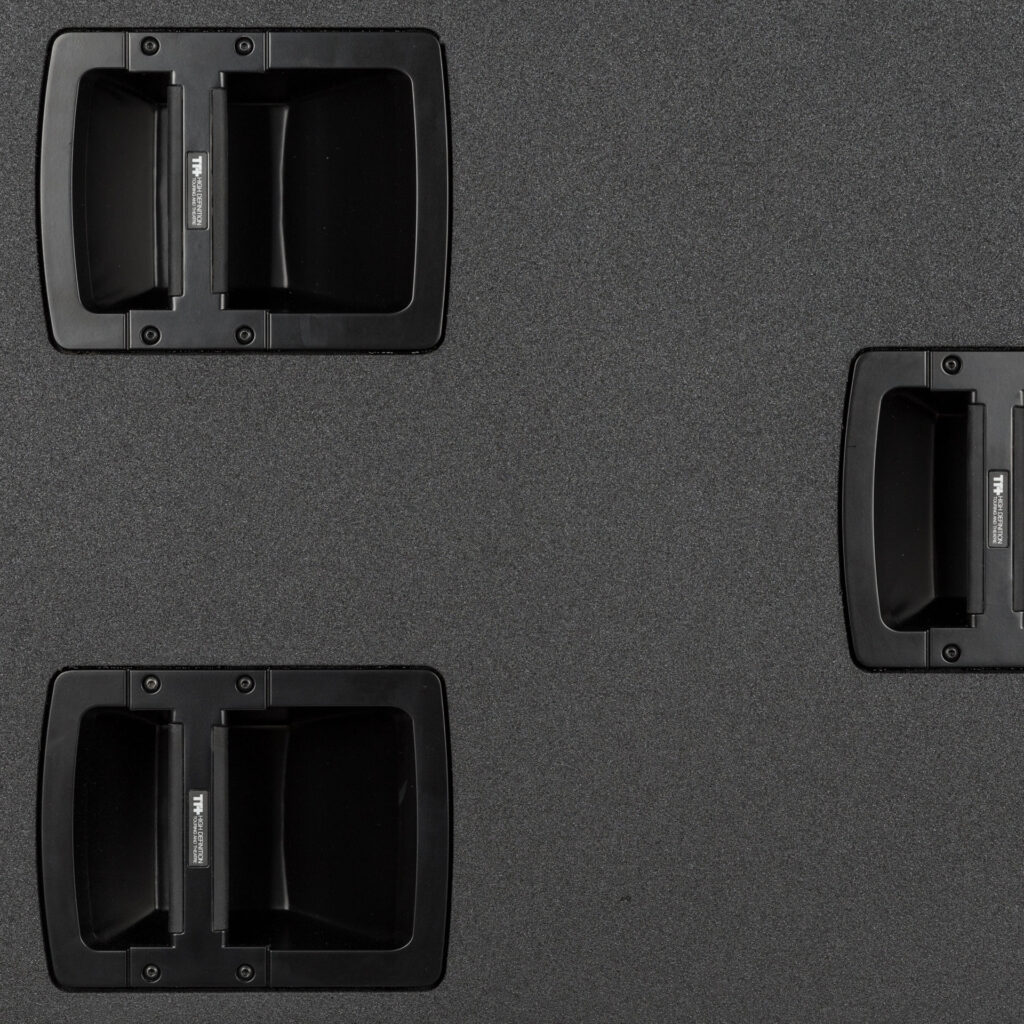

- HANDLES:6 side
- GRILLE:Steel
- COLOR:Black
Size
- HEIGHT:590 mm / 23.23 inches
- WIDTH:1170 mm / 46.06 inches
- DEPTH:988 mm / 38.9 inches
- WEIGHT:122.8 kg / 270.73 lbs
Shipping informations
- PACKAGE HEIGHT:1316 mm / 51.81 inches
- PACKAGE WIDTH:800 mm / 31.5 inches
- PACKAGE DEPTH:1200 mm / 47.24 inches
- PACKAGE WEIGHT:178.2 kg / 392.86 lbs
