Specifications:
Acoustical specifications
- FREQUENCY RESPONSE:50 Hz ÷ 20000 Hz
- MAX SPL @ 1M:134 dB
- HORIZONTAL COVERAGE ANGLE:90°
- VERTICAL COVERAGE ANGLE:60°
Transducers

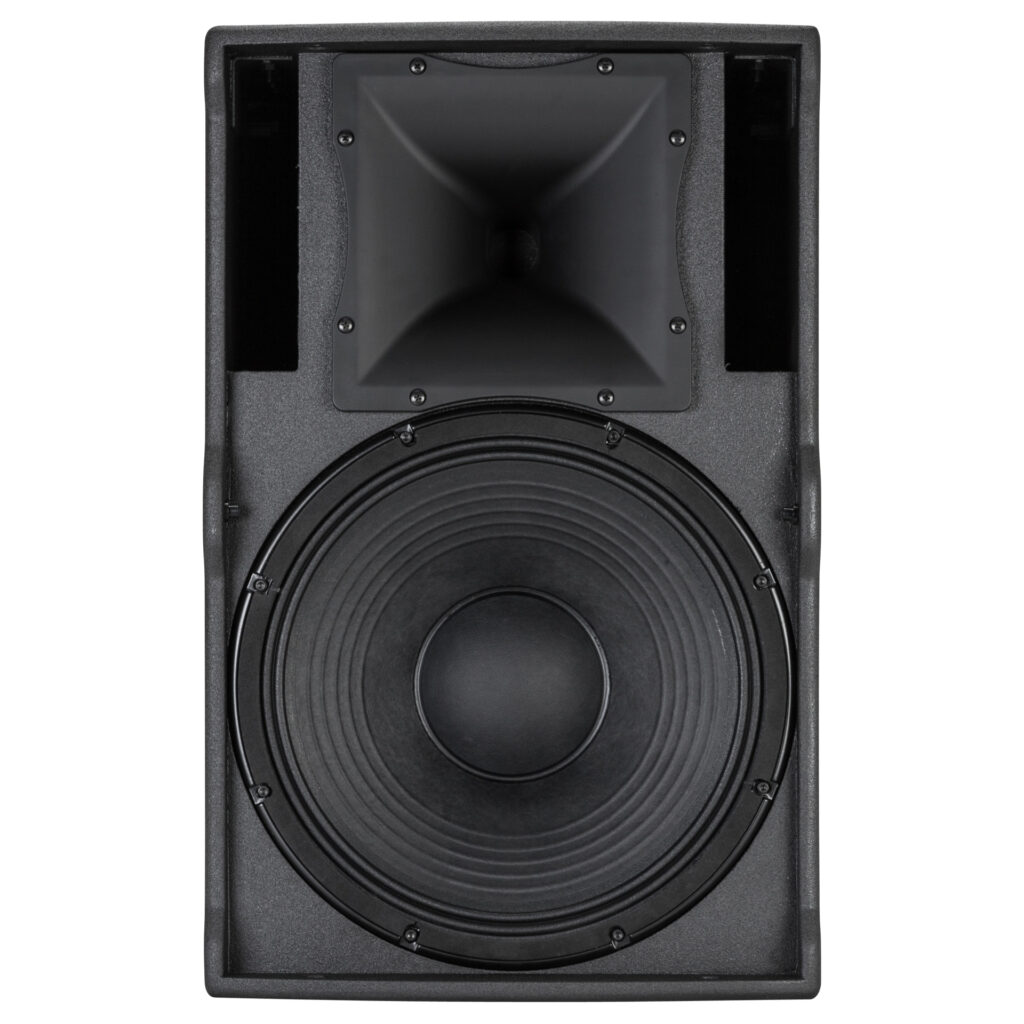

- COMPRESSION DRIVER:1 x 1.5” neo, 4.0” v.c
- WOOFER:15” neo, 3.5” v.c

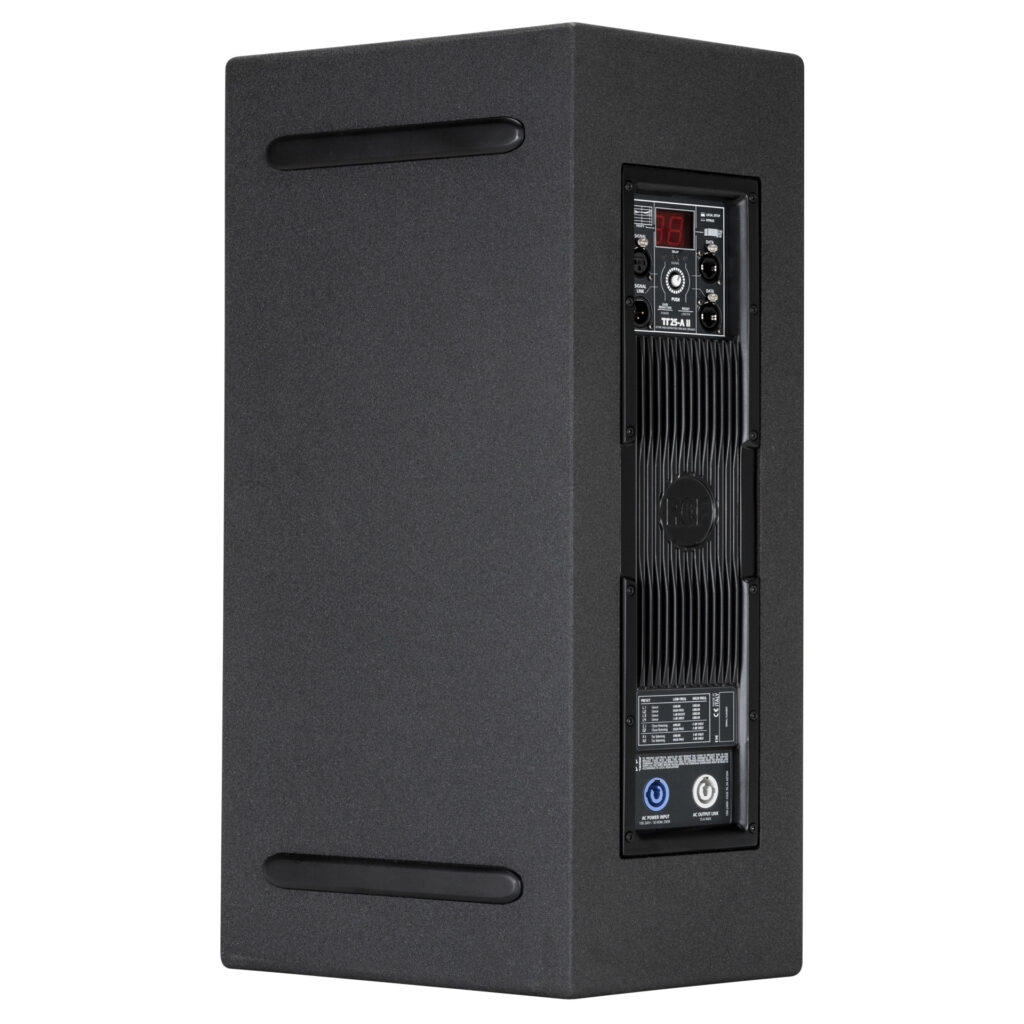

Input/Output section
- INPUT SIGNAL:bal/unbal
- INPUT CONNECTORS:XLR, RDNet Ethercon
- OUTPUT CONNECTORS:XLR, RDNet Ethercon
- INPUT SENSITIVITY:-2 dBu/+4 dBu
Processor section
- CROSSOVER FREQUENCIES:750 Hz
- PROTECTIONS:Thermal, HF
- LIMITER:Fast Limiter
- CONTROLS:Proces., 8 sel. presets
- RDNET:Yes
Power section
- TOTAL POWER:2200 W Peak, 1100 W RMS
- HIGH FREQUENCIES:600 W Peak, 300 W RMS
- LOW FREQUENCIES:1600 W Peak, 800 W RMS
- COOLING:Convection
- CONNECTIONS:Powercon IN/OUT
Standard compliance
- CE MARKING:Yes
Physical specifications
- CABINET/CASE MATERIAL:Baltic birch plywood

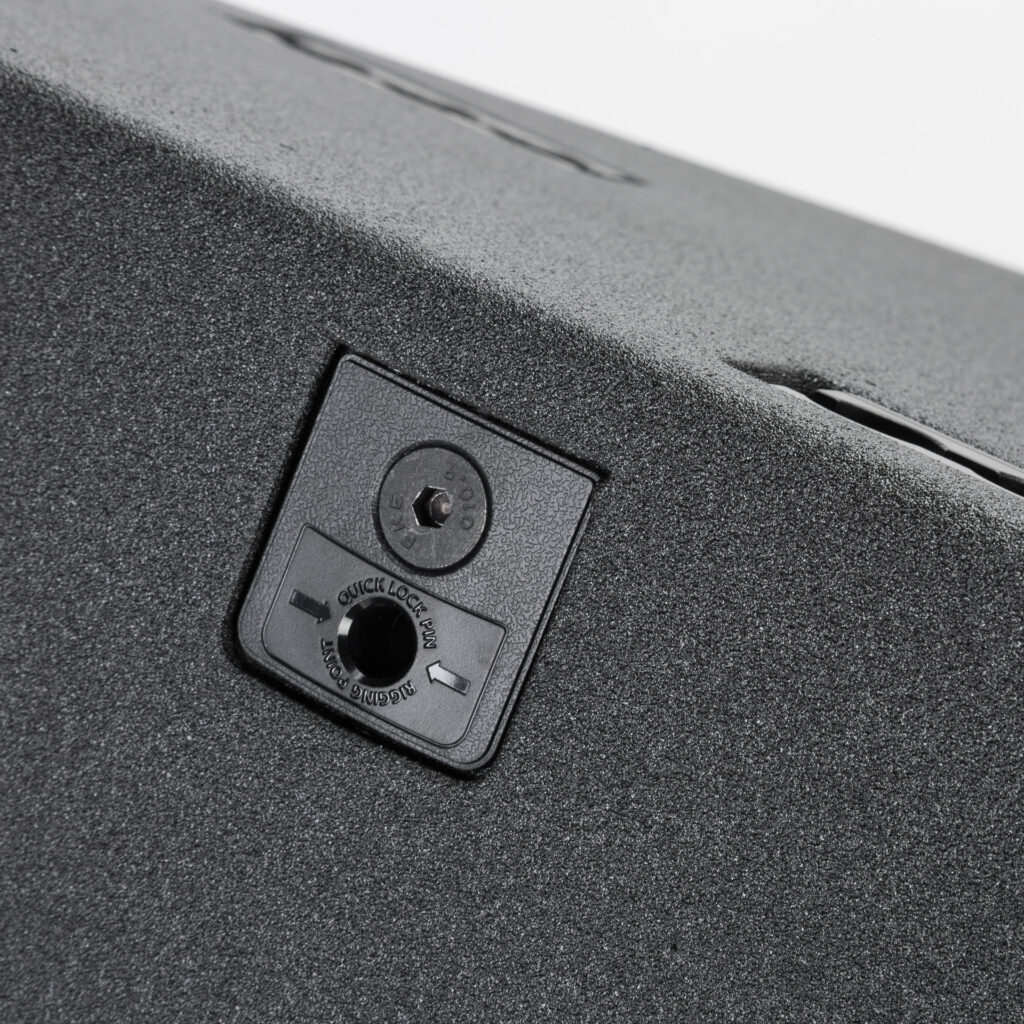

- HARDWARE:6xfly track, quick lock, pole mount
- HANDLES:2 on side
- POLE MOUNT/CAP:Yes
- GRILLE:Steel
- COLOR:Black
Size
- HEIGHT:670 mm / 26.38 inches
- WIDTH:425 mm / 16.73 inches
- DEPTH:425 mm / 16.73 inches
- WEIGHT:26 kg / 57.32 lbs
Shipping informations
- PACKAGE HEIGHT:715 mm / 28.15 inches
- PACKAGE WIDTH:470 mm / 18.5 inches
- PACKAGE DEPTH:470 mm / 18.5 inches
- PACKAGE WEIGHT:32.7 kg / 72.09 lbs
