Specification:
Acoustical specifications
- FREQUENCY RESPONSE: 30 Hz ÷ 400 Hz
- MAX SPL @ 1M: 142 dB
Transducers

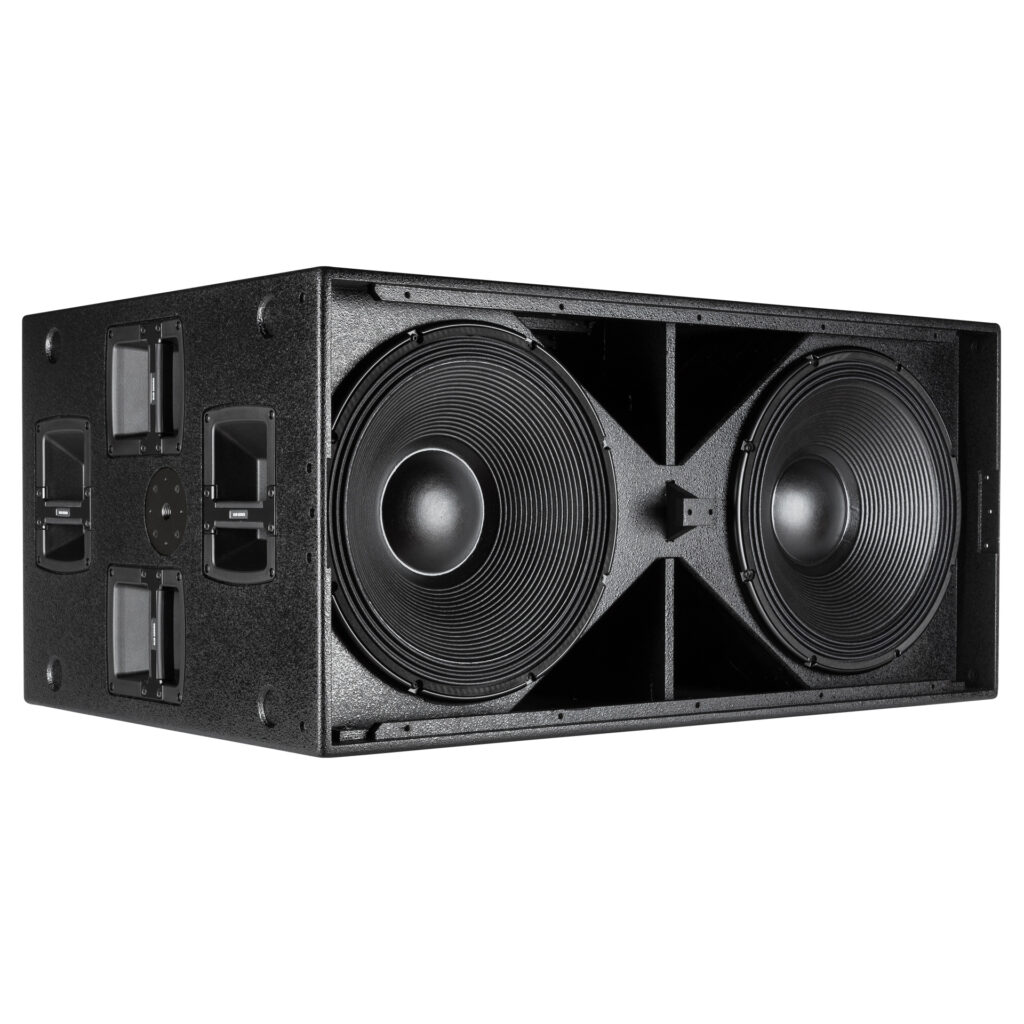

- WOOFER: 2 x 18” neo, 4.0” v.c

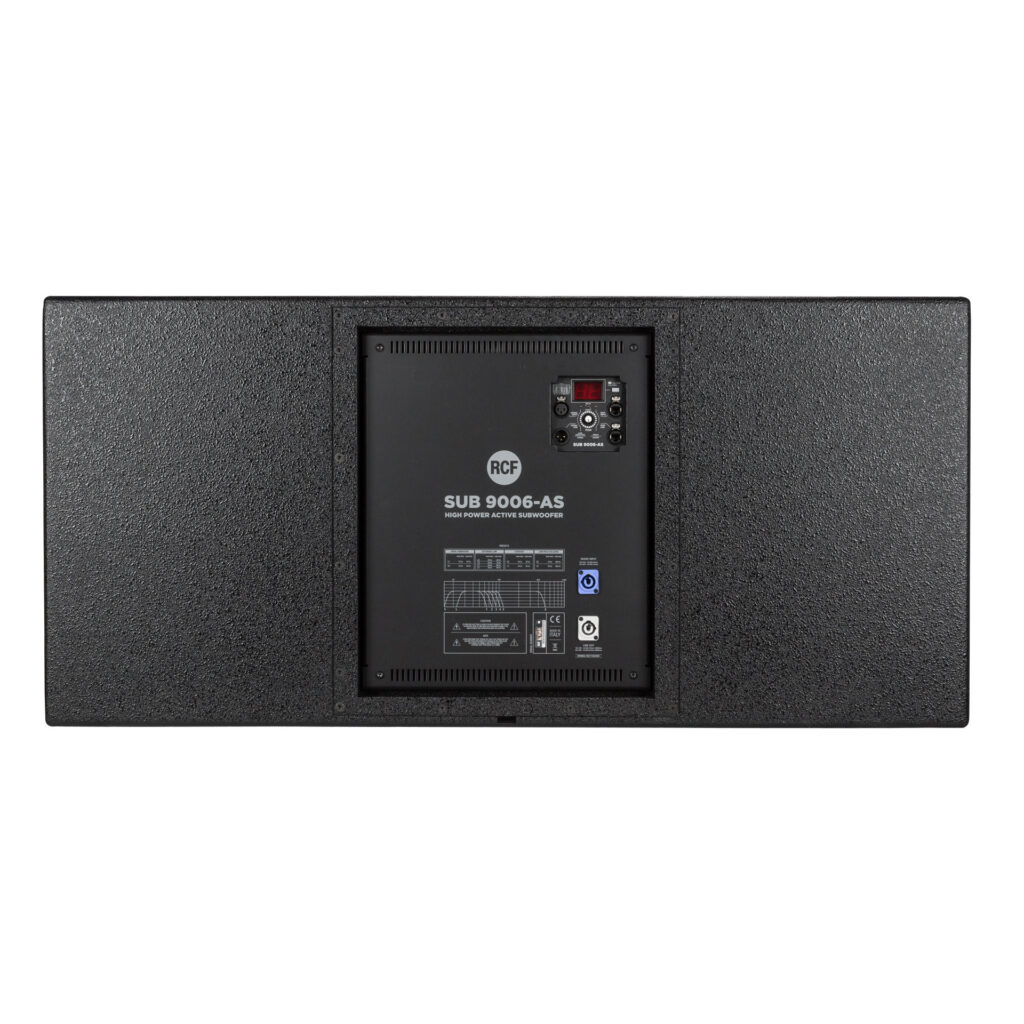

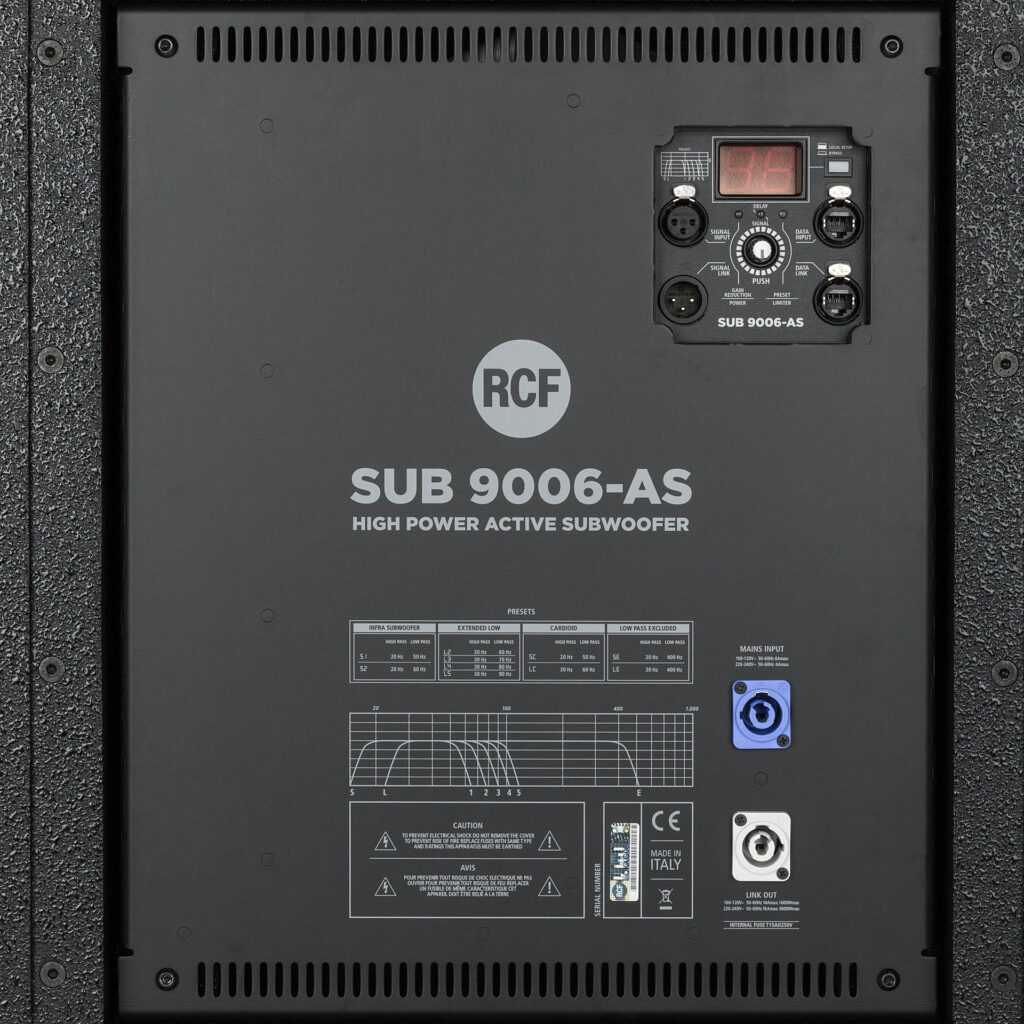

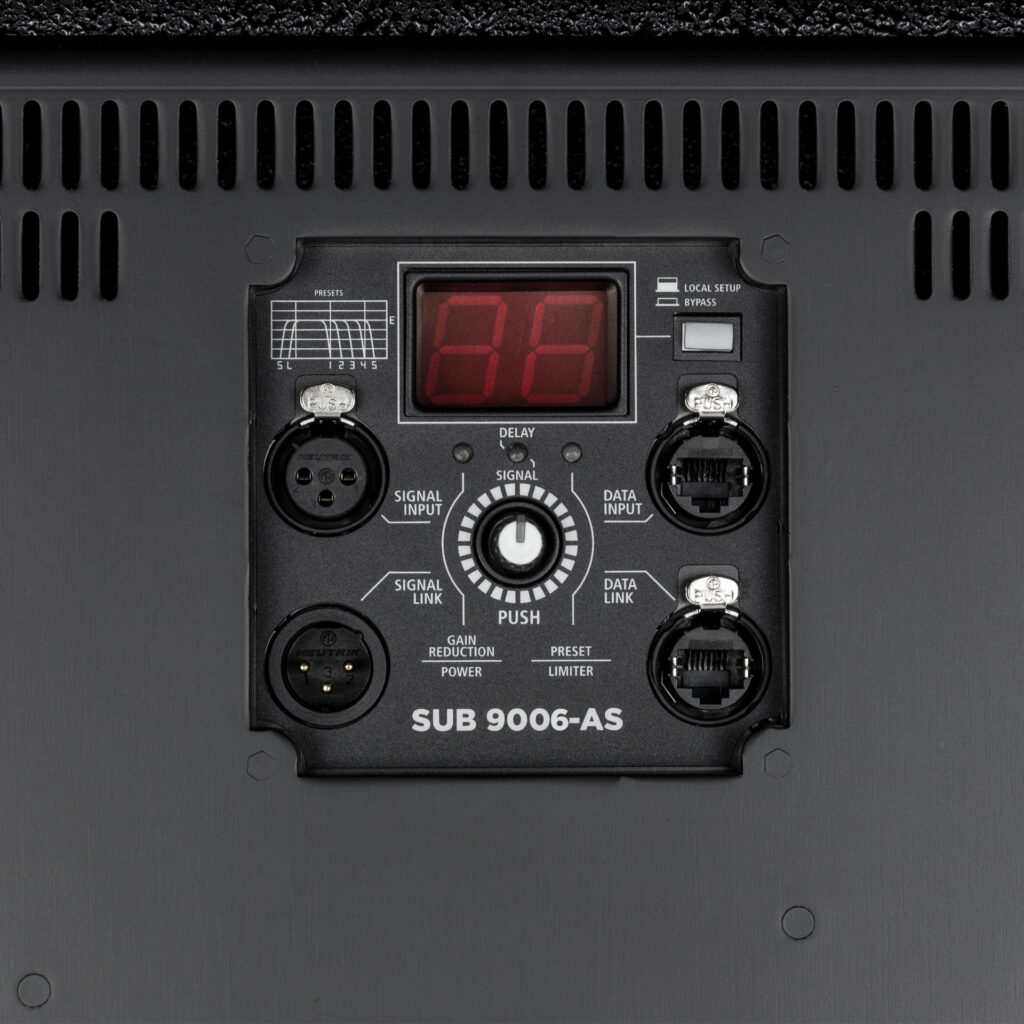

Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR, RDNet Ethercon
- OUTPUT CONNECTORS: XLR, RDNet Ethercon
- INPUT SENSITIVITY: +4 dBu
Processor section
- HI-PASS FREQUENCIES: 30Hz, 40Hz
- LOW-PASS FREQUENCIES: Variable from 50Hz to 400Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Fast Limiter
- CONTROLS: Gain, EQ, Preset, Phase switch, Output Delay Settings
- RDNET: Yes
Power section
- TOTAL POWER: 7200 W Peak, 3600 W RMS
- LOW FREQUENCIES: 7200 W Peak, 3600 W RMS
- COOLING: Convection/Forced
- CONNECTIONS: Powercon IN/OUT
Standard compliance
- CE MARKING: Yes

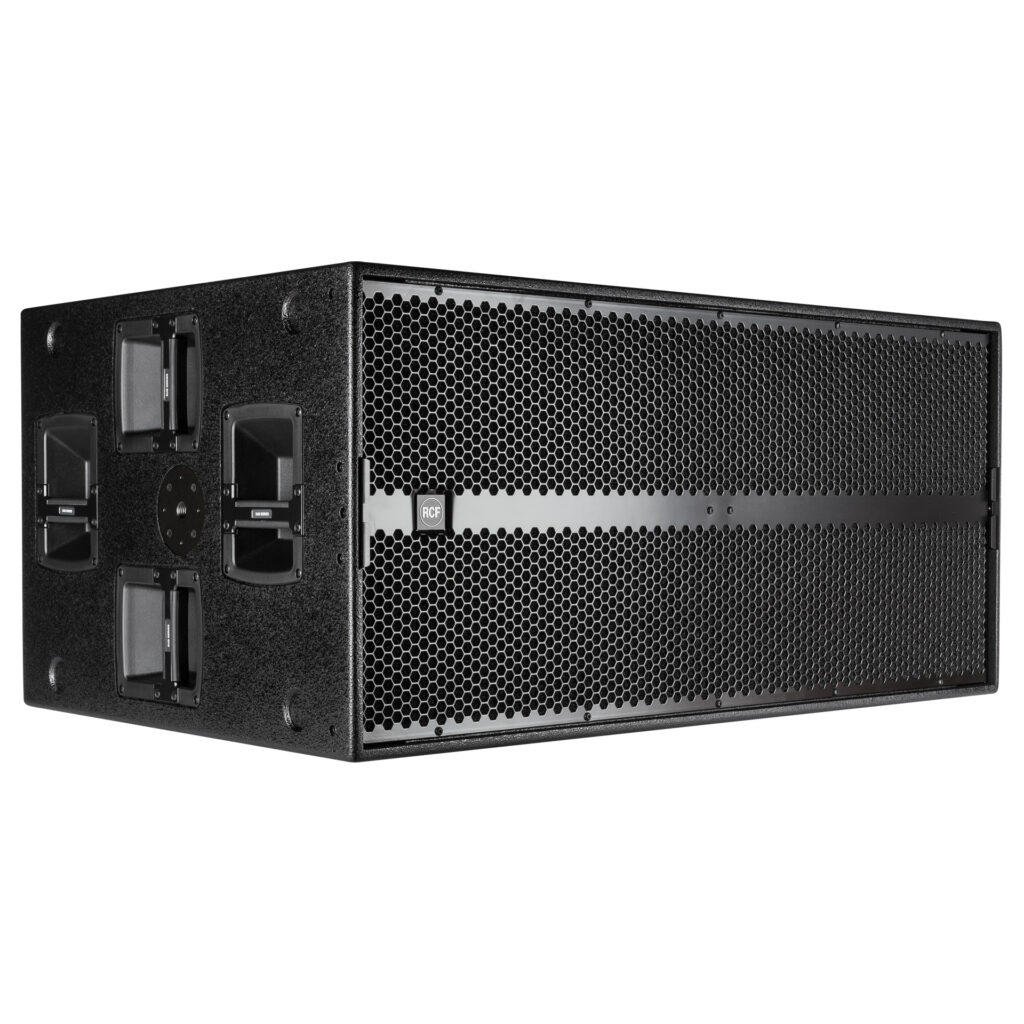

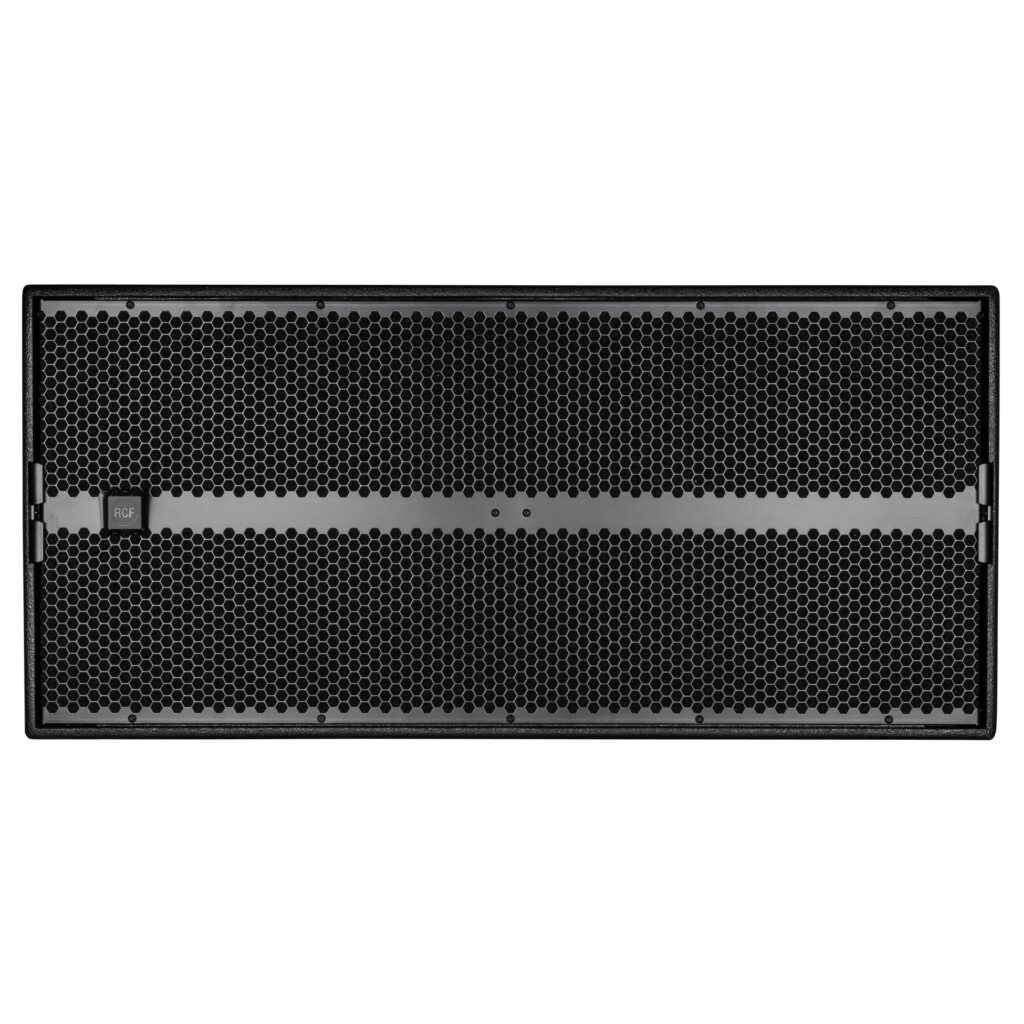

Physical specifications
- CABINET/CASE MATERIAL: Baltic birch plywood
- HARDWARE: 2 x M20

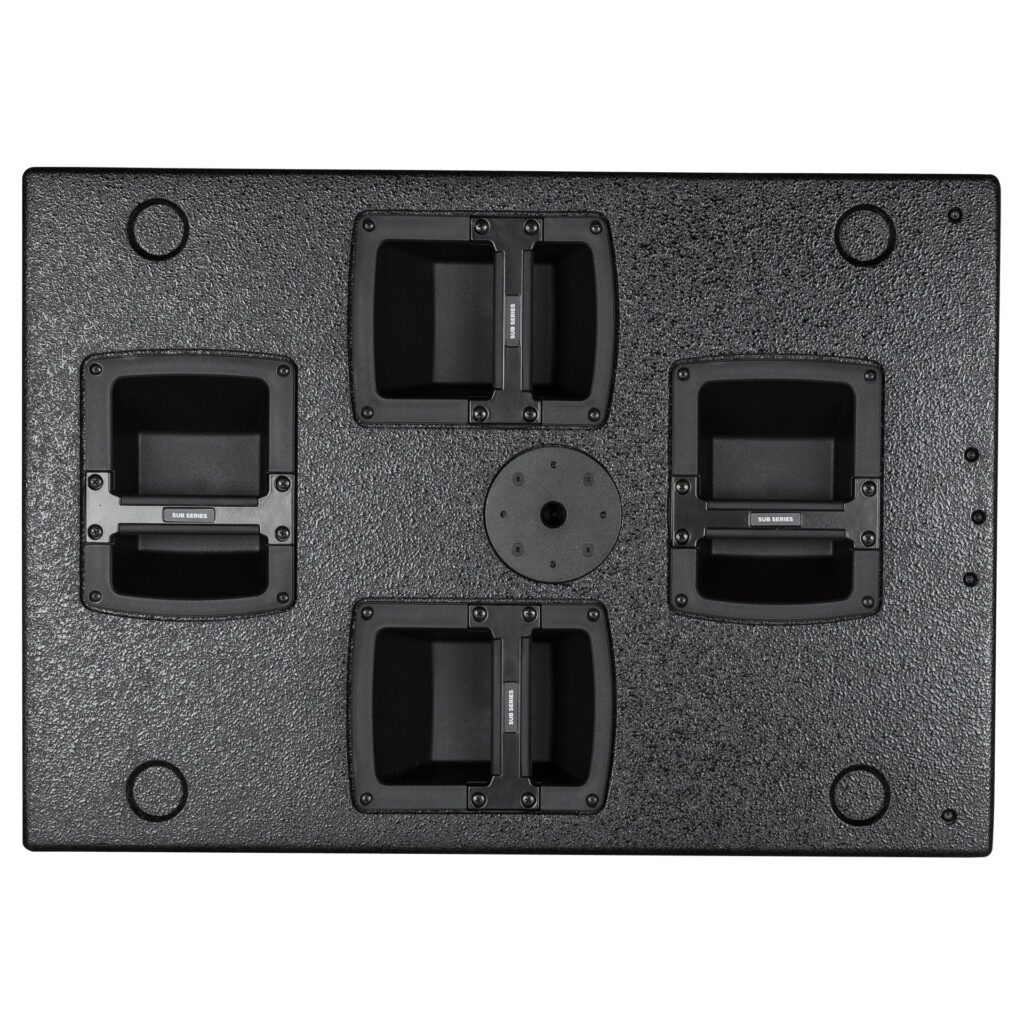

- HANDLES: 8 side
- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 558 mm / 21.97 inches
- WIDTH:m1188 mm / 46.77 inches
- DEPTH: 785 mm / 30.91 inches
- WEIGHT: 86 kg / 189.6 lbs
Shipping informations
- PACKAGE HEIGHT: 600 mm / 23.62 inches
- PACKAGE WIDTH: 835 mm / 32.87 inches
- PACKAGE DEPTH: 1230 mm / 48.43 inches
- PACKAGE WEIGHT: 92 kg / 202.83 lbs
