- For Restaurants, Shops & More
- Elegant Design, Easy to Install
- High-Quality Sound for BMG or Foreground
- 120 x 80° Directivity
- 1 x 6″ Woofer
- 1 x 1.3″ Dome Tweeter
- 60 Hz to 20 kHz Frequency Response
- 100W RMS Power Handling
- 116 dB SPL (Max)
- 4-Pole Euroblock Connectors
Give your customers, patrons, and employees the sound they deserve with the RCF COMPACT M 06, a compact passive speaker suitable for a wide range of installed applications. With its speaker construction, frequency range, and constant directivity angle of 120 x 80°, this monitor provides a professional, hi-fi sound in a customer-facing environment.
This speaker delivers a good sound at low and high levels, making it suitable for background music and foreground sound applications. Its elegant and compact design makes it suitable for almost any installation-based scenario, especially since the mounting options are plentiful, with its M6 and M8 mounting options.
Great Sound for Your Atmosphere
From restaurants to retail shops, this speaker will fit right in, thanks to its elegant design aesthetic and RCF signature sound quality.
Take up Space in the Brain, Not the Room
With its 6″ woofer and 1.3″ dome tweeter, the M 06 is quite compact, though it produces a clear sound up to 100W RMS, 116 dB SPL. This means your audience/customers won’t be bothered by the look of the speaker, allowing them to become fully immersed in the sonic atmosphere you’re trying to create in your space.
Improve Customer Experience
Music helps engagement, improving the hospitality of your environment—especially if the sound is of a high quality, which RCF delivers for both background music and high-powered foreground audio. Furthermore, this speaker can reproduce frequencies of 60 Hz to 20 kHz, which is nearly full range—and quite impressive from an installation speaker with a 6″ woofer.
Smooth Installation

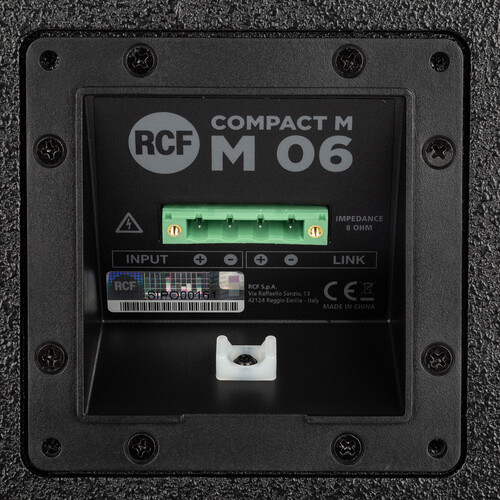

Compact M speakers stick to the functionality and style of the Italian design, always in harmony with any type of interiors. With multiple rigging points, installation time is minimal. Installation points are available on rear, top, and bottom panels. Optional mounting accessories allow using M 6 on wall or ceiling installations. The EUROBLOCK connection panel can be replaced with female Neutrik speakON connection panel in seconds, so you ostensibly have your choice of connectivity options.
| Configuration | Passive 2-Way |
| Total Power Capacity | Passive: 100 W RMS Passive: 400 W Peak |
| System Impedance | 8 Ohms |
Drivers
| HF Driver | 1 x 1.3″ / 33 mm Dome Tweeter |
| HF Voice Coil | 1″ / 25.4 mm |
| MF Driver | None |
| LF Driver | 1 x 6″ / 152.4 mm Woofer |
| LF Voice Coil | 1.5″ / 38.1 mm |
Performance
| Frequency Range | 60 Hz to 20 kHz -10 dB |
| Maximum SPL | 116 dB SPL (Peak) |
| Coverage Angle | 120° H x 80° V |
| Directivity | 7 (Directivity/Q Factor) |
| Speaker Sensitivity | Passive: 90 dB HF: 92 dB LF: 90 dB |
Connectivity
| Audio I/O | 1 x Euroblock 4-Pin Input 1 x Euroblock 4-Pin Link Output |
Signal Processing
| Crossover | 2.2 kHz |
| Phase Adjustment | None |
Physical
| Mounting | 2 x M8 4 x M6 |
| Handles | None |
| Construction Material | Plywood, Steel |
| Dimensions | 14.4 to 9.1 x 8.3″ / 365 to 232 x 211 mm |
| Weight | 15.4 lb / 7 kg |
