- 80 W RMS power handling
- 115 dB max SPL
- 70 ÷ 20000 Hz frequency range
- 120° x 80° constant directivity coverage angle
- 1 x 5″ high power woofer
- 1 x 1″ voice coil neodymium dome tweeter
- High quality plywood cabinet
- Steel front grille with clothing

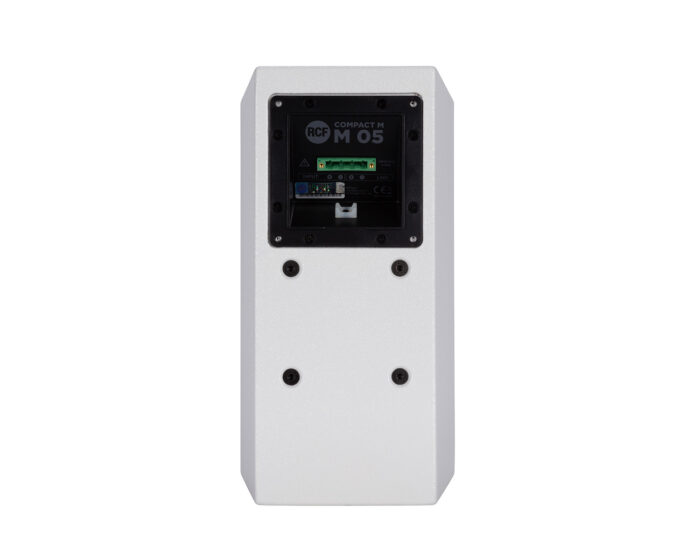

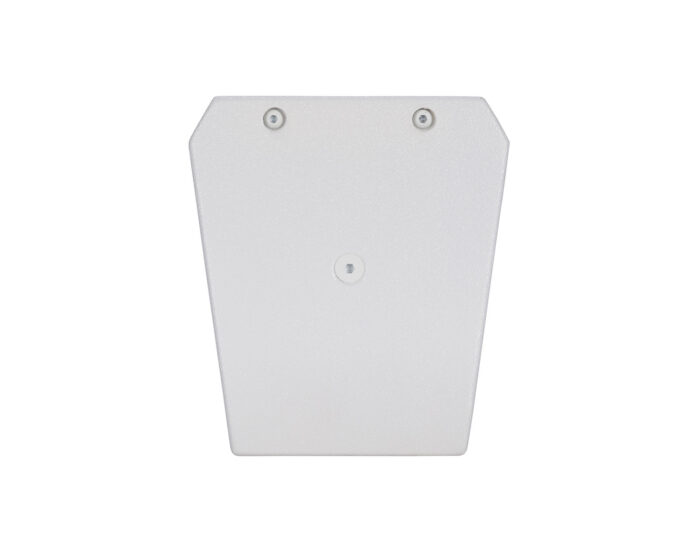

- Installation points available on rear, top and bottom panels
- 4 pole EUROBLOCK connector (audio input and parallel link output)

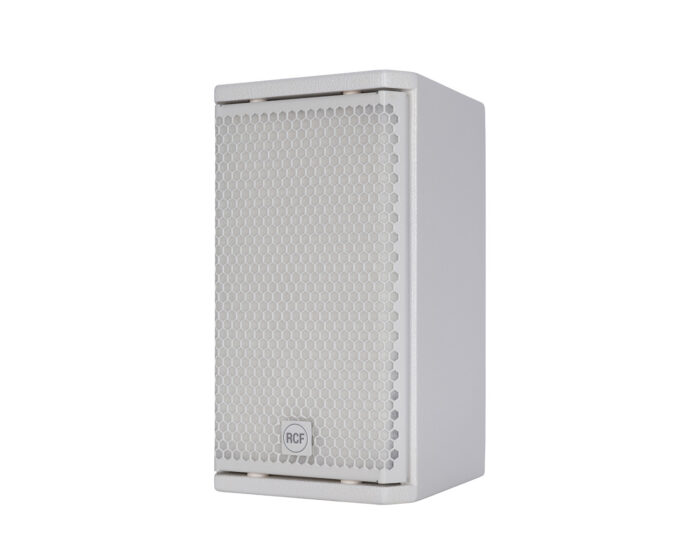

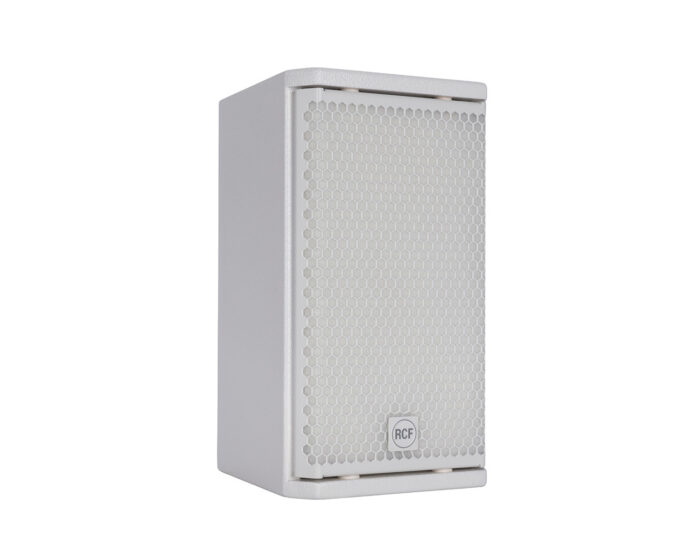

M 05 Compact 2-Way Speaker 120 x 80° 80W – White
COMPACT M 05 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 05 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided neodymium dome tweeter. The SPL level of low-distortion audio the M 05 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 05 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow the use of the M 05 on wall or ceiling installations.
Acoustical specifications
- Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
- Max SPL @ 1m: 115 dB
- Horizontal coverage angle: 120°
- Vertical coverage angle: 80°
- Directivity index Q: 7
- System Sensitivity: 89 dB
Power section
- Nominal Impedance (ohm): 8 ohm
- Power Handling: 80 W RMS
- Peak Power Handling: 320 W PEAK
- Recommended Amplifier: 160 W
- Crossover Frequencies: 2200 Hz
Transducers
- Dome Tweeter: 1.3” neo, 1.0” v.c
- Nominal Impedance (ohm): 8 ohm
- Input Power Rating: 15 W AES, 30 W PROGRAM POWER
- Sensitivity: 92 dB, 1W @ 1m
- Woofer: 5.0”, 1.2” v.c
- Nominal Impedance (ohm): 8 ohm
- Input Power Rating: 80 W AES, 160 W PROGRAM POWER
- Sensitivity: 89 dB, 1W @ 1m
Input/Output section
- Input connectors: Euroblock
- Output connectors: Euroblock
Standard compliance
- CE marking: Yes
Physical specifications
- Cabinet/Case Material: Plywood
- Hardware: 4 x M6, 2 x M8

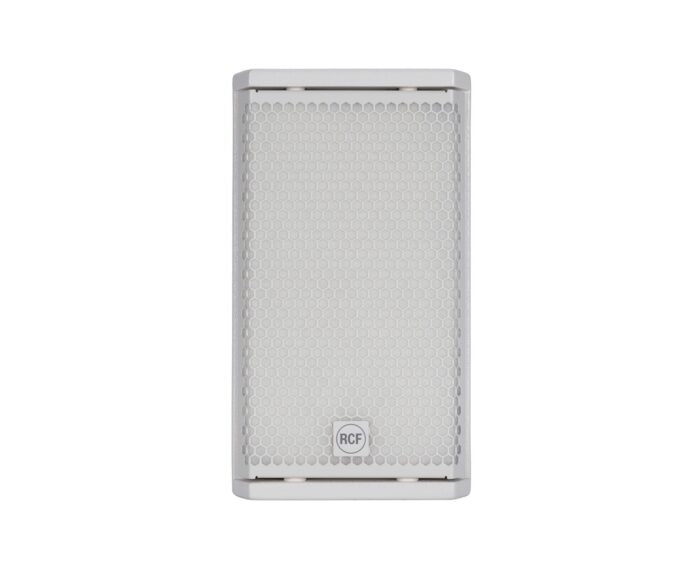

- Grille: Steel with clothing
- Colour: White- RAL 9003
Size
- Height: 303 mm / 11.93 inches
- Width: 172 mm / 6.77 inches
- Depth: 191 mm / 7.52 inches
- Weight: 4.5 kg / 9.92 lbs
Shipping information
- Package Height: 324 mm / 12.76 inches
- Package Width: 215 mm / 8.46 inches
- Package Depth: 196 mm / 7.72 inches
- Package Weight: 6 kg / 13.23 lbs
