- 130 dB Max SPL
- 800 WATT program power handling
- 60 – 20000 Hz Frequency Range
- Hi Resolution Custom RCF Precision Transducer
- Perfectly Tuned Crossover

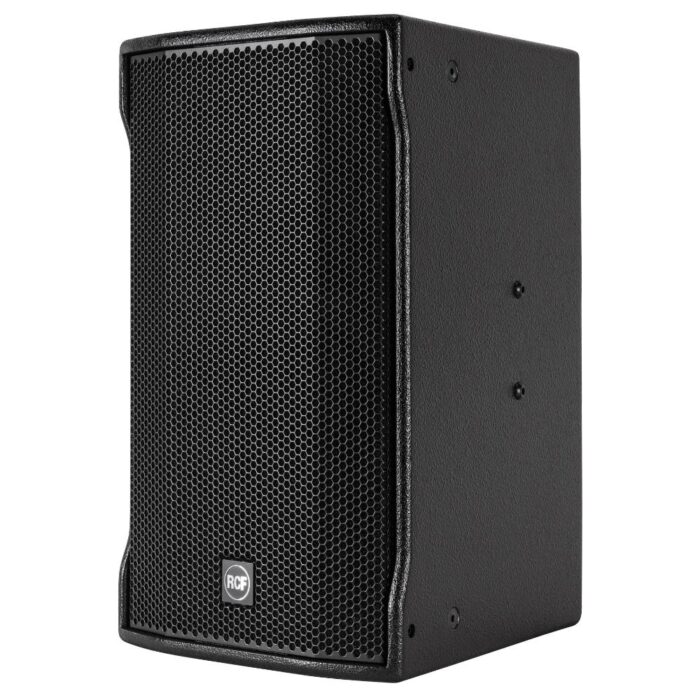

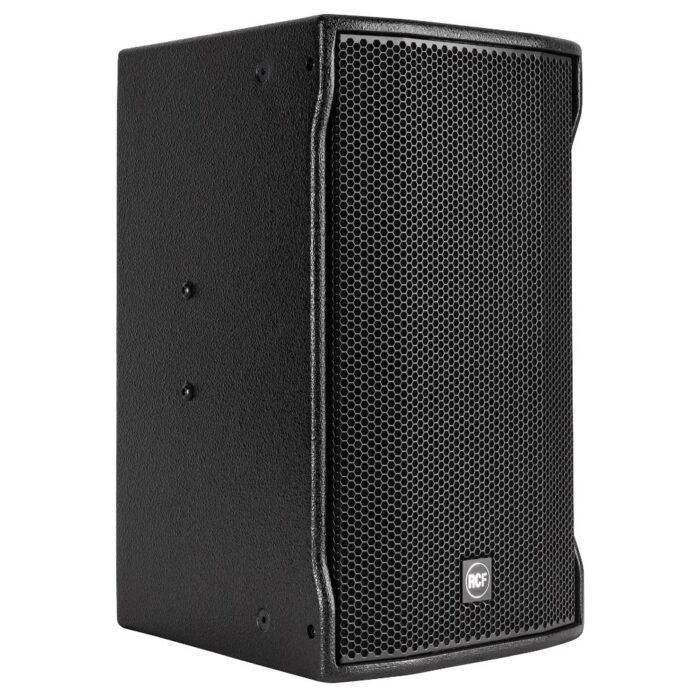

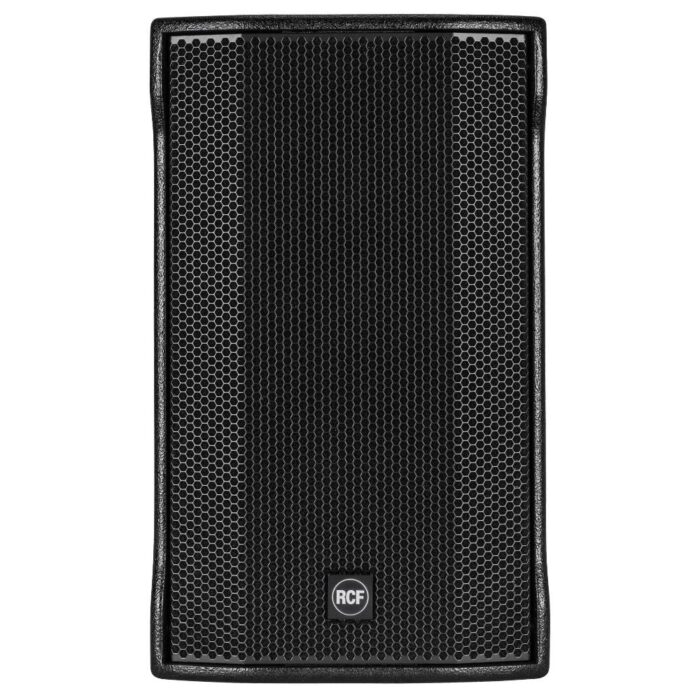

The full-range passive two-way speaker RCF C MAX 4112 has been specifically designed as club systems for entertainment, to reach the best near field quality, vocal coherence, and a stable sound pressure level even at high volumes. It features a 12” woofer and a 1” compression driver. The passive C MAX Series speakers represent a further step of the famous COMPACT Series. Thanks to the bass reflex port, perfectly tuned on the back of the cabinet, the system gives its best when installed near walls, without the need of a subwoofer. It’s perfect for KTV, Karaoke rooms, conference halls, AV installations, public areas and clubs.
SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
Frequency Response (-10dB): 60 Hz ÷ 20000 Hz
Horizontal coverage angle: 90°
Vertical coverage angle: 70°
System Sensitivity: 98 dB
POWER SECTION
Peak Power Handling: 1600 W PEAK
Recommended Amplifier: 800 W
Crossover Frequencies: 1800 Hz

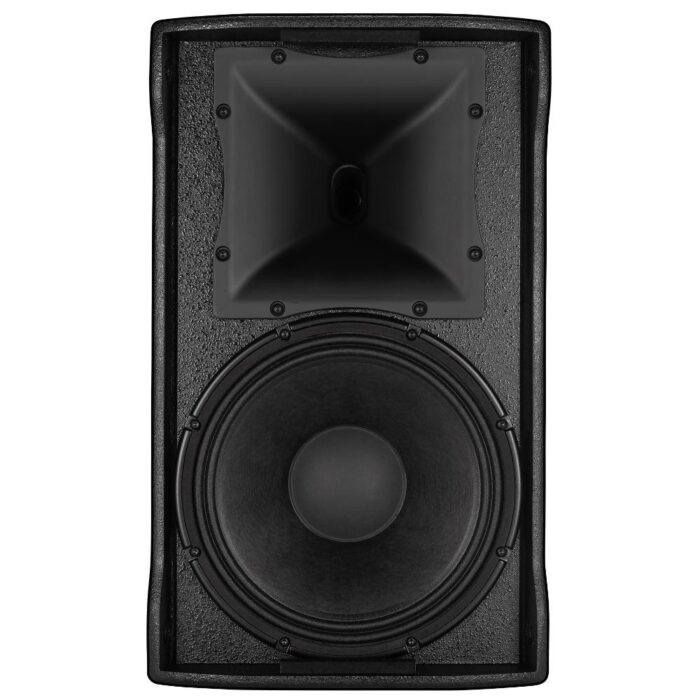

TRANSDUCERS
Compression Driver: 1 x 1.0” neo, 1.75” v.c
Woofer: 12”, 3.0” v.c

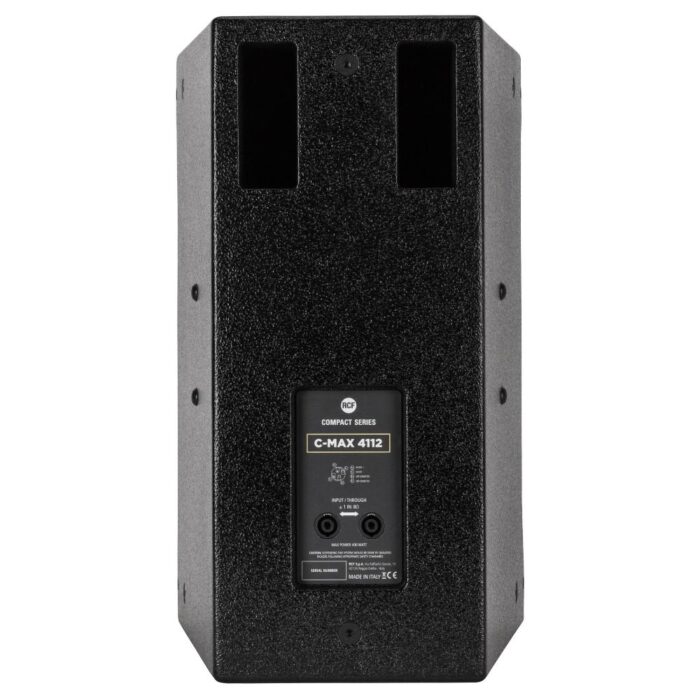

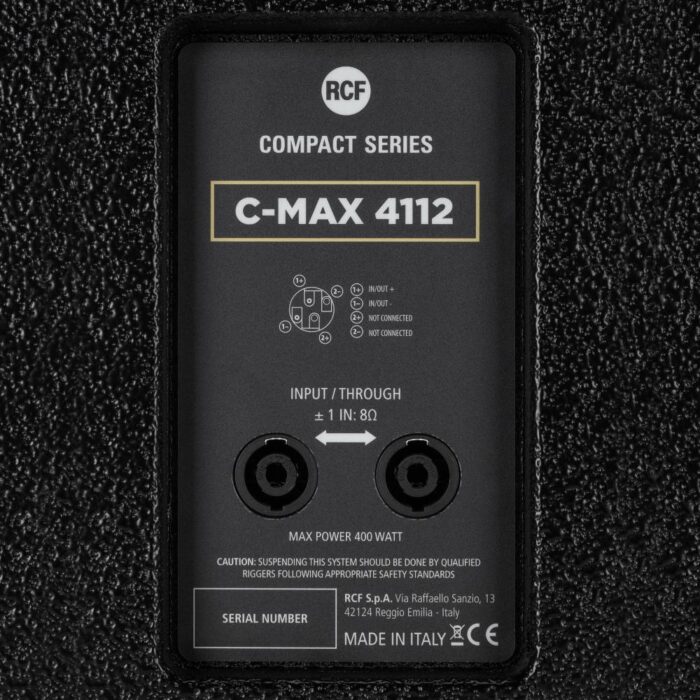

INPUT/OUTPUT SECTION
Input connectors: Speakon® NL4
Output connectors: Speakon® NL4
PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Baltic birch plywood
Color: Black
SIZE
Height: 600 mm / 23.62 inches
Width: 363 mm / 14.29 inches
Depth: 407 mm / 16.02 inches
Weight: 24.5 kg / 54.01 lbs
SHIPPING INFORMATIONS
Package Height: 675 mm / 26.57 inches
Package Width: 465 mm / 18.31 inches
Package Depth: 425 mm / 16.73 inches
Package Weight: 28 kg / 61.73 lbs
