RCF C 3108-96

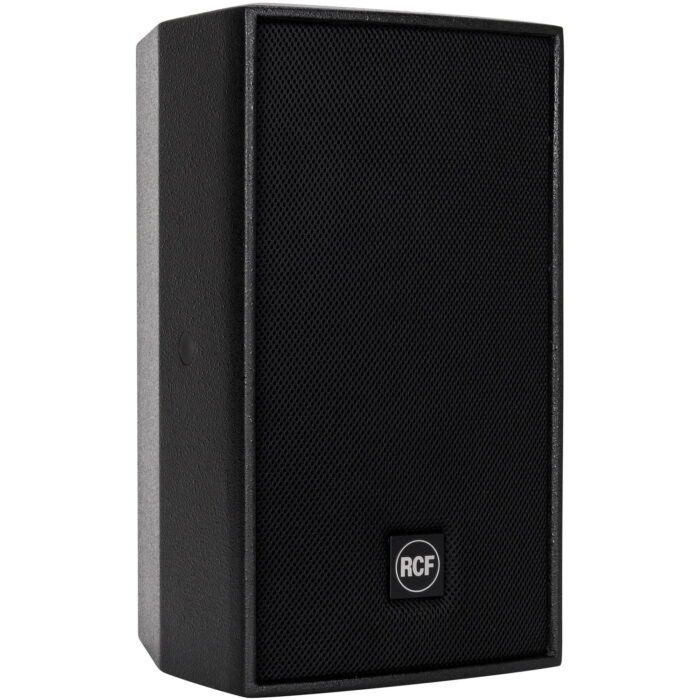

The black C3108-96 Two-Way Passive Speaker System from RCF features Constant Matching Design technology for optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity. The horn can be rotated, allowing the loudspeaker to be installed either vertically or horizontally. The high-frequency transducer in this system is a 1” compression driver with 1.5” voice coil for smooth, wide dispersion and features an 8” woofer with a 2” voice coil for low frequency signals.

The system includes a high-level crossover network that features the LICC (Low Impedance Compensated Crossover) that offers delay reduction, reduced phase shift, and superior transient response. Dynamic high-frequency driver protection is accomplished with the Active Mosfet Compression Driver Protection System (AMCDP) that complements the driver power curve.

The cabinet is made of Baltic birch and is equipped with top and bottom multiple plates for either wall or suspended mounting with chains. The steel front grille is protected with a double layer polyurethane fabric. Connections are made through two Neutrik Speakon NL4 connectors (audio input and parallel link output). It is suitable for use in permanent installations such as main reinforcement in small spaces, high-level AV playback, zone delay and fill systems, or under balcony installations.
