Display technology
DLP™
Resolution
SVGA (800×600)
Brightness
4,000 lumens
Contrast ratio
25,000:1
Native aspect ratio
4:3
Aspect ratio – compatible
16:9
Keystone correction – vertical
+/-40°
Horizontal scan rate
15.38 ~ 91.15Khz
Vertical scan rate
50 ~ 85(120 for 3D)Hz
Uniformity
75%
Screen size
0.71m ~ 7.73m (27.78″ ~ 304.4″) diagonal
Lamp info
Light source type
Lamp
Lamp watts
203
Lamp life hours (up to)
6000 (Bright), 12000 (Dynamic), 10000 (Eco), 15000 (Eco+)
Optical
Throw ratio
1.94:1 ~ 2.16:1
Projection distance (m)
1m – 12m
Zoom
1.1
Zoom type
Manual
Focal length (mm)
21.85 mm~24mm/0.86″~0.945″
Native offset
115%
Connectivity

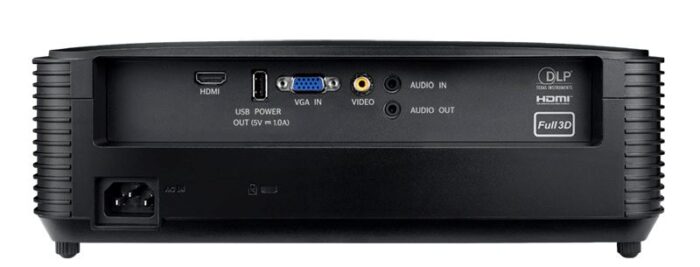

Connections
| Inputs 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Composite video, 1 x Audio 3.5mm |
| Outputs 1 x Audio 3.5mm, 1 x USB-A power 1A |
General
Noise level (typical)
27dB
Noise level (max)
29dB
PC compatibility
FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
Operating conditions
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
Remote control
Card style
Speaker count
1
Watts per speaker
10W
In the box
AC power cord
Remote control
Battery
Basic user manual
Remote control
Battery
Basic user manual
Optional wireless models
HDCast Pro, QuickCast Bundle, WHD200
Power
Power supply
100 ~ 240V, 50 ~ 60Hz
Power consumption (standby)
0.5W
Power consumption (min)
187W
Power consumption (max)
225W
Weight and dimensions
Dimensions (W x D x H) mm
316 x 244 x 108
Gross weight
3.56 kg
Net weight
3.02 kg
