- World’s first 7,500 Lumens laser professional projector with fixed lens*
- IP5X certified optical system for stable brightness output & 20,000 hours maintenance free
- Support 360-degree & portrait mode & 24/7 operations
- Powered fixed lens at 1.8x zoom range
- Support 4-corner adjustment & PIP/PBP
- Built-in blending/warping
- Full HD 3D supported
- Dimmable Brightness (down to 30%)

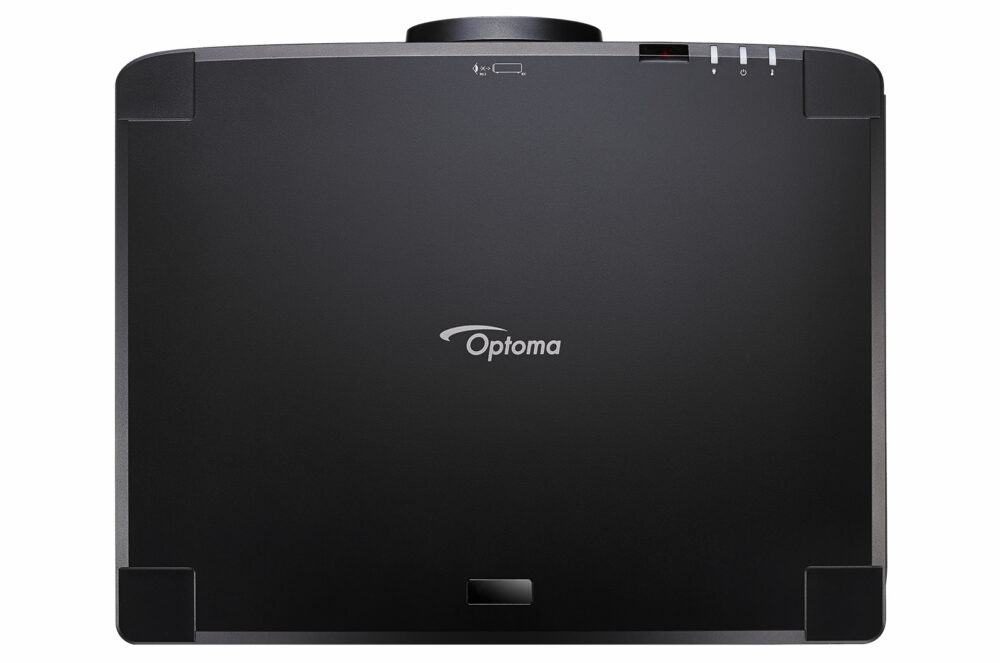

The ZU720T is the world’s first 7,500 lumens, WUXGA projector for the ProAV sector with fixed lens and support of wide 1.8 zoom.
ZU720T features Optoma’s DuraCore technology with a 20,000 hour lamp-less laser light source enclosed in an IP5X certified optical engine to ensure reliability and minimal maintenance during its lifetime resulting in low total cost of ownership. Designed to suit different installation environments, the ZU720T includes 360-degree & portrait projection, 24/7 operation capabilities, and ultra wide lens shift range.
*Comparison among all professional laser projectors in the 7,000-8,000 lumen range as of September 2020.
Optoma DuraCore Laser Technology – Brighter for longer
DuraCore
Industry leading lifetime is achieved using Optoma’s new DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design, and light source lifetime at 20,000 hours.
Airtight optical engine
Precision engineered with an IP5X Certified system, the ZU720T has an airtight engine that resists dust particles and ensures a long lasting, reliable and practically no maintenance light source of up to 20,000 hours. The ZU720T laser light source is free of mercury and environmentally friendly compared with traditional lamp-based projectors.
Advanced Thermal Design
A mixed combination of long and short heat pipes increases the heat dissipation by 10% and the fan running speed is lowered and results in quiet operation.
Optimized Cooling System
The inner components placement creates a flow field that requires min. air flow. The efficient cooling also contributes to the ZU720T’s low noise operation.
Quick start-up and shutdown
The ZU720T features quick start-up and shutdown and reaches full brightness quickly. To maximize energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.
Total cost of ownership
For demanding applications the total cost of ownership of a projector is not in the purchase cost, but in expensive maintenance and service. ProScene projectors require very little maintenance; have no user serviceable parts inside and no filters that require periodic replacement. The result is low cost, predictable service cycles, enabling planned down time to be minimized.
Ultimate Color Performance
Image quality
Where detail really matters, the full WUXGA (1920 x 1200) resolution offers 15% more pixels than 1080p. This enables unscaled Full HD video and extra detail. Optoma laser projectors have adopted DLP® micro-mirror technology which provides highly efficient bright images with high contrast, maintaining precise color accuracy and natural real-world color reproduction.
DLP® technology
DLP® technology from Texas Instruments® is widely recognized and acclaimed for its unmatched reliability and long lasting image performance. When combined with high brightness and native contrast ratios, it becomes the obvious choice for demanding applications. Independent testing has proven DLP® to be the most reliable of projector technologies. Whilst other technologies may show image quality decline after only a few thousand hours, DLP® technology can remain unchanged over hundreds of thousands of hours. Images remain accurate, and colors suffer virtually no degradation over time.
Precision optics
High quality optical elements maintain optimum sharpness and focus uniformity over the entire image. Uncompromising optical quality delivers extremely low color flare and chromatic aberration resulting in a crystal clear, high contrast image.
Installation Friendly & Flexibility
360° and portrait projection capability
Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. This projector can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.
24/7 operation
All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.
Built-in Warping & Edge Blending
User friendly PC interphase for multiple unit warping & edge blending adjustments. Massive images can be achieved within time for a cup of coffee without the need to bundle external image processing boxes, lowering the budget for complex projects. Carefully calibrated FW and gamma adjustments will provide smooth seamless blends.
4-Corner Adjustment
4-corner adjustment, Pincushion adjustments, Horizontal/Vertical keystone adjustments to fit all scenario needs.
Color matching
This projector has a color matching system, which combined with accurate measurements can create seamless blends every time.
Ultimate Control
Picture by picture / picture-in-picture
The ZU720T supports picture-by-picture and picture-in-picture. Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.
Versatile System Integration Control Protocols
Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing nearly all aspects of the ZU720T to be controlled across a network, keeping you in control, wherever you are.
Advanced Connectivity
HDBaseT
Uncompromised, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
3D Sync In & Out
Flexibility for projects with complex 3D set up to ensure the projectors and the 3D shutter glasses are in sync.
Advance Features
Constant Power Mode
There are 4 adjustable steps to control the laser power 100/80/65/50%. It means the brightness can dim to 50% of full brightness if the application requires.
Constant Luminance Mode
This mode is used when there is a need to keep certain brightness level for certain period of time.
Eco Mode
50% of original brightness.
Extreme Black
In situations where only absolute darkness is required, the ZU720T can provide a total blackout that functions like mechanical shutter.
Fixed Lens with Ultra Wide 1.8 Zoom
* If the projection distance is fixed at for example 5 meters, the projection image can range from 100~150 inches
Full lens shift range
| Display Technology | DLP |
|---|---|
| Native Resolution | WUXGA 1920 x 1200 |
| Brightness | 7,500 Lumens |
| Contrast | 1,000,000:1 |
| Light Source | Laser |
| Light Source Life Bright | 20,000 hours |
| Throw Ratio | 1.4 – 2.5 |
| Zoom Type | 1.8x manual |
| Lens Shift | ±55% Vertical, ±25% Horizontal |
| I/O Connectors | HDMI x3, USB-A x2, USB-B x1, Audio In x1, Audio Out x1, VGA In x1, 3D SYNC out x1, 3D SYNC in x1, Wired Remote x1, 12 trigger x1, HDBaseT x1, RJ45 x1, RS232 x1 |
| Keystone Correction | ±40° Vertical, ±30° Horizontal |
| Weight (Kg) | 12.7 |
| Dimensions (W x D x H) (mm) | 486 x 376 x 154 (w/o elevator feet) |
| Aspect Ratio | 16:10 Native, 16:9 and 4:3 Compatible |
| Projection Screen Size | 40”~ 300” |
| Uniformity | 85% |
| Computer Compatibility | 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×960,1280×800, 1280×768, 1024×768, 800×600 |
| Video Compatibility | [email protected]/24/25/29.97/30/50/59.94/60Hz 1080i@50/59.94/60Hz 720p@50/59.94/60Hz 576p, 480p |
| 3D Support | Full 3D |
| Horizontal Scan Rate | 15 – 91kHz |
| Vertical Scan Rate | 24 – 85Hz (120Hz for 3D) |
| Displayable Colors | 1073.4 million colors (10 bit) |
| Noise Level | 27 dB (Eco mode) |
| Power Supply | 100240V, 5060Hz, auto-switching |
| Power Consumption | Standard display mode with Constant Power Mode, Typical 530W +/- 15% @ 110VAC, Typical 510W +/- 15% @ 220VAC, Standard display mode with ECO(50%) power mode, Typical 330W +/- 15% @ 110VAC Typical 320W +/- 15% @ 220VAC |
| Lamp Type | Laser Phosphor |
| 360-operation | Yes |
| Portrait Mode | Yes |
| Conformance | CE, TUV-GS, CB |
| RoHS | RoHS and WEEE |
