- 22,000 lumens, 30,000 hours maintenance free light source
- Optoma DuraCore Laser Technology to deliver a wide color gamut while maintaining high brightness
- Support 360-degree & portrait mode & 24/7 operations
- IP5X certified optical engine to ensure stable and long lasting brightness output
- Full-range interchangeable lens (TR 0.65~10.8)
- Comprehensive 3D Support (Active/Passive)
- Built-in warping and blending
- Redundant input design to ensure constant display
- Compatible with Optoma Management Suite (OMS)

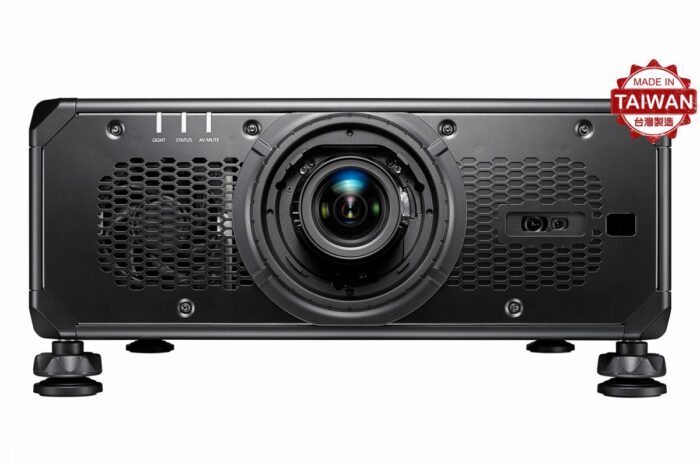

The ZU2200 is an ultra bright 22,000 lumens, 4K&HDR compatible projector for the ProAV sector. It features an industry unique DuraCore Technology laser light source design which delivers a wide color gamut while maintaining high brightness for up to 30,000 hours. Perfect for bringing outstandingly bright, vivid, accurate colors with high contrast and detailed visuals, the ZU2200 enables spectacular image quality for every professional application.
ZU2200 also encloses an IP5X certified optical engine to ensure reliability and minimal maintenance during its lifetime resulting in low total cost of ownership.
Designed to suit challenging installation environments, the ZU2200 supports 360-degree & portrait projection, 24/7 operation capabilities and 8 optional lenses ranging from TR0.65~10.8.
Ultra Bright 22,000 lumens
Utilizing Texas Instruments award winning DLP technology and Optoma’s DuraCore Laser Technology, ZU2200 delivers sharp images with stunning color reproduction at 22,000 lumens.
DuraCore
Industry leading lifetime is achieved using Optoma’s new DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design, and light source lifetime at 30,000 hours.
HDR10 compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.
Comprehensive 3D support
ZU2200 supports not only Active 3D but also Passive 3D, enabling effective 3D solutions for operators to reduce total cost of ownership.
*3D Glasses, 3D Player, 3D Modulator, and Metal Screen not included.
Redundant Input with fast switch support
The unique signal input detection design provides instant source switching when signal failure is detected. This feature ensures images never fail to display in critical places such as central control rooms, projection mapping scenarios or stage sets.
*Supported input: HDMI 1, HDMI 2, DisplayPort, and HDBaseT
Airtight optical engine
The ZU2200 has been independently tested and certified with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments, the dust resistance was tested by an independent laboratory in accordance with ICE standard 60529 and was certified with an IP5X rating- airtight sealed optical engine.
Modular Design & Eyebolt Holes for Maintenance/Installation Efficiency
Modularized cover component and quick release screws makes routine maintenance easier than ever. One-size cooling fan is easy to swap out in case of malfunction.
Wide Operating Temperature Range
With the robust and efficient cooling design, ZU2200 is able to withstand a maximum ambient operating temperature of 50°C (122°F).
Lens Options
Compatible with Optoma Management Suite (OMS™)
Optoma Management Suite (OMS)™ is an intuitive display management solution, designed to streamline operations by monitoring, diagnosing and controlling audio visual displays via a local area network from a single platform and location. Users can also broadcast or schedule alerts and messages across displays and remotely program and schedule device operating hours, reducing energy consumption and lowering operating costs.
Warping
4-corner adjustment, Pincushion adjustments, Horizontal/Vertical keystone adjustments to fit all scenario needs.
Color matching
This projector has a color matching system, which combined with accurate measurements can create seamless blends every time.
Built-in Warping & Edge Blending
User friendly PC interphase for multiple unit warping & edge blending adjustments. Massive images can be achieved within time for a cup of coffee without the need to bundle external image processing boxes, lowering the budget for complex projects.
Carefully calibrated FW and gamma adjustments will provide smooth seamless blends.
360° and portrait projection capability
Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or floor. The projector can also be placed in portrait mode for applications such as digital signage or for tall thin projection areas.
24/7 operation
All ProScene projectors are designed for continuous 24/7 operation. Only industry proven components are used to ensure superior reliability.
Quick start-up and shutdown
The ZU2200 features quick start-up and shutdown and reaches full brightness quickly. To maximize energy saving it also includes a ‘pause projection’ feature where the light source can be completely shut off. Unlike conventional lamp based projectors, the laser- light source requires minimal cool-down time.
Total cost of ownership
For demanding applications the total cost of ownership of a projector is not in the purchase cost, but in expensive maintenance and service. ProScene projectors require very little maintenance; have no user serviceable parts inside and no filters that require periodic replacement. The result is low cost, predictable service cycles, enabling planned down time to be minimized.
AV Mute Function
In situations where only absolute darkness is required, the ZU2200 can provide a total blackout that functions like mechanical shutter.
Picture by picture / picture-in-picture
The ZU2200 supports picture-by-picture and picture-in-picture. Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.
Versatile System Integration Control Protocols
Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported, allowing nearly all aspects of the ZU2200 to be controlled across a network, keeping you in control, wherever you are.
3G-SDI
3G-SDI (Serial Digital Interface) is used for transmission of uncompressed, unencrypted digital video signals at a data rate of 2.97Gbit/s. The bitrate can support 1080p/60p Full HD video via one single coaxial cable up to 100 meters, which reduces the set-up complexity in live events or staging shows.
HDBaseT
Uncompromised, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
3D Sync In & Out
Flexibility for projects with complex 3D set up to ensure the projectors and the 3D shutter glasses are in sync.
| Display Technology | DLP |
|---|---|
| Native Resolution | WUXGA 1920 x 1200 |
| Brightness | 22,000 Lumens |
| Contrast | 2,000,000:1 |
| Light Source | Laser |
| Light Source Life | 30,000 hours (Eco mode) |
| Lens Options | A11 (0.65~0.75:1), A18 (0.84~1.02:1), A19 (1.02~1.36:1), A20 (1.2~1.5:1), A21 (1.5~2.0:1), A22 (2.0~4.0:1), A23 (4.0~7.2:1), A27 (7.2~10.8:1) |
| Throw Ratio | 0.65 ~ 10.8 (lens dependent) |
| Zoom Type | Motorized |
| Lens Shift | Dependent on lens | powered |

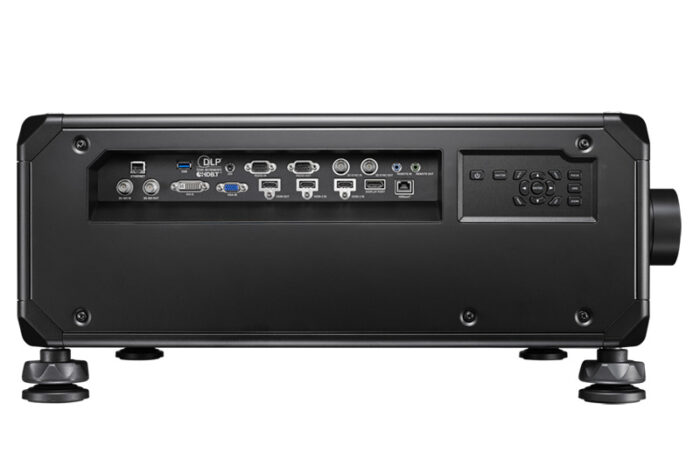

| I/O Connectors | 2 x HDMI 2.0b, 1 x DP (DisplayPort 1.2a), 1 x DVI-D, 1 x VGA In (D-Sub 15pin), 1 x HDBaseT, 1 x 3D SYNC In, 1 x 3G-SDI (Support 100m long cable); 1 x HDMI Out (Compliant with HDMI 2.0b), 1 x 3D SYNC Out, 1 x 12V trigger (phone Jack), 1 x 3G SDI Out; 2 x RS232C (PC Control) in /out, 1 x RJ45 (LAN), 2 x IR Receiver (On the Front side and Top side), 2 x Wire Remote in/out, 1 x USB type A |
| Keystone Correction | ±20° Vertical, +20° Horizontal |
| Weight (Kg) | 54 |
| Dimensions (W x D x H) (mm) | 650 x 682 x 300.9 (w/o lens, with feet); 650 x 682 x 250.9 (w/o lens, w/o feet) |
| Aspect Ratio | 16:10 Native, 16:9 and 4:3 Compatible |
| Projection Screen Size | 50″ – 1,000″ |
| Projection Distance | 0.67~232.62m (Dependent on lens) |
| Computer Compatibility | WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible |
| Video Compatibility | PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p) |
| 3D Support | Full 3D, Active 3D, Passive 3D |
| Displayable Colors | 1073.4 million colors (10 bit) |
| Noise Level | 40dB |
| Power Supply | 100-240V, 50-60Hz |
| Power Consumption | 600W – 1260W @110V AC, 590W – 1200W @220V AC |
| Operating Temperature | Operating: 0 ~ 50 °C, Storage: -10°C ~ 60°C |
| 360-operation | Yes |
| Portrait Mode | Yes |
| RoHS | RoHS and WEEE |
