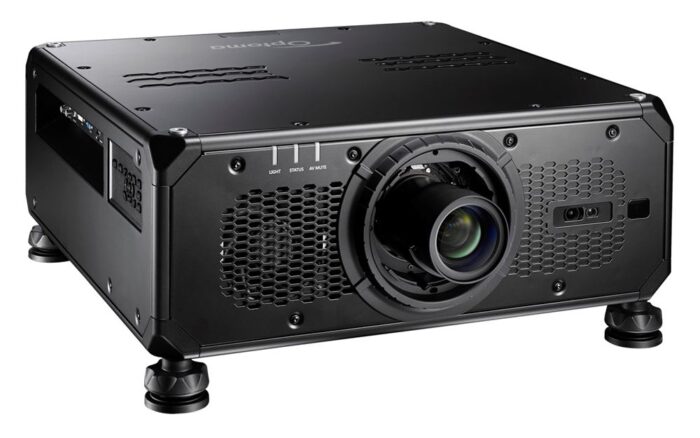

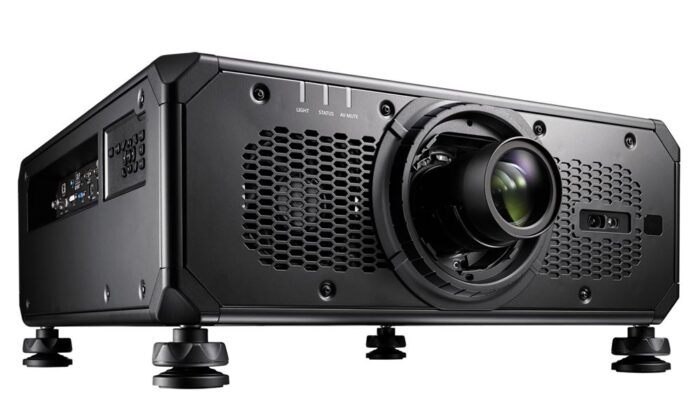

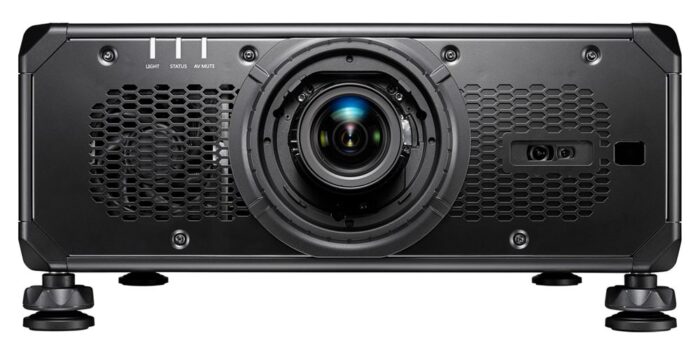

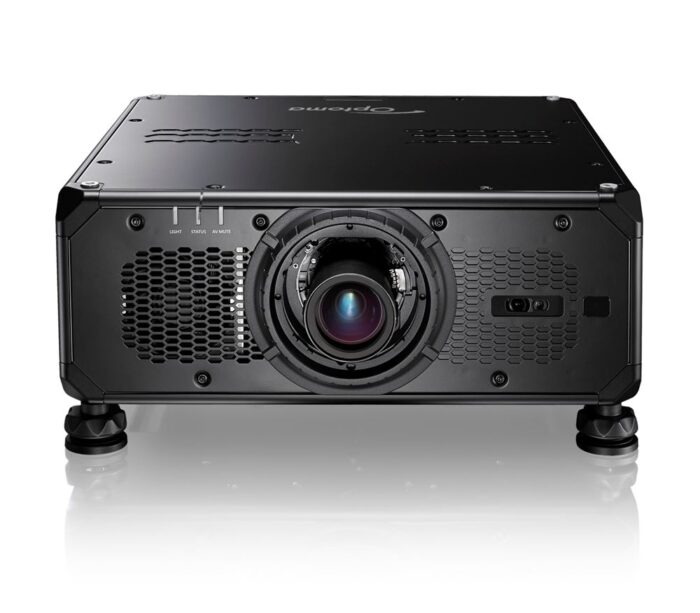

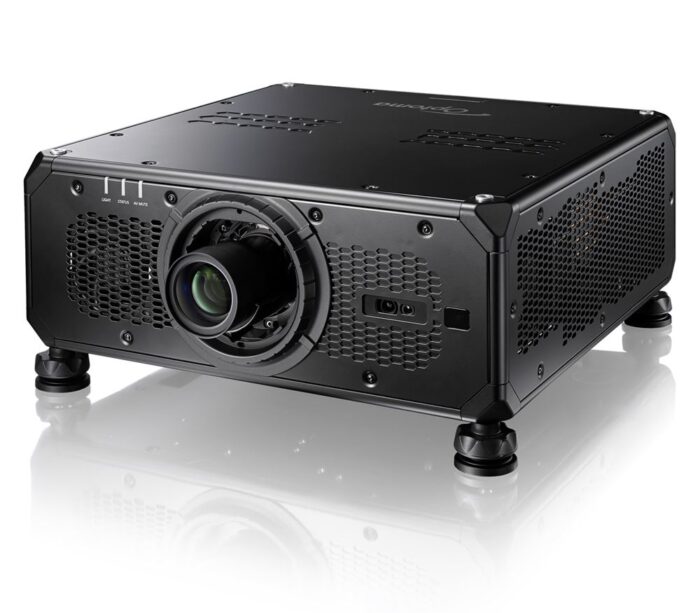

Ultra bright professional WUXGA laser projector

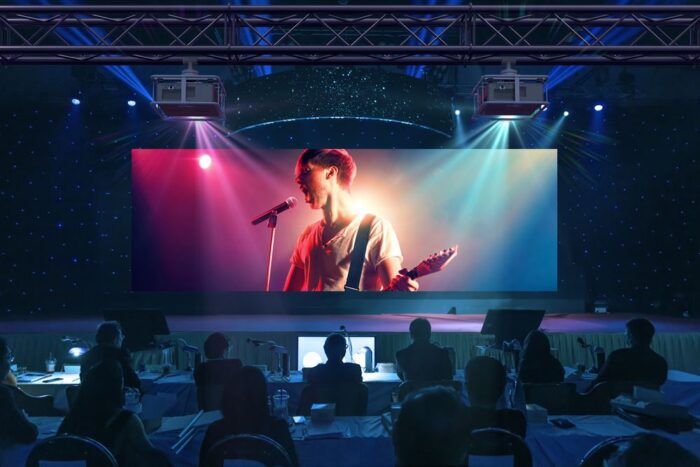

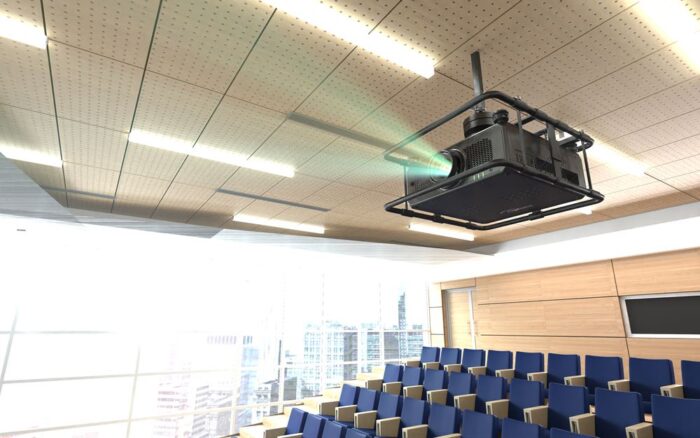

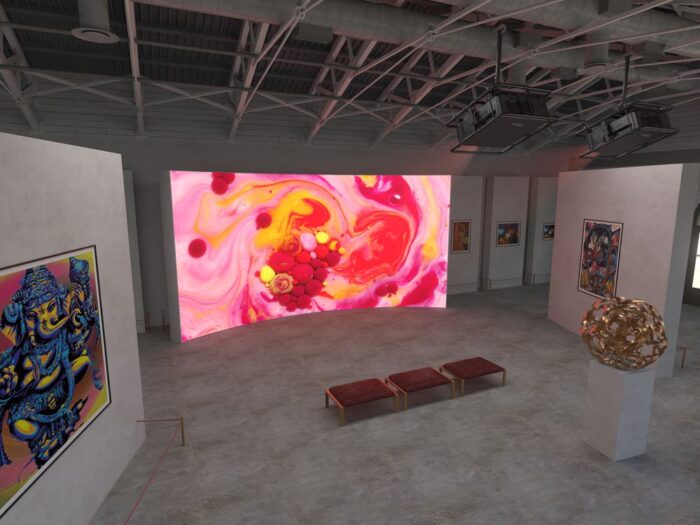

The high brightness ZU1900 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. Part of Optoma’s Ultra Bright Series, this projector offers incredibly high brightness of 19,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations.
As part of the Optoma DuraCore laser line up, the Ultra Bright Series high-performance projectors feature 4K HDR compatibility, pure engine video processing and colour matching to produce visually striking, lifelike images with exceptional detail and high colour accuracy.
Strong reliability is at the core of the Ultra Bright Series projectors, with 24/7 operation capabilities, up to 30,000 hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122 degrees Fahrenheit / 50 degrees Celsius. With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and failsafe redundancy mode for instant source switching, the Ultra Bright Series projectors offer a solution for intricate installations, including multi-projector and dome projection applications.
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Auto Colour Uniformity
Providing a quick, hassle free and more convenient setup; You can enjoy acurate colour uniformity in a matter of seconds with the super fast camera based auto colour uniformity feature.
*The auto colour uniformity feature is compatible with image sizes up to 300″
Auto focus (AF)
Providing a quick, hassle free and more convenient setup; You can enjoy a pin sharp image in a matter of seconds with the super fast camera based auto focus.
*Auto focus is compatible with image sizes up to 300″
Redundant input with fast switching
The unique signal input detection function provides instant source switching in the event of the failure of the signal source device. This feature ensures an image never fails to display in mission critical installations such as control rooms, live events or other similar scenarios.
Passive 3D compatibility
Passive 3D is now available on single chip DLP laser phosphor projectors. Thanks to the high efficiency light output, these models enable effective 3D solutions for operators to reduce total cost of ownership.
Integrated warping and edge blending processor
Integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost & complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.
*Compatible multi output graphics card with overlap function is required.
HDR compatible
Capable of receiving and displaying HDR meta data, Optoma HDR compatible projectors allow you to see far more detail and texture. Objects look more solid and life like and the extra detail creates a greater sense of depth. It’s like looking through a window.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 meters/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

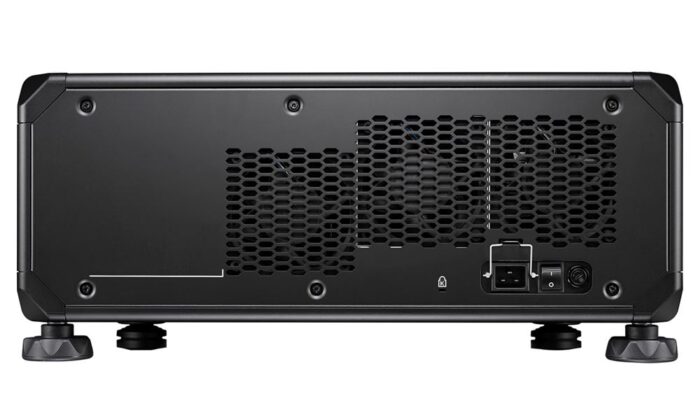

Metal chassis with modular design
The modular metal chassis panels and quick release screws make routine maintenance easier than ever before.
Amazing colour
Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
Colour Management System (CMS)
Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings for optimal precision.
Brightness matching
A valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine tuned to give the same brightness levels; important, especially when side by side.
Constant power
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life – or anywhere inbetween
Constant brightness
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations
True AV mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Extreme Black
Extreme black enables the laser diodes to completly turn off when a full black image frame is detected. This feature is perfect for situations where a total image blackout is required.
Full lens shift
Simplify installation with full lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.
Picture by picture picture-in-picture
Signals can be delivered simultaneously via the HDMI and DVI ports, for a PbP or PiP display from two digital sources – perfect for video-conferencing and other collaborative applications.
360 projection*
Images can be projected over a 360° range* along the projector’s horizontal axis.
*For more information please refer to the user manual
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Wide temperature operating range
Suitable for various operating environments, the robust and efficient cooling design enable the projectors to withstand an ambient operating temperature range of 0~50°C
IP5X Dust resistant optical engine
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
Customise your projector
Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems
PJLink
PJLink protocol is incorporated into the projector allowing for easy installation with PJLink compatible control systems.
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.

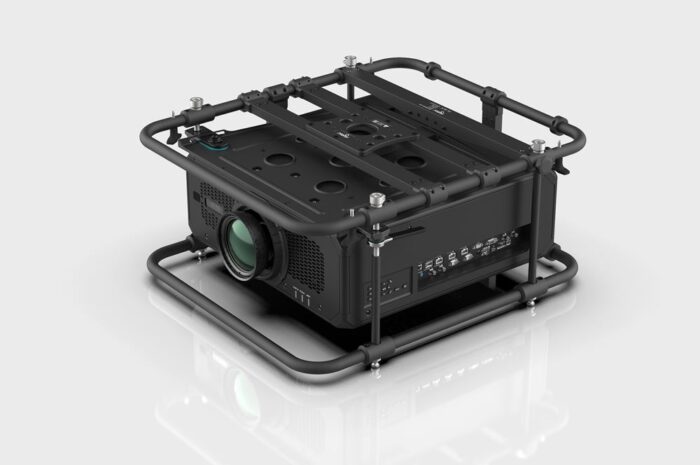

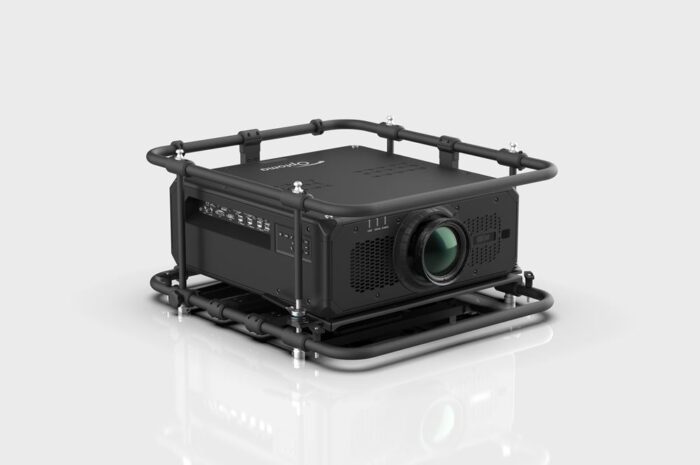

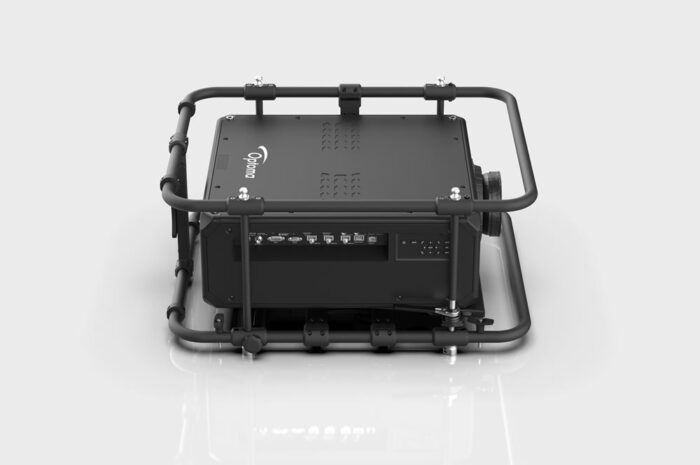

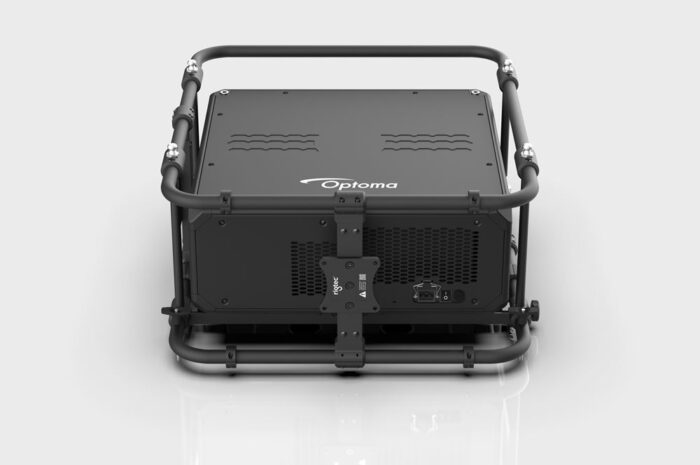

Flying/Stacking frames available from Rigtec
Flying/Stacking frames and various accesories are available for this model from Rigtec
Display/image-
Display technology – DLP
Resolution – WUXGA (1920×1200)
Brightness – 19,000 lumens
ANSI brightness – 16,000
Contrast ratio – 2,000,000:1
Native aspect ratio – 16:10
Aspect ratio – compatible – 16:9,16:10
Screen size – Dependent on lens
Lamp info-
Light source type – DuraCore Laser
LASER life – 30,000 hours
Optical-
Throw ratio – Dependent on lens
Projection distance (m) – Dependent on lens
Lens options – BX-CTA11, 0.65~0.75:1
BX-CTA18, 0.84~1.02:1
BX-CTA19, 1.02~1.36:1
BX-CTA20, 1.2~1.5:1
BX-CTA21, 1.5~2.0:1
BX-CTA22, 2.0~4.0:1
BX-CTA23, 4.0~7.2:1
BX-CTA27, 7.2~10.8:1
Connectivity-

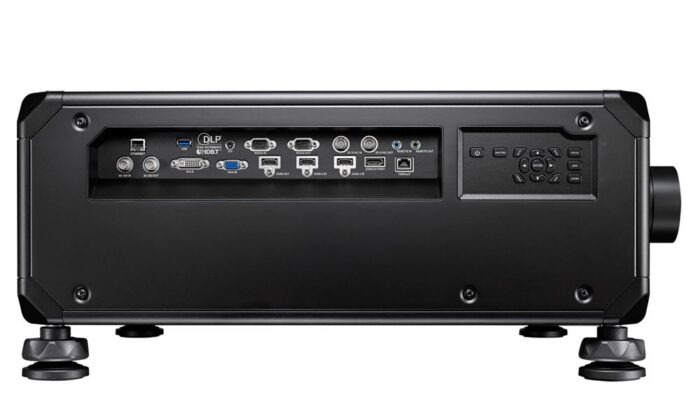

Connections – Inputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI
Outputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI, 1 x 3G-SDI
Control 1 x RJ45, 1 x USB-A service, 1 x 12V trigger
LAN – wireless networking – No
General-
Noise level (typical) – 36dB
Noise level (max) – 38dB
3D – Full 3D
IP rating – TBC
OSD / display languages – 12 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish
24/7 operation – Yes
360° operation – Yes
Operating conditions – Operating: 10~85%RH, non-condensing. Storage: 5~90%RH, non-condensing

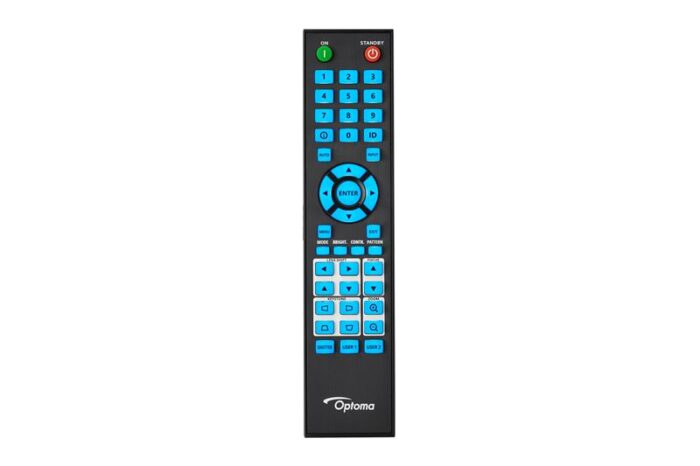

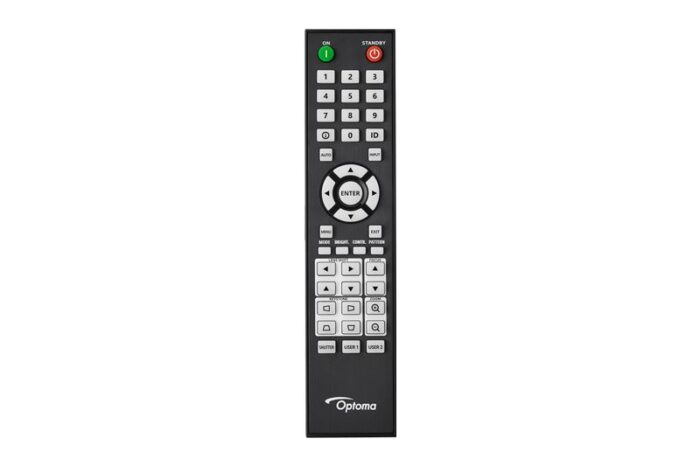

Remote control – Backlit ProAV remote
Networking-
LAN – display – Yes
LAN – wireless networking – No
LAN – Yes
Power-
Power supply – AC 100–240 V @ 50/60 Hz
Power consumption (standby) – 0.5WW
Power consumption (min) – 460W
Power consumption (max) – 1,000W
Weight and dimensions-
Dimensions (W x D x H) mm – 650 x 682 x 300.86
Gross weight – 62.5 kg
Net weight – 50 kg
