All-in-one content playback, warping and edge blending solution

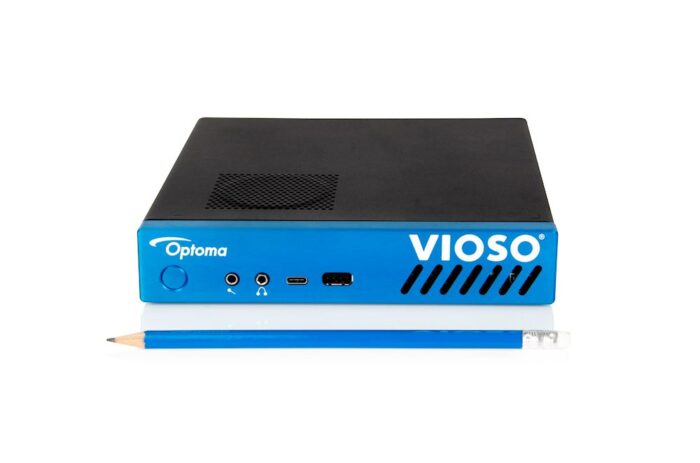

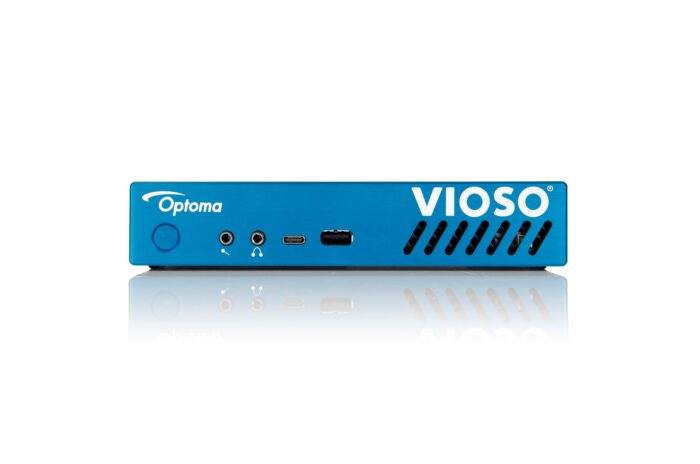

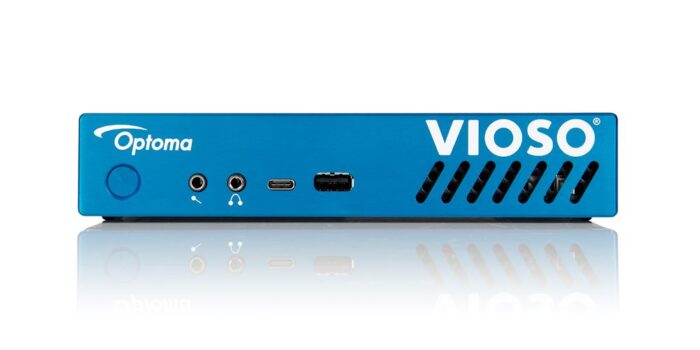

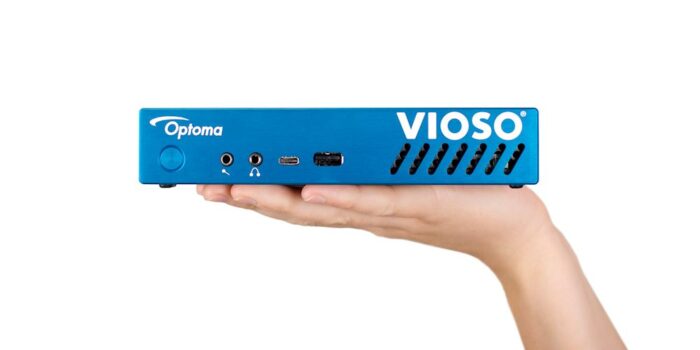

The Nano has a smaller footprint than an A4 sheet of paper, but incorporates a highly powerful feature set including Intel i5 processor and NVIDIA QUADRO graphics. It is ideal for a multi-projector installation where powerful edge-blending, warping and content playback are required from one compact package.
The Optoma Nano supports the use of a simple USB camera for auto-blending of projectors using the famous patented VIOSO auto-alignment technology. For more advanced setups, IP network cameras that provide greater flexibility are optionally available.
The Nano features mini-display port output connectors, adapters are available from 3rd party providers and are not included as standard.
Specification
General-
Dimensions (W x D x H) mm – 180.3 x 182.9 x 35.6
Power supply – 100~240v 1.5A 50~60hz
Connections – Inputs 1 x Mic 3.5mm

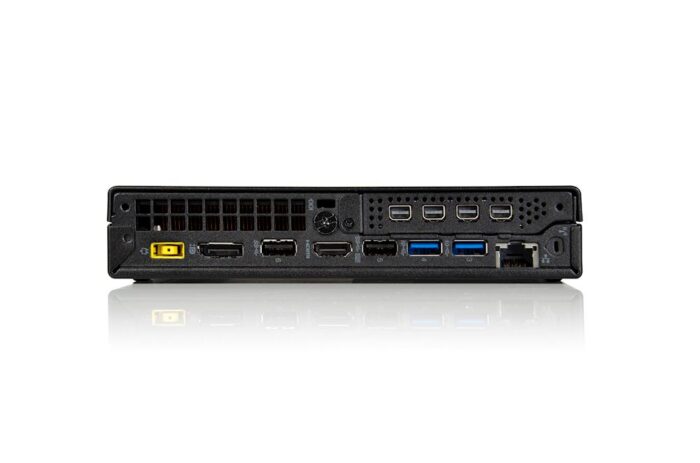

Outputs 4 x Mini DisplayPort, 1 x DisplayPort, 1 x HDMI, 1 x Audio 3.5mm
Control 1 x RJ45, 1 x USB-C, 5 x USB-A
In the box – Optoma Nano, Carry case, Power Adapter

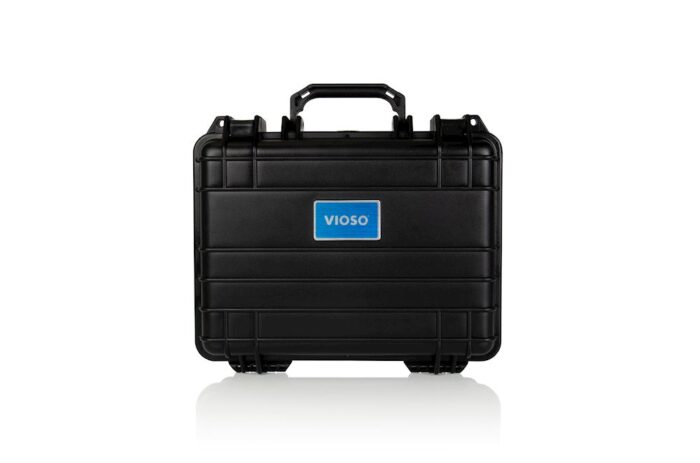

Flight case dimensions – 302 x 301 x 120mm
Net weight – 1.3 kg
Gross weight – 3.8 kg
System-
Processor – Intel Core i5 (8. Gen.) 8500T 2.1 GHz, 6 cores
Memory – 8GB DDR4 2400 MHz
Operating system – Windows 10 Pro 64
GPU – Intel UHD Graphics 630 (for monitoring) NVIDIA Quadro P620 (for projectors)
Storage – 256 GB M.2-SSD, PCIe
Security – Kensington Lock
