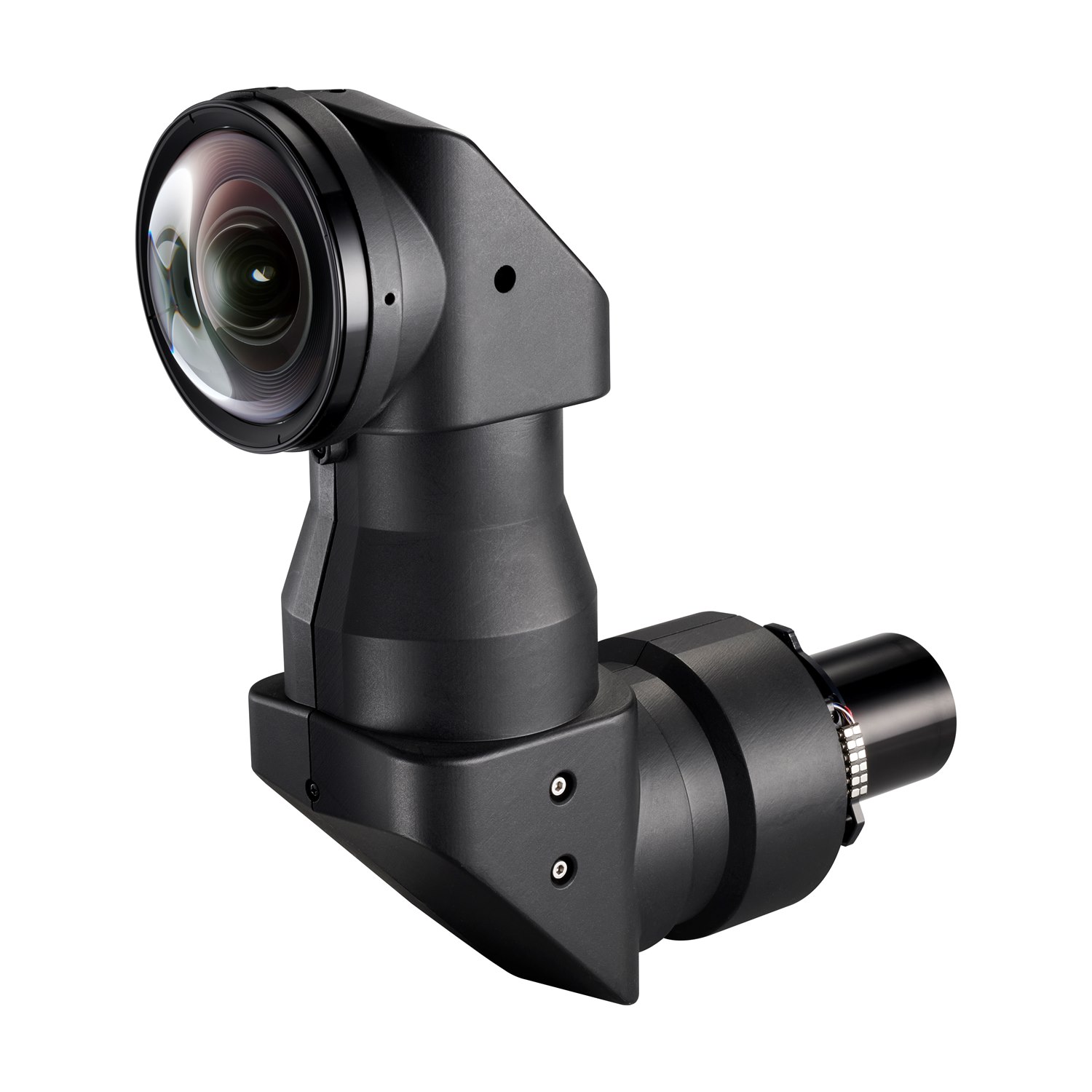

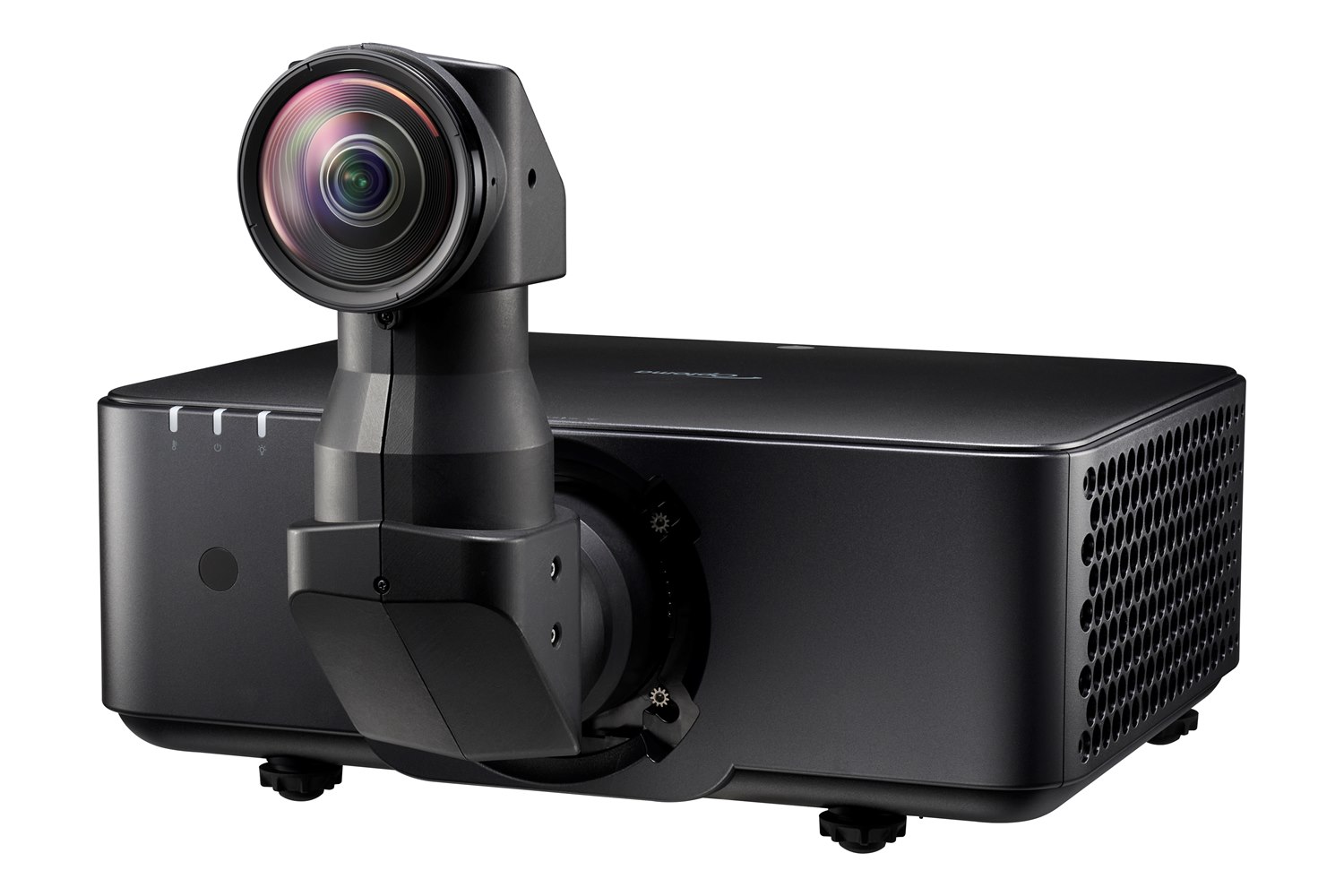

Immersive projection with the BX-CTA28 ultra short throw lens, delivering sharp images and zero offset.
Perfect for edge blending and is ideal for installations with restricted placement where every pixel counts.
The ultra short throw ratio of 0.34 ~ 0.37:1 lens can produce an image size of 100 ~ 400″ (optical) 80~1000″ (mechanical).
General
| Dimensions (W x D x H) mm |
112 x 336.3 x 340.16
|
| Net weight |
4 kg
|
| Gross weight |
6.5 kg
|
Lens
| Throw ratio (min) |
0.34
|
| Throw ratio (max) |
0.37
|
| Min throw distance |
0.37
|
| Max throw distance |
3.98
|
| f-stop (min) |
2.2
|
| f-stop (max) |
2.23
|
| Focal length |
6 – 6.54mm
|
| Min screen size |
80
|
| Max screen size |
400
|
| Zoom type |
Powered
|
| Zoom |
1.08
|
| Motorised lens |
Yes
|
| Lens shift – vertical |
60%
|
| Lens shift – horizontal |
25%
|
