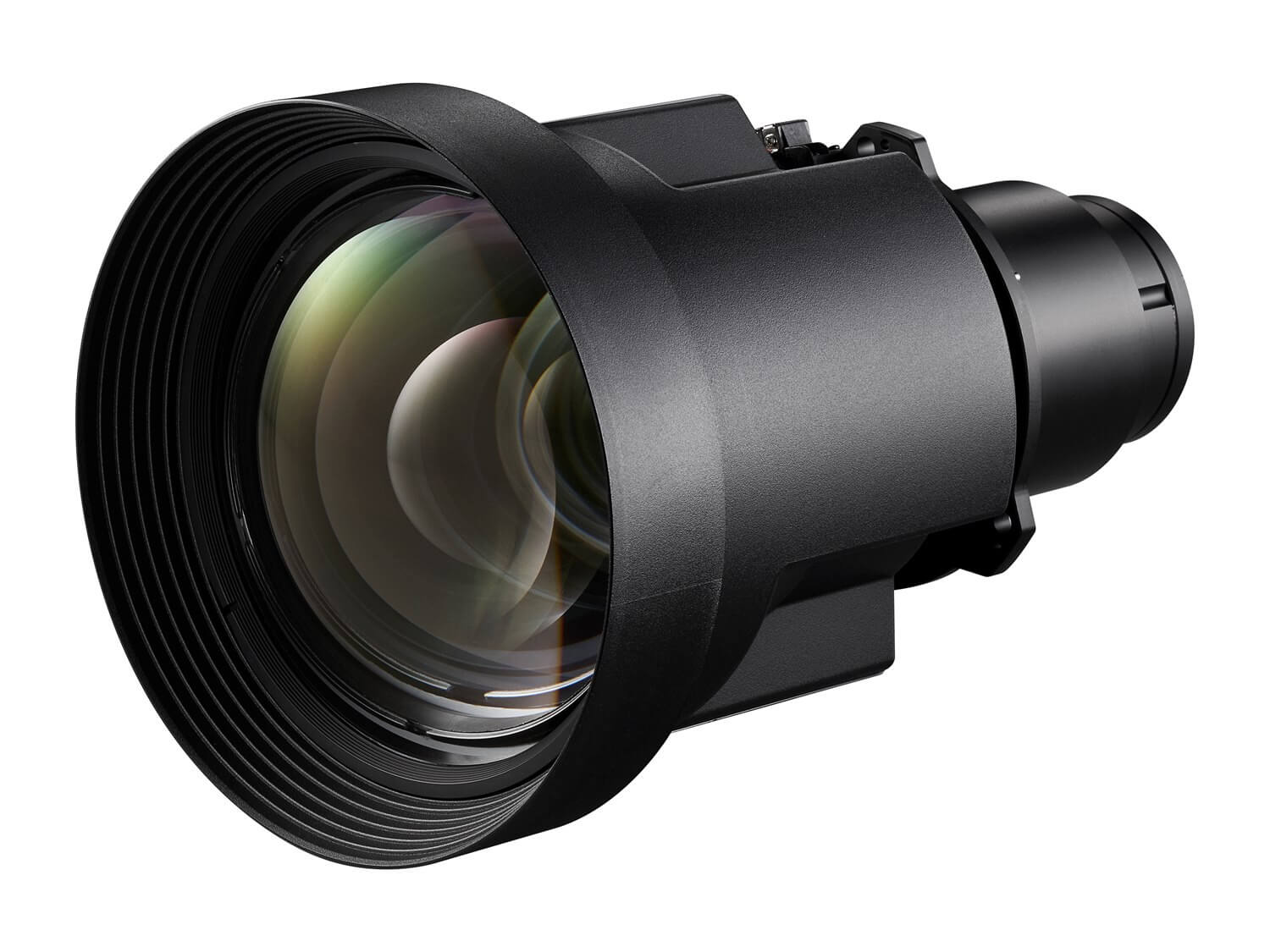

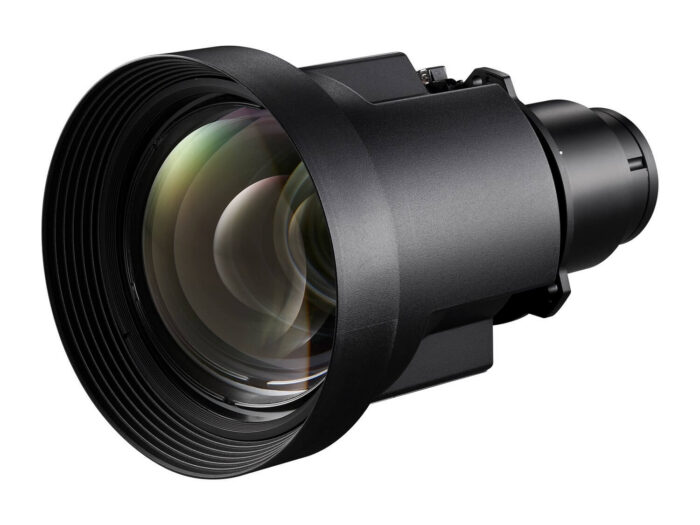

The BX-CTA08 standard throw lens zoom lens is ideal for rental installations or permanent install applications within the entertainment or museum sectors.
This lens has a throw ratio of 1.25 ~ 2:1 and can produce an image size of 80 ~ 300″
With the ability to store 5 lens shift positions, this lens is perfect for multiple screen environments.
General
| Dimensions (W x D x H) mm |
138 x 216.92 x 138
|
| Net weight |
1.9 kg
|
| Gross weight |
2.4 kg
|
Lens
| Throw ratio (min) |
1.25
|
| Throw ratio (max) |
2
|
| Min throw distance |
1.35
|
| Max throw distance |
21.54
|
| f-stop (min) |
2.03
|
| f-stop (max) |
2.36
|
| Focal length |
22.1 – 35.5mm
|
| Min screen size |
80
|
| Max screen size |
300
|
| Zoom type |
Motorised
|
| Zoom |
1.6
|
| Motorised lens |
Yes
|
| Lens shift – vertical |
55%
|
| Lens shift – horizontal |
25%
|
