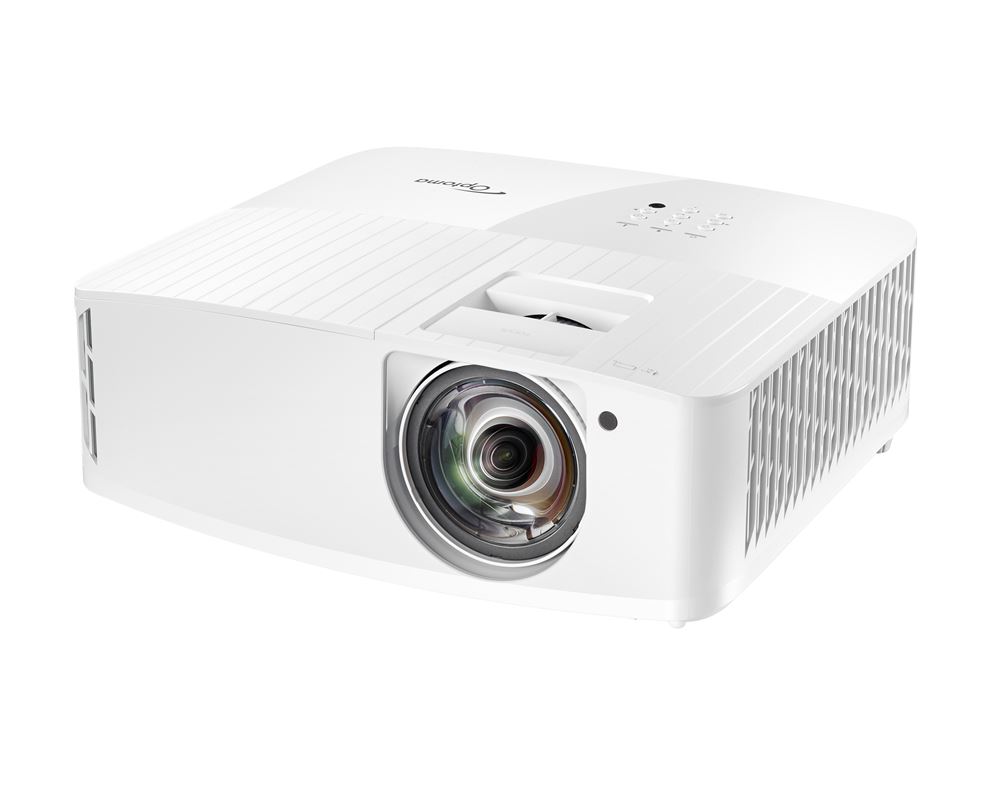

Discover the short throw version of the 4K400x, for when you want a big screen in a smaller space.
Future proof your classroom or meeting room with this high brightness True 4K UHD short throw projector. The 4K400STx delivers rich visuals in any environment even when total ambient light control is not possible.

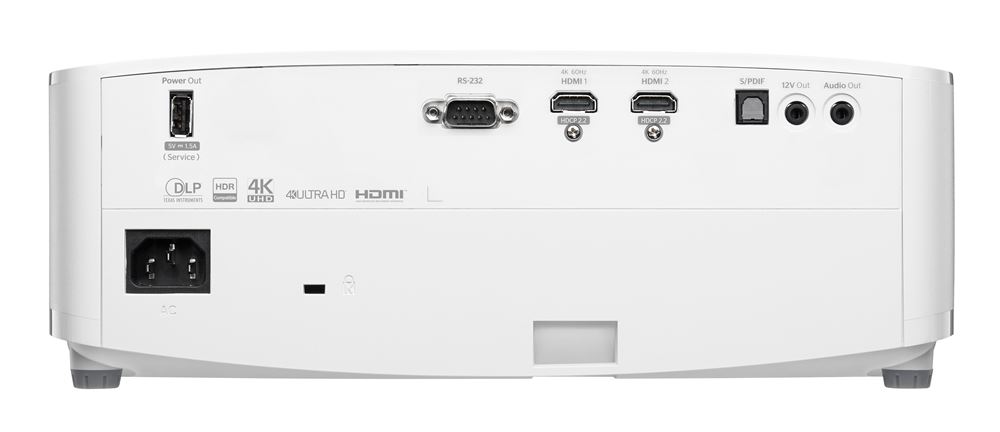

This projector boasts two HDMI ports, audio connections, USB to power 5V devices, 12V trigger and an RS232 to integrate into your existing control solution.
In addition, enjoy 1080p in 240Hz with 4.2ms input lag when connected to a PC.
Specifications:
Display/image
| Display technology |
DLP®
|
| Resolution |
UHD (3840×2160)
|
| Brightness |
4,000 lumens
|
| Contrast ratio |
1,000,000:1
|
| Native aspect ratio |
16:9
|
| Aspect ratio – compatible |
4:3
|
| Keystone correction – horizontal |
+/-40°
|
| Keystone correction – vertical |
+/-40°
|
| Horizontal scan rate |
31 ~ 135Khz
|
| Vertical scan rate |
24 ~ 120Hz
|
| Uniformity |
80%
|
| Screen size |
0.93m ~ 7.63m (36.43″ ~ 300.53″) diagonal
|
Lamp info
| Light source type |
Lamp
|
| Lamp watts |
240
|
| Lamp life hours (up to) |
4000 (Bright), 15000 (Dynamic), 10000 (Eco)
|
Optical
| Throw ratio |
0.5:1
|
| Projection distance (m) |
0.4m – 3.3m
|
| Zoom |
1
|
| Zoom type |
Fixed
|
| Focal length (mm) |
7.51mm
|
| Lens shift |
Vertical +0%
|
| Native offset |
116%
|
Connectivity
| Connections |
|
General
| Noise level (min) |
24dB
|
| Noise level (max) |
28dB
|
| PC compatibility |
UHD, WQHD, WUXGA, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
|
| 2D compatibility |
480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz), 2160p(50/60Hz)
|
| 3D compatibility |
Frame-pack: 1080p24, 720p50 / 60
|
| 3D |
Full 3D
|
| Security |
Security bar, Kensington Lock, Password protected interface
|
| OSD / display languages |
9 languages: English, French, German, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
|
| Operating conditions |
5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%
|

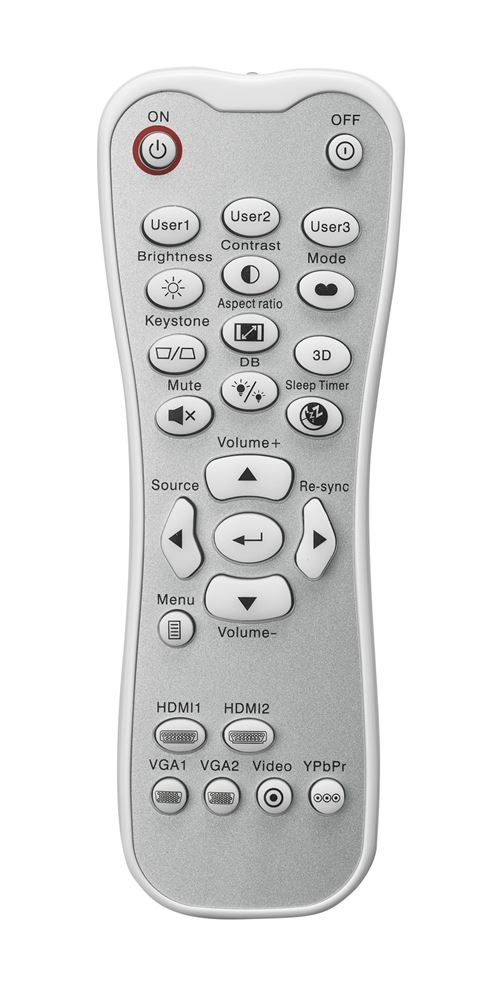

| Remote control |
Backlit home remote
|
| Speaker count |
1
|
| Watts per speaker |
10W
|
| In the box |
AC power cord
Remote control 2x AAA batteries Basic user manual |
| Input lag |
4.00ms
|
Power
| Power supply |
100 ~ 240V, 50 ~ 60Hz
|
| Power consumption (standby) |
0.5W
|
| Power consumption (min) |
220W
|
| Power consumption (max) |
320W
|
Weight and dimensions
| Dimensions (W x D x H) mm |
315 x 270 x 118
|
| Gross weight |
4.68 kg
|
| Net weight |
3.98 kg
|
