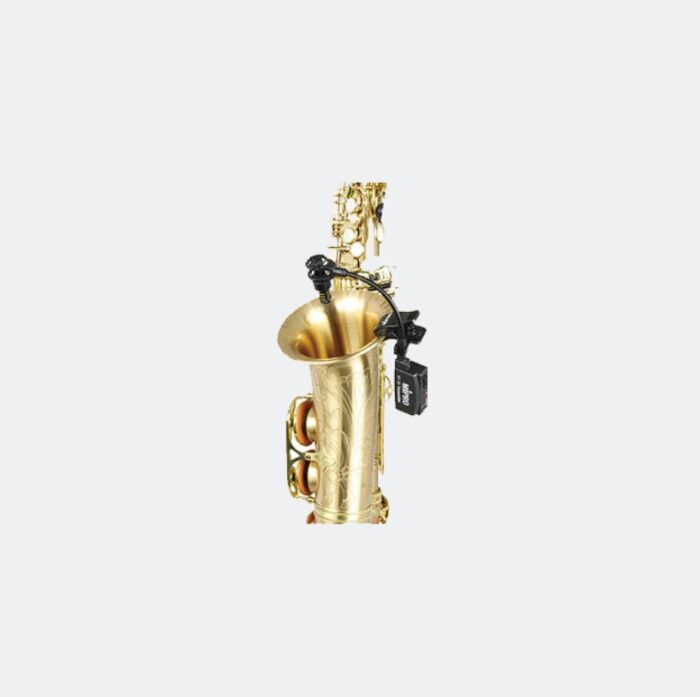

The ST-32 wireless saxophone and wind instrument microphone was developed in collaboration with professional musicians and specially designed for the completely wireless pickup of saxophones and similar wind instruments. The vibration-resistant gooseneck adapter and the sophisticated interchangeable capsule system enable quick exchange and use of different microphone capsules. The ST-32 is easy and quick to install, it is extremely user-friendly and prevents scratches on the instrument surface due to its special installation method. The strategic position on the instrument enables precise sound pick-up while reducing grip and punch noises.
Characteristics:
- Professional saxophone and wind instrument microphone in a wireless complete set
- Cardioid
- Intelligent interchangeable capsule system with 3 different microphone capsules
- Set consists of 1 x saxophone and wind instrument microphone (ST-32) including built-in transmitter: 1 x saxophone clip (SH-32); 1 x microphone capsule MU-16
- Ideal for instrumental applications; completely wireless solution
Technical Specifications:
- Model: ST-32S
- Converter principle: Electret capacitor
- Polar pattern: MU-16 (kidney); optional: MU-10 (bullet); MU-20 (hypercardioid)
- Transmission range: 40 ~ 20,000 Hz
- Bandwidth: 24 MHz (center gap 10 MHz)
- Frequency range: 620-644 MHz (6A); 644-668 MHz (6B); 716-740 MHz (7B); 740-764 MHz (7C); 823-832 MHz (8AD) registration-free (middle gap)
- Tuner procedure: PLL synthesized
- Synchronization: ACT Sync (Automatic Channel Targeting)
- Transmit power: 30 mW
- Auxiliary broadcast: <-55dBc
- Nominal stroke: <± 40kHz
- Batteries: Permanently integrated lithium ion battery
- Operating time: Up to 6 hours
- Casing: plastic
- Dimensions (wxhxd): 57 x 28 x 20 mm
- Weight: Approx. 38 g incl.battery
