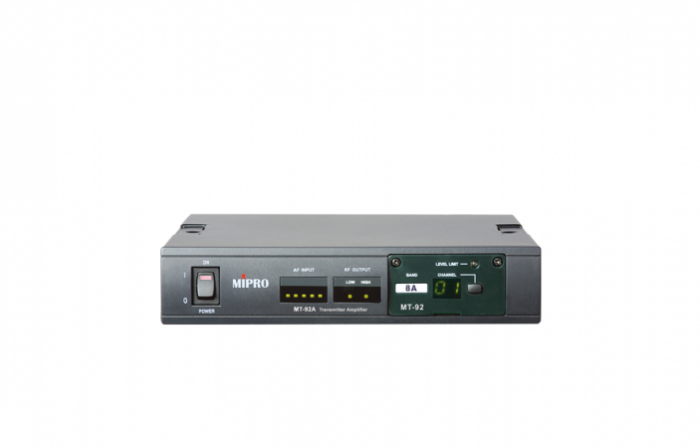

- EIA standard 1/2 U. The MT-92A transmits the output signals of microphones, instruments and other audio equipment. It presets 16 channels, switchable high (< 500 mW) and low power (< 100 mW), switchable Mic/Line input level, and supplies 48 V phantom power for condenser microphones. It is used to pair with the MR-90B and the ACT Series analog receivers for long-distance wireless transmission.
| Model | MT-92A |
|---|---|
| Name | Analog Interlinking Transmitter |
| Frequency Range & Modulation Type | UHF 506 ~ 934 MHz. FM modulation (country dependent). |
| RF Output Power | Low: < 100 mW, High: < 500 mW (country dependent). |
| Receivers | MR-90B, ACT Series analog receivers and MA Series portable PA systems. |
| Adaptor | XLR & Ø 6.3 mm combo jack |
| Power Supply | 12 ~ 15 V DC |
| Dimensions | 210 × 44 × 206 mm (W×H×D) |
| Weight | Approx.1.1 kg |
| Note | Refer to the actual product in the event of product discrepancy. |
