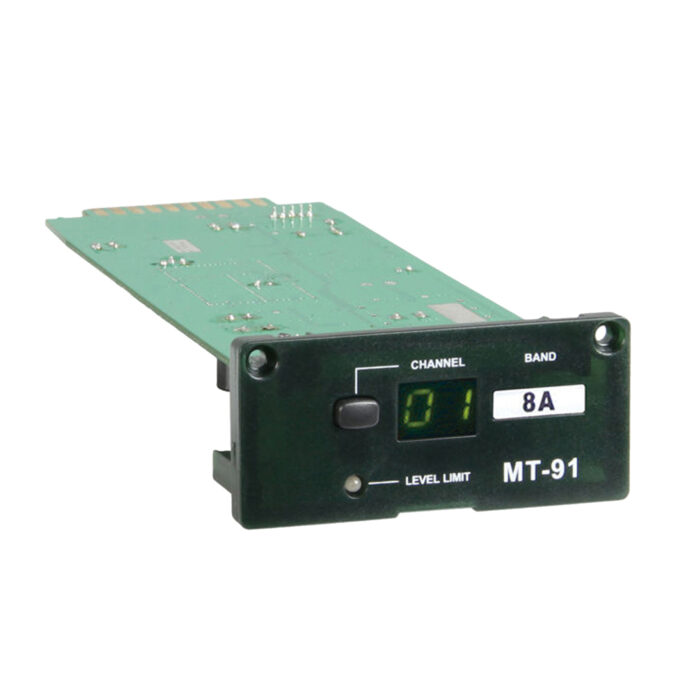

Professional transmitter, UHF in module.
The MT-91 can wirelessly transmit signals to all MRM receiver modules or fixed receivers. This allows multiple active MA series speakers to work on a wireless network at the same time.
The MT / MTM modules are designed specifically for mobile use with Mipro’s MA series loudspeakers.
The MT-91 transmitter module can transmit radio signals to MRM receiver modules or stationary receivers, allowing multiple MA Series speakers to be networked together.
The MT-91 is specifically designed for networking the MA-505 with other MA speakers or ACT receivers.
“Plug & Play” transmission module (UHF) for insertion into the MA-505
Up to 16 pre-programmed UHF frequencies
Transmitter power 10mW / 100mW switchable
Volume Control
LED with channel display
PLL synthesizer technology
| Model | MT-91 |
| Bandwidth | 24 MHz (center gap 10 MHz) |
| Frequency range | |
| 620-644 MHz (6A) | |
| 644-668 MHz (6B) | |
| 716-740MHz (7B) | |
| 740-764 MHz (7C) | |
| 823-832 MHz (8 A-D) registration-free center gap | |
| Tuner procedure | PLL Synthesized |
| Transmission power | 10mW / 100mW switchable |
| Spurious Emissions | <-45dBm |
| Display | LED |
| Dimensions (WxHxD) | 75 x 35 x 165mm |
| mass | Approximately 85gr |
