Set for alto saxophone with MT24GE transmitter set and MR24 pedal receiver
1. Innovative Design

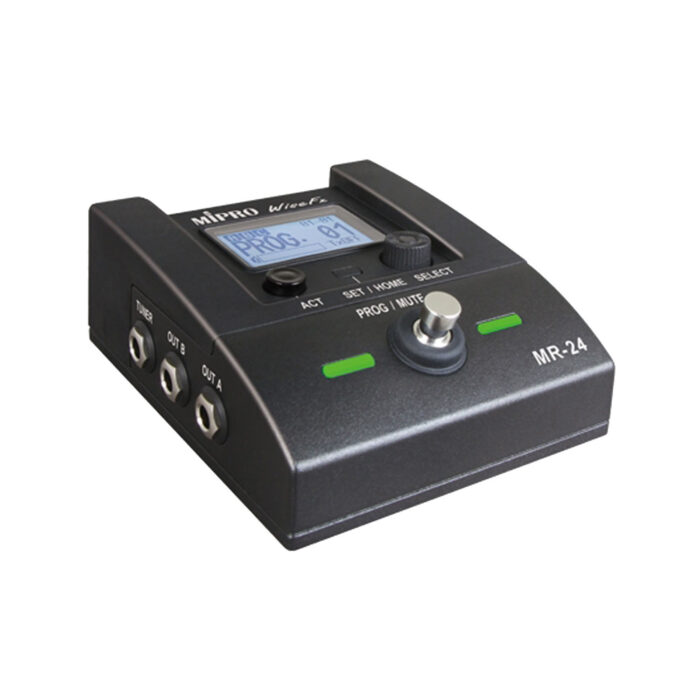

The MR-24 ISM band wireless pedal receivers are designed for musical instruments. The panel is equipped with a graphic LCD screen displaying various parameters. Paired with MIPRO’s ISM band transmitters, it receives the audio signal picked up from the instrument microphones on any acoustic or electric instrument or directly from an instrument’s pickup which is transmitted through the transmitter, and modifies the tone effects with various preset functions to satisfy the players’ preference. By stepping on the footswitch, the signal can be transmitted to one or more amplifiers.
The MR-24 receiver integrates digital wireless transmission technology with the musicians’ requirements. With its rugged metal case, built-in antenna and ergonomic footswitch for easy and quick set-up by the musicians, it’s ideal for personal studio and live stage applications.
The MR-24 receiver has 32 user-programmable parameters for setting up Channel and ID, Cable Tone, Acoustic Response, Anti-Feedback, Gain, Output, Phase and Color. Each setting can be switched by stepping on the footswitch.
The MR-24 has dynamic range > 118 dB, T.H.D. < 0.1%, wide frequency response 20 Hz ~ 20 kHz and ultra-low noise floor. It applies advanced DSP and an exclusive algorithm for digital processing for natural sound reproduction.
Two Ø 6.3 mm Phone Jacks and one output XLR connector can be connected to multiple effects. Each output can be switched to muting or output. One Tuner-Out can be connected to the tuner for pitch adjustment.
2. Most Advanced Built-in Digital Control Interface
User-friendly Digital Control Interface
32 user programs: (1) Anti-Feedback (2) Acoustic Response (3) Cable Tone (4) Gain (5) Phase (6) Channel and ID (7) Output (8) Color (9) Rename
One switch conversion between electric and traditional instrument.
Two unbalanced Ø 6.3 mm outputs, one balanced XLR output and one Tuner output.
Programmable presets ensure easy and quick selection among multi-effects and different amplifiers.
MIPRO’s DSP adaptive tracking algorithm for optimal reception, enhanced receiving range and signal stability. Auto-Scan function helps avoid interference from Wi-Fi and 2.4 GHz communication products and overcomes the defects of other 2.4 GHz products.
Electric Instrument Digital Control Interface
0 ~ 30 meters Cable Tone adjustment ensures superior tonal quality.
20 Hz ~ 20 kHz wide frequency response. Eliminates the defects of analog system or cable.
Programmable gain setting ensures the same volume output between multiple electric instruments.
Acoustic Instrument Digital Control Interface
Proprietary Anti-Feedback and Acoustic Response characteristics modify the signal to ensure a premium sound.
Anti-Feedback and Acoustic Response presets allow easy selection of multiple instruments.
Programmable presets solve the complex operations caused by different resonance, loops and volume conditions.
Compatible with MIPRO’s guitar, saxophone, wind instruments, violin, viola and cello microphones for quick and easy change of multiple instruments when playing on stage.
Worldwide operation in license-free 2.4 GHz ISM band avoids the interference and telecom regulations in the UHF band.
Proprietary 3D diversity technology and 64 ID setting effectively avoid interference from Wi-Fi and 2.4 GHz communication products which rivals the similar products of other brands.
True digital wireless system prevents distortion caused by an analog system, providing an accurate reproduction of a musical instrument’s sound.
Sturdy metal construction, large graphic LCD screen and easy to use footswitch.
High-sensitivity built-in antenna with specific structure designed to prevent accidental breakage.
Uses 9~12V DC power supply with input auto tip + or -, convenient to string with other effects.
Balanced output jack with ground lift switch for PA system connection eliminates electrical noise.
Micro SD Card Slot for user programming and firmware updates.
The circuit design and features are compatible with the MIPRO ACT-2400 Series.
Receiver
Frequency Range ISM 2.4 GHz (2,400 ~ 2,483.5 MHz)
Channel Set-up ACT sync
Audio Sampling 24-bit / 44.1 kHz Rate
Frequency Response 20 Hz ~ 20 kHz
Latency < 4 ms
S/N Ratio > 118 dB (A)
T.H.D 0.1 % @ 1 kHz
Sensitivity -95 dBm
Receiving Mode True Diversity Receiving
Display 32 × 55 mm (VA) Graphic LCD, Color LED Lamp × 2
Audio Outputs Ø 6.3 mm Phone Jack × 3, XLR × 1
Switches Footswitch × 1, Ground Lift Switch × 1
Edit/Home Switch × 1, ACT Sync Switch × 1
Rotate Switch × 1, Power Switch × 1
Interface Micro SD Card Slot × 1
Power Supply DC 9 ~ 12V / 0.3A
Dimensions (W×H×D) 130 × 50 × 110 mm / 5.1 × 2.0 × 4.3 ”
Net Weight Approx. 850 g / 30 oz
Environmental Temperature -10~ +60 ?
Transmitter
RF Output Power 2 mW / 10 mW switchable (country dependent)
Max. Audio Input 6.5 dBV
Battery Meter 4-level green/red LED display
Impedance Approx. 1.0 M ?
Dimensions (W×H×D) 84 × 35 × 29 mm / 3.3 × 1.4 × 1.1 ”
Net Weight Approx. 61 g / 2.2 oz
Battery ICR 18500 lithium battery
