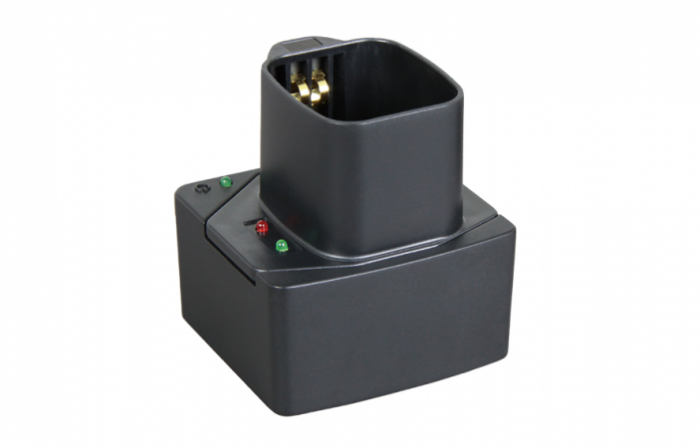

- The MP-8T is an intelligent single-slot charging station providing efficient and safe charging with constant voltage and current limiting, and a reverse polarity protection circuit to prevent charging errors. A red/green LED indicator shows charging status. The LED does not glow to indicate there’s no battery inside the TA-80. It is designed to charge the TA-80 transmitter.
| Model | MP-8T |
|---|---|
| Name | One-slot Charging Station |
| Input Voltage Range | DC 5V / 1A |
| Battery | ICR 18500 3.7 V Li-ion battery |
| Charge Current | Approx. 500 mA constant current |
| Charge Method | Terminated by 20% max. current |
| Current Consumption | 550 mA / 5 V |
| Note | Refer to the actual product in the event of product discrepancy. |
