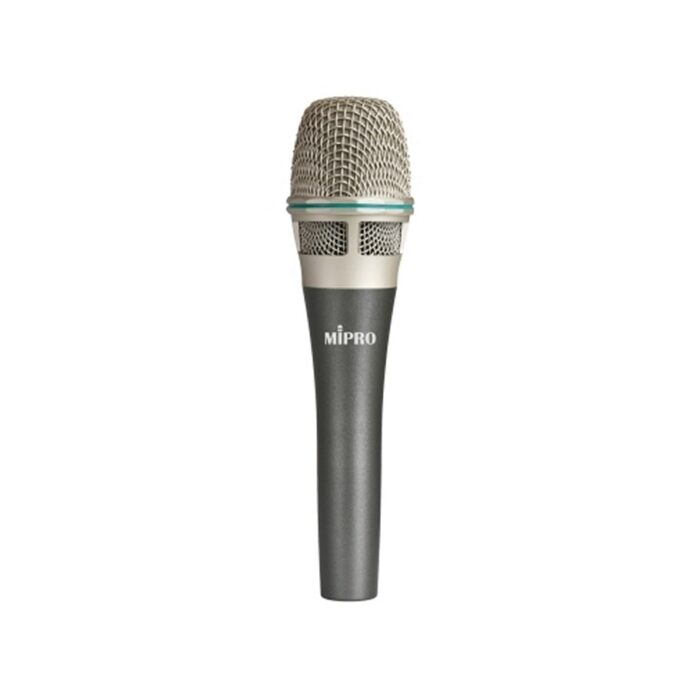

The MM-70 is fitted with a MU-70 capsule module. The exterior multi-layer metal grille protects the capsule to prevent impact pop noise. MM-70 requires external 12~48V DC phantom power to achieve accurate sensitivity. It provides superb directionality and feedback suppression for a bright and detailed sound quality while their proprietary capsule suspension design eliminates vibrations and touch noises for a true natural sound reproduction. It is ideal for vocal, stage, broadcast, studio and music hall applications.
Specs:
- Model: MM-70
- Housing: die-cast metal
- Polar pattern: cardioid
- Sensitivity: -52 ± 1dBV/Pa (0dB=1V Open-circuit voltage)
- Frequency range: 50 ~ 20,000 Hz (94 dB SPL)
- Noise: > 21 dB SPL (A-weighted)
- Signal-to-noise ratio: > 72 dB @ 94 dB SPL (1 Pa)
- max. limit sound pressure level: 147 dB (typical, 1% distortion factor)
- Dynamic range: 126 dB
- Phantom power 12-52 V DC
- Current consumption: 2.0 mA
- Impedance: 200 Ohm
- average: 51 mm
- Length: 200 mm
- Weight: approx. 364 g
