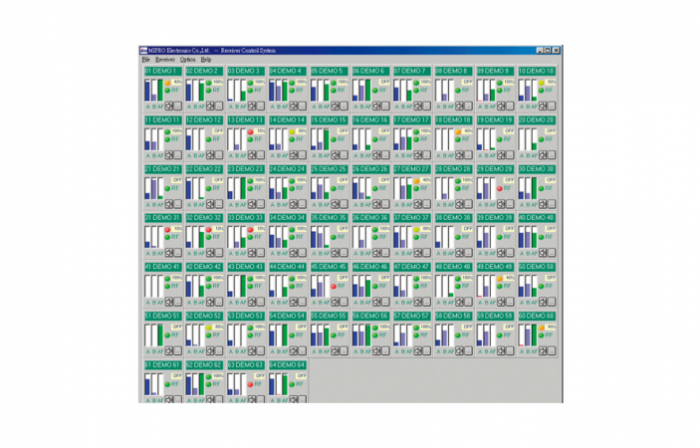

- This software is an advanced and user-friendly PC interface management program. The interface links a PC to the receiver via MIPRO DVU USB connector or DVJ RS-232 connector. The interface provides real-time monitoring and capable of remotely controls up to 64 receiver modules simultaneously from distances up to 300 meters away from the PC.

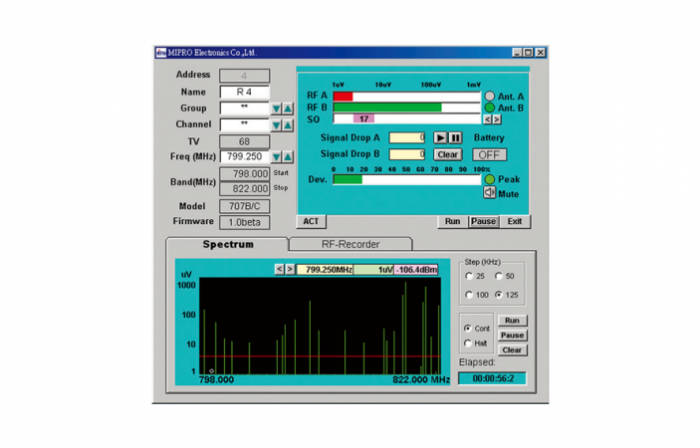

- The management software has a built-in high-performance spectrum analyzer that allows direct setup of non-interference channels and monitors wireless environment for all operating channels and interference signals. The software is also capable of monitoring transmitter battery status, AF/RF and Antenna A/B strength.
- Additional features include a signal dropout recording system where the history of the signal path can be traced for analysis, real-time program editing, multi-function and status display for your convenience.
| Model | ACT-707SD |
|---|---|
| Name | MIPRO Receiver PC Management Software |
| Functions | Monitoring and remote control of ACT-800 / ACT-500 Series receivers. |

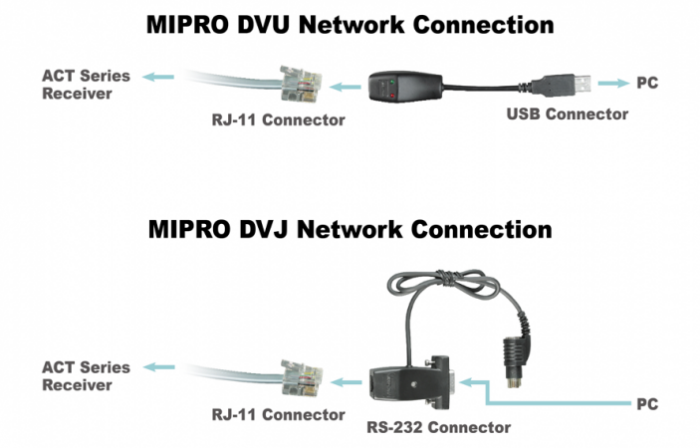

| Accessories | USB connector or RS-232 connector for network connection. RJ-11 connector for the receiver end. |
| Note | Refer to the actual product in the event of product discrepancy. |
