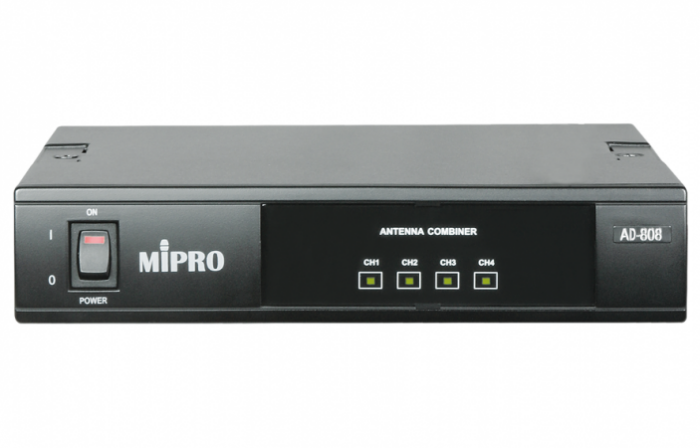

- Introduced in 2005, the AD-808 features 3rd order IM < -57 dBc under full band performance at +15 dBm two-tone test. Designed for combining the signal outputs of 2 to 4 MI-909T transmitters into 1 signal output and transmitting by one antenna to simplify the antenna system installation and greatly eliminate intermodulation distortion, the AD-808 is an essential device for professional stages.
| Model | AD-808 |
|---|---|
| Name | UHF 4-channel Transmitting Antenna Combiner |
| Frequency Range | UHF 470 ~ 960 MHz |
| Gain | 0 dB ± 2 dB |
| Max. RF Input Power | 20 dBm (100 mW) |
| Intermodulation Distortion | < -57 dBc |

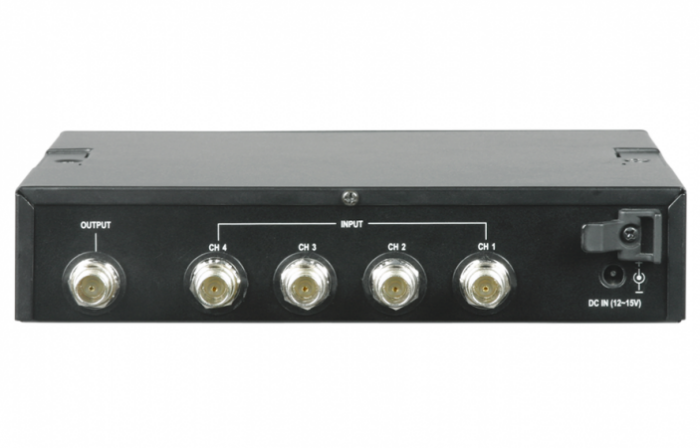

| Input Connectors | TNC female × 4 |
| Output Connectors | TNC female × 1 |
| System Impedance | 50 Ω |
| Dimensions | 210 × 44 × 204 mm (W×H×D) |
| Weight | Approx. 1.1 kg |
| Note | Refer to the actual product in the event of product description discrepancy. |
