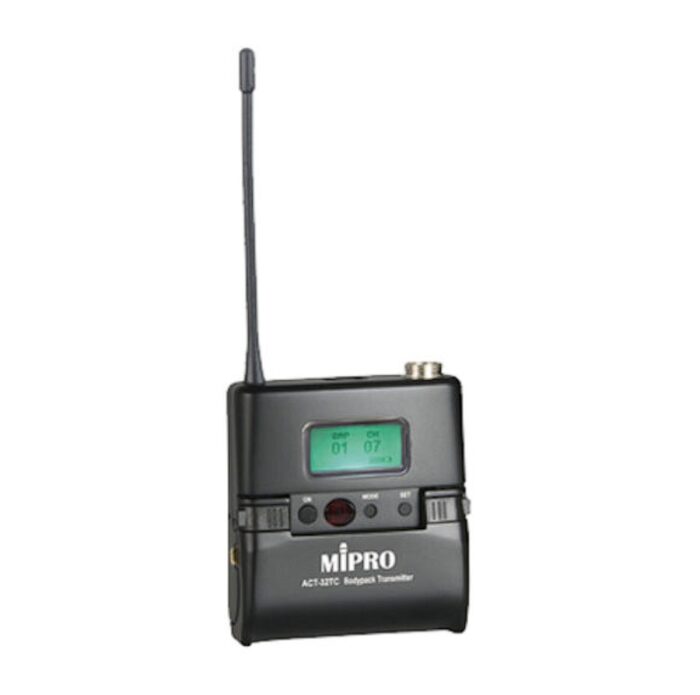

Professional analog rechargeable UHF pocket transmitter for ACT 300, MA series and MRM 70/72 modules, plastic housing, LC display, ACT function
- Stable PLL circuit. Automatic synchronization with the frequency of the receiver through the patented MIPRO ACT ™ function (Auto Channel Targeting).
- Bodypack transmitter with solid plastic housing with rotatable belt clip and a rechargeable lithium battery. After use, simply place it in the charging station to charge
- The antenna, mute switch and mini XLR input are located on the top of the transmitter.
- Simple programming via ACT function
- Mic / Guitar level adjustable
- Adjustable input sensitivity
- LCD display showing battery status, group and channel
- Mini XLR connector for neckband, clip on or instrument microphones and instrument cables
- More than 12 hours of operation
- Battery operation – simply place it in the MP-80 charging station after use (sold separately)
- Range up to 100 m
Technical Details
| model | ACT-32TC (charging contacts) |
| Bandwidth | 24 MHz (center gap 10 MHz) |
| Frequency range | 518-542 MHz (5NB), 620-644 MHz (6A), 644-668 MHz (6B), 823-832 MHz (8AD) |
| Tuner procedure | PLL Synthesized |
| Synchronization | ACT Sync (Automatic Channel Targeting) |
| Transmission power | 10 mW / 50 mW adjustable |
| Nominal stroke | <± 40kHz |
| Secondary broadcast | <-55dBc |
| Volume adjustment | + 6dB, 0dB, -6dB (3 levels), 0dB = microphone input sensitivity |
| Max. Input power | 0 dBV |
| External mute switch | Optional external mute switch MJ-70 |
| Microphones | Neckband: MU-13 / MU-23 / MU-53HN / MU-55HN, lavalier: MU-53L / MU-55L |
| Batteries | Lithium battery (18500) |
| Operating time | Up to 12 hours |
| Display | LCD (liquid crystal display) |
| casing | Plastic housing |
| Dimensions (W x H x D) | 63 × 70 × 25 mm, (2.5 × 2.8 × 1.0 “) |
| Weight | Approx. 102g (3.6 oz), excluding batteries |
