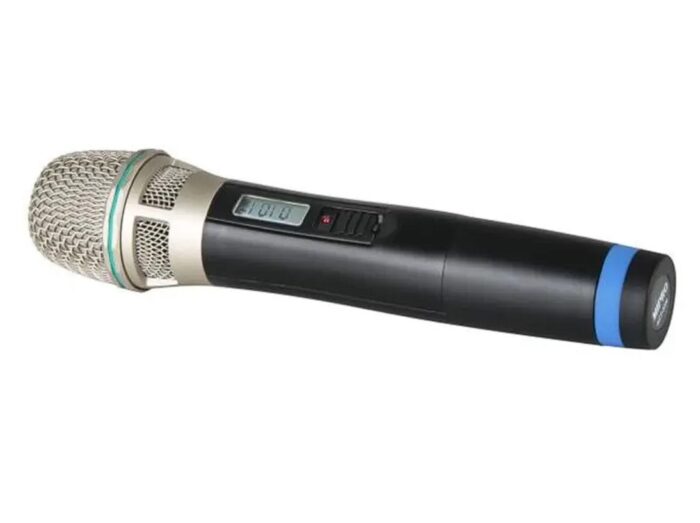

The MIPRO ACT-32H59 is a professional, analog handheld transmitter with dynamic microphone head MU-59, supercardioid.
LCD display battery status.
The hand-held transmitter is battery-powered (2x AA Alkaline) and made of solid plastic housing, which protects the transmitter against
external impacts and makes it insensitive to handling noise.
Frequency area: 518-542 MHz (5NB), 620-644 MHz (6A), 644-668 MHz (6B). 823-832 MHz (8AD) Center gap
Specials
- Hand-held transmitter with solid plastic housing
- Simple programming via ACT function
- Extremely insensitive to handle noise
- Up to 12 hours of operation with 2x AA lkaline battery
- Range up to 100m
- Stable PLL Circuit – Automatically synchronizes with the frequency of the receiver using the patented MIPRO ACT™ feature (Auto Channel Targeting)
- Easy and quick replacement of the batteries by unscrewing the microphone head
- Replaceable head system for easy and quick conversion of microphone heads to premium condenser or dynamic capsules
- Unique multi-piece metal grill protects the capsule from shocks, makes them insensitive to pop noises and ensures clear sound
- Lockable on / off switch prevents unintentional switching off of the remote control during use
Technical Details
| model | ACT-32H59 |
| Bandwidth | 24 MHz (center gap 10 MHz) |
| Frequency range | 518-542 MHz (5NB), 620-644 MHz (6A), 644-668 MHz (6B), 823-832 MHz (8AD) |
| Tuner procedure | PLL Synthesized |
| Synchronization | ACT Sync (Automatic Channel Targeting) |
| Transmission power | 30 mW |
| Nominal stroke | <± 40kHz |
| Secondary broadcast | <-55dBc |
| Max. Input sensitivity | 140dB SPL |
| Microphone head | dynamic microphone head MU-59 |
| Batteries | 2 x AA alkaline |
| Operating time | Up to 12 hours |
| Display | LCD (liquid crystal display) |
| casing | Plastic housing |
| Dimensions (Ø × L) | 50 × 233 mm |
| Weight | approx. 246 g, without batteries |
