Full color white light RGB laser system
- 2’700 mW guaranteed output power
- Network interface Pangolin FB4 Quickshow ‘Max’ is already integrated
- Including Pangolin Quickshow software
- A very fast scan speed of 45 kpps@8° ILDA for graphics projection
- High-precision diode arrays provide an excellent beam divergence of less than 1.0 mrad at a low beam diameter
- Pure diode laser
- Improved method for increasing the beam precision of the single-mode diodes
- Beautiful colors and good color fading
- The tarm two impresses with a very bright 638 nm single mode red

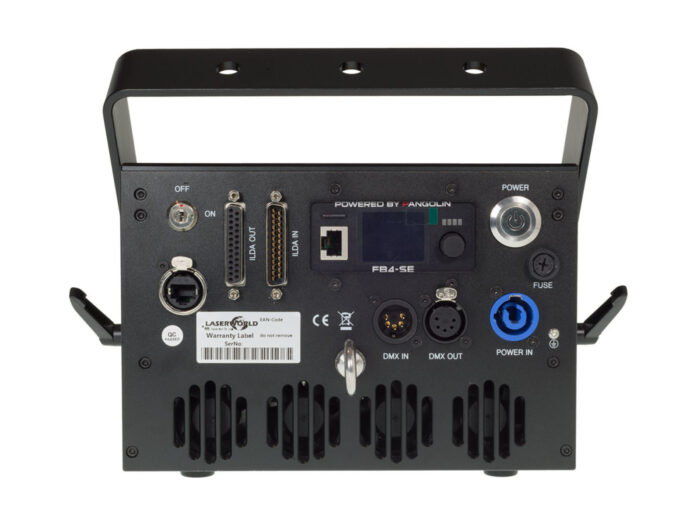

- Controlling by DMX ILDA network cable
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided) |
| Laser class: | Class 4 |
| Laser color: | R/G/B |
| Laser module: | Red (R) 700 mW 638nm Green (G) 750 mW 520nm Blue (B) 1500 mW 450nm |
| DMX input: | 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 5-pin XLR (F) mounting version |
| Control: | DMX ILDA network cable |
| Housing color: | Black |
| Dimensions: | Width: 22 cm Depth: 22 cm Height: 15 cm |
| Weight: | 6,95 kg |
