ACCESSORIES TO SECURE & HANG TRUSS
Specifications:
- Measures: 520 x 80 x 45 mm
- Maximum load: 1000 kg
- Net weight: 6.40 kg
- Adjustable: Yes
- For diameters: 48 – 51 mm
- Material: Steel and Aluminum
- Large load capacity adapter, for lifting by motor or hoist of aluminum structures.

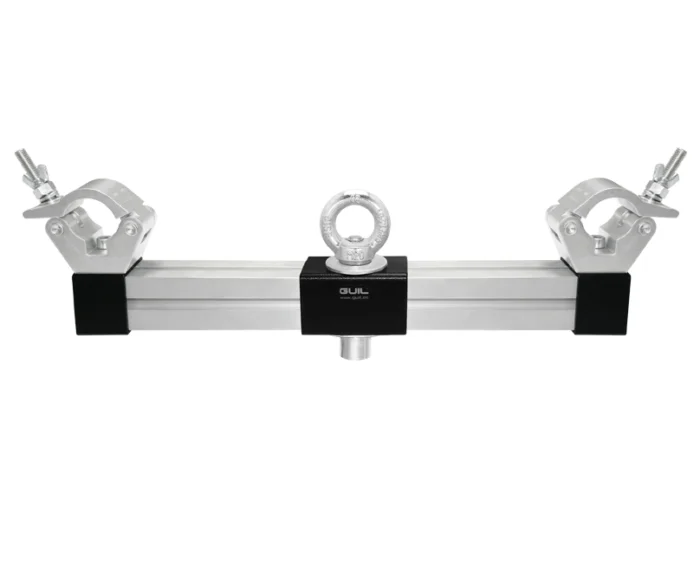

- The TS-AD1 steel adapters with VIGA “U” type design are equipped with two ABZ-03 aluminum clamps (for trusses with tube diameter from 48 to 51 mm) and a detachable M20 ring for anchoring and rear elevation to the trusses.
- The TS-AD1 adapters allow two positions for anchoring and fixing the trusses.
- Thanks to the special design of the beam, the TS-AD1 adapter can be used for trusses with dimensions between 375 mm to 415 mm and between 487 mm and 527 mm.
