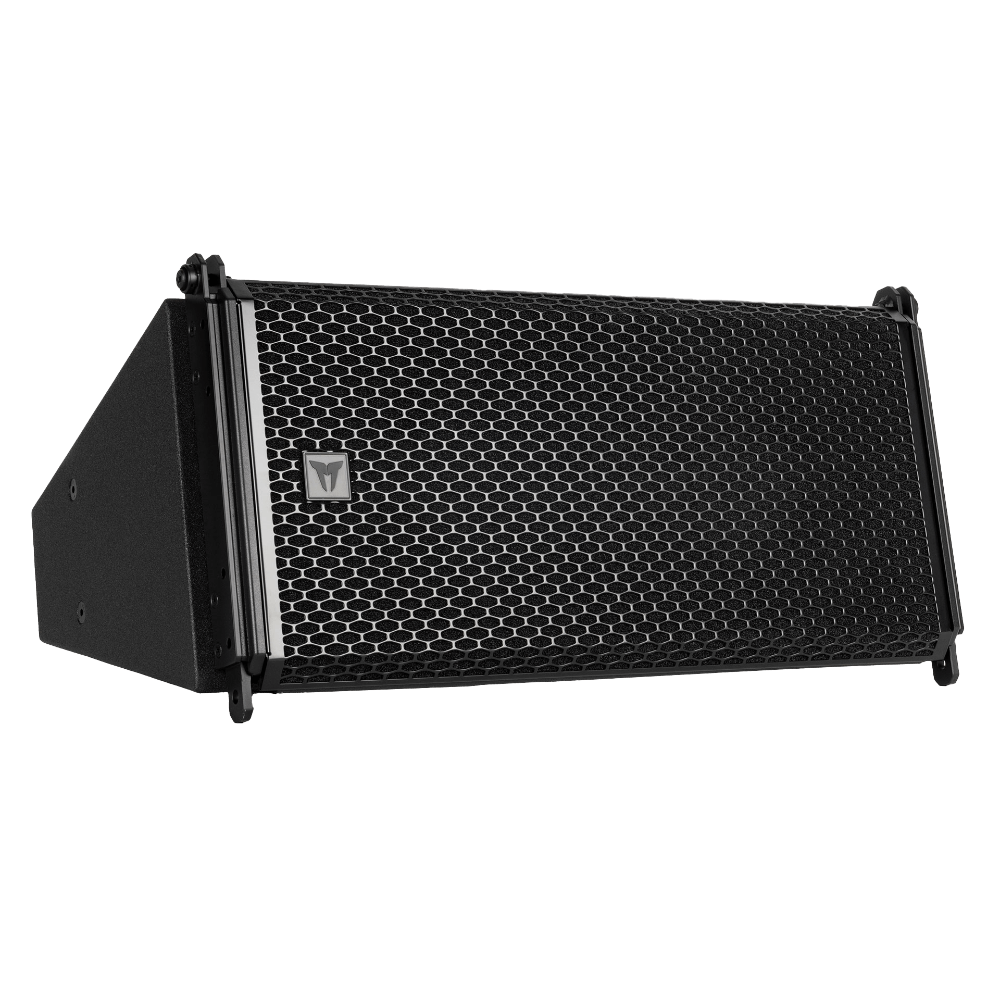

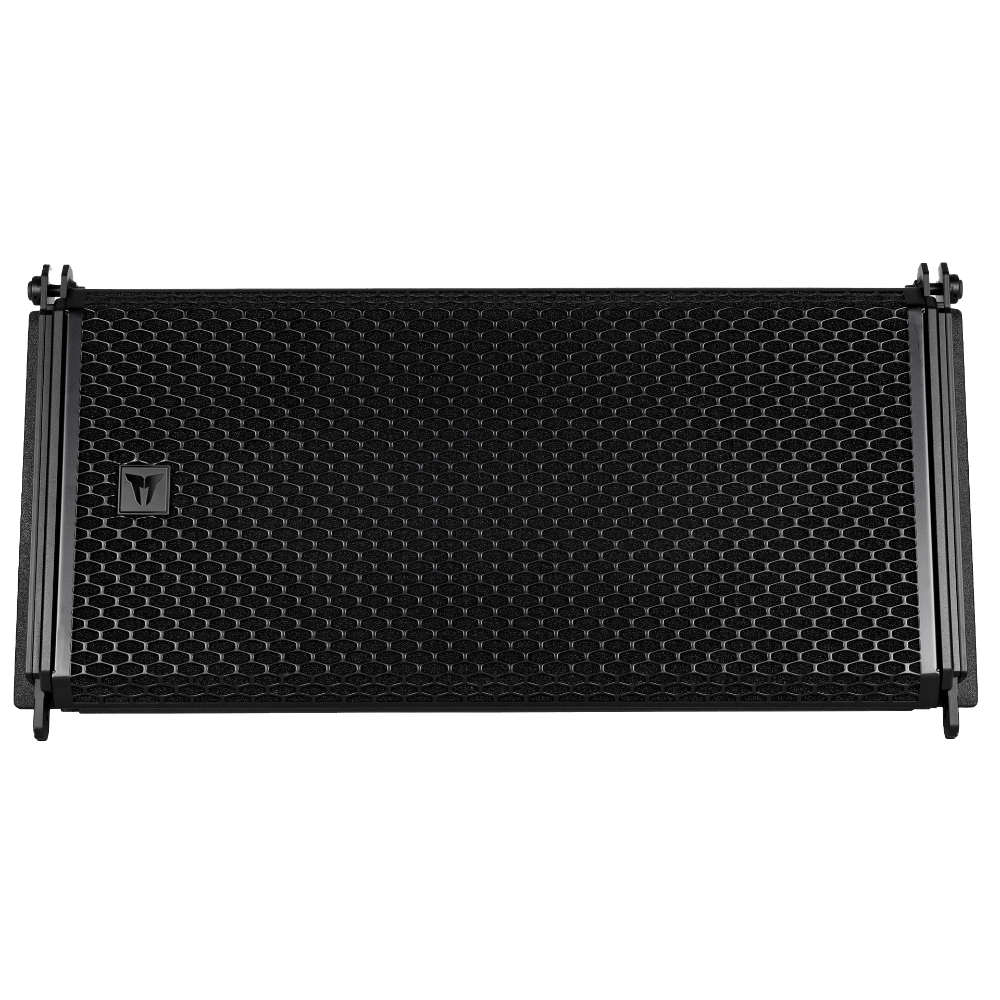

The GTX 10 Installation Series is a two-way line array system suitable for medium to large-scale, high-demanding, install sound applications, both indoors and outdoors. Equipped with three best-in-class transducers, it offers excellent reproduction quality and optimized directivity in three coverage options enabling precise customization for any project. The integrated rigging hardware allows the system engineer to create arrays with 0° to 10° angles between modules, with 1° steps. Up to 16 modules can be suspended on a single fly-bar. Designed to operate with XPS 16K four-channel DSP amplifiers, each of which is able to manage up to 6 modules.

ADVANCED CORE TECHNOLOGY

Innovative design refinements enable our new True Resistive Waveguide to provide effective driver loading and precise pattern control for transducers. Designed with Finite Element Analysis and proven in RCF’s anechoic chambers, the 4PATH technology produces an ideal isophasic load with low distortion and coherent phase response, even at the lowest crossover frequencies.

THE POWER OF SYMMETRY

The symmetrical enclosure design and component topology produce consistent coverage from left to right. Symmetrical component positioning and special DSP crossover filtering provide constant directivity and perfect continuity of the hemicylindrical wave directivity without lobes and discontinuities. Frequency modulations are avoided by the optimized active crossover design.

HIGH FREQUENCY

The 4-inch titanium dome compression drivers, equipped with high-current neodymium magnets, are designed to fully leverage the remarkable capabilities of the TRW-4PATH waveguide. As a result, the GTX10Pi’s 70° x 15° coverage is finely matched with the output of its woofers for perfect phase coherence.

LOW FREQUENCY

The low distortion, high output design of the two 10” HyperVented woofers ensures superb fidelity and high dynamic range. With 3.0” inside-outside voice coils and high flux density neodymium magnets, the fast, high-stiffness motor section provides high impact low-frequency reproduction.

ENCLOSURE AND RIGGING HARDWARE

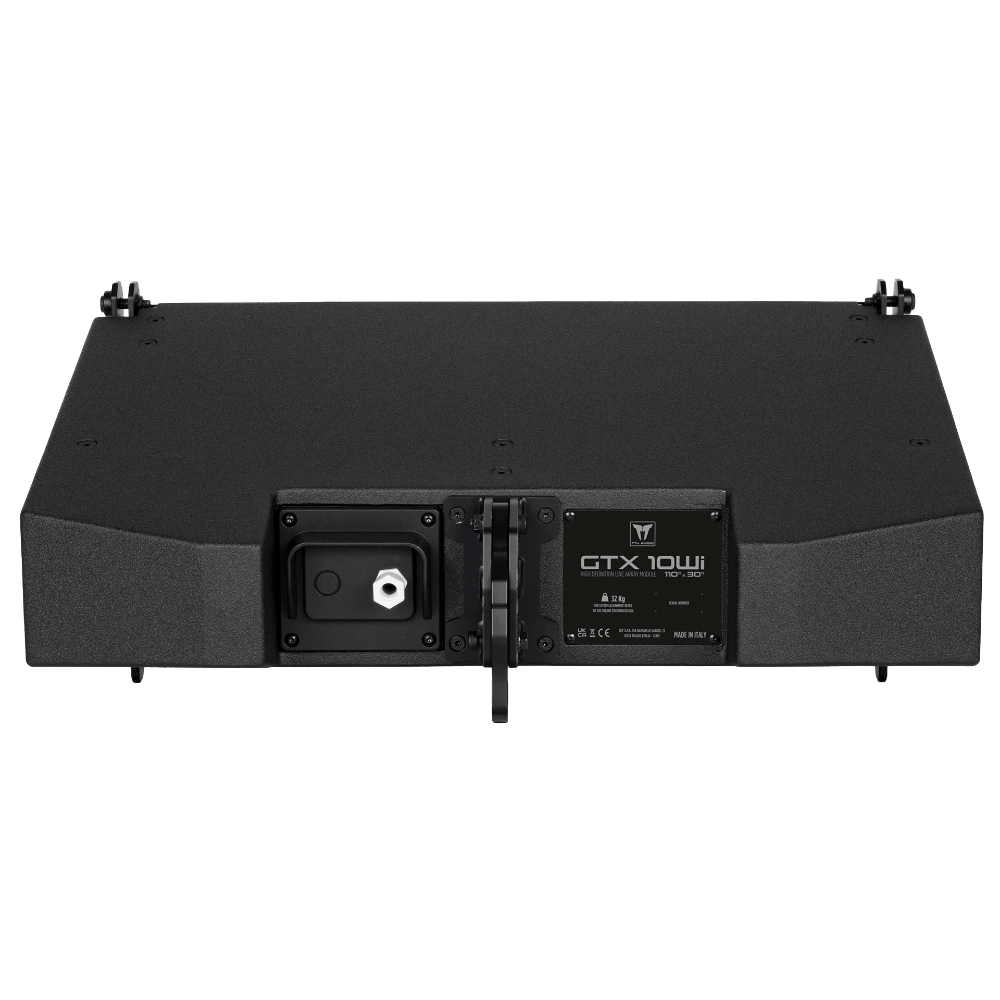

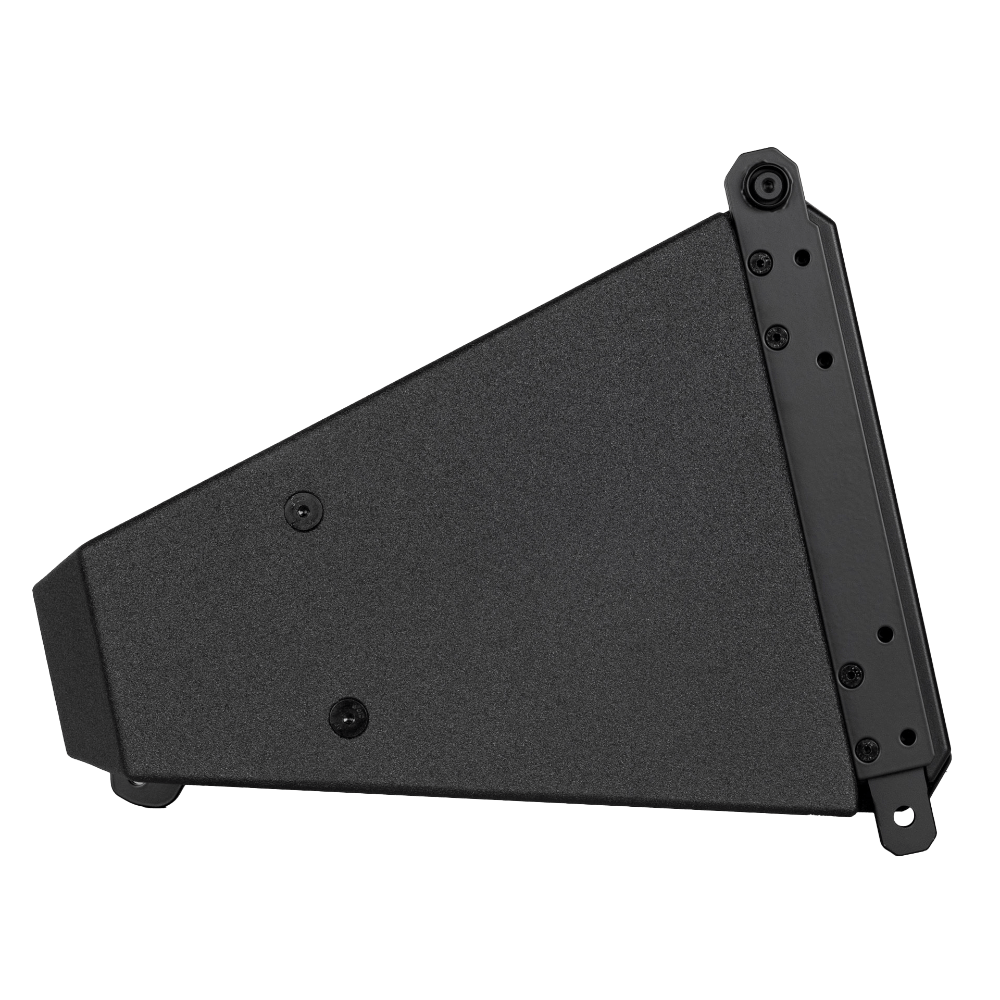

The sturdy, weather-resistant birch multi-ply enclosure features optimized hardware for safety and adaptability, including a rear mechanism for angle selection. High-strength Strenx steel rigging hardware ensures secure deployment of up to 16 modules in tension or compression mode. Power connection is provided via a watertight screw terminal connection panel designed for cables up to AWG 9. The powder-coated protective grille includes a protective foam layer. For enhanced weather resistance, the IP version offers an additional acoustically transparent, water-repellent fabric.
