TT+ Audio GT 8

Ettetellimisel

Passive point source speaker 2x 8″ + 3″

Tootekood: 13000918 Kategooria: Brand:
Get offer
×

    Ask for delivery time
    ×

      Küsi abi

      Ross

      [email protected]

      +372 5699 7759

      Tasuta tarne, kui e-poe tellimuse summa ületab 139€
      14-päevane raha tagasi garantii
      Kui kaup on laos, saad toote kätte järgmisel tööpäeval!

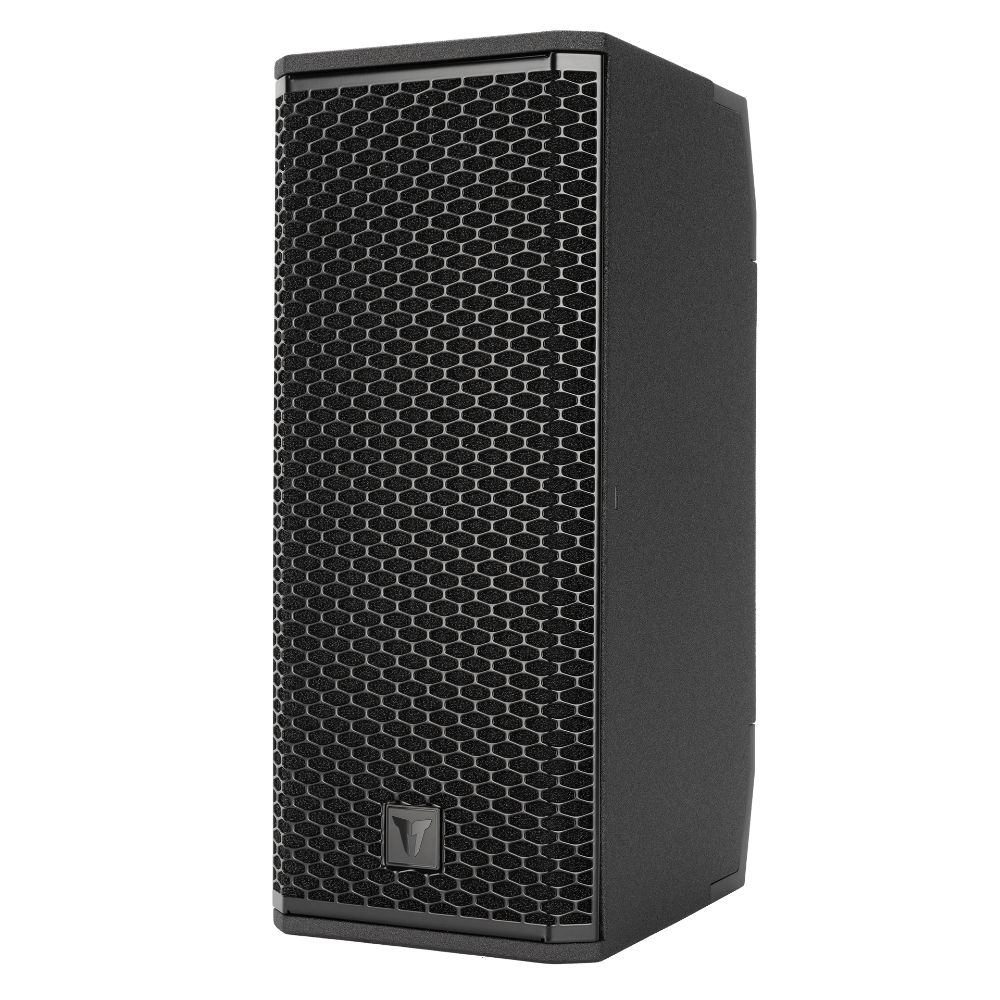

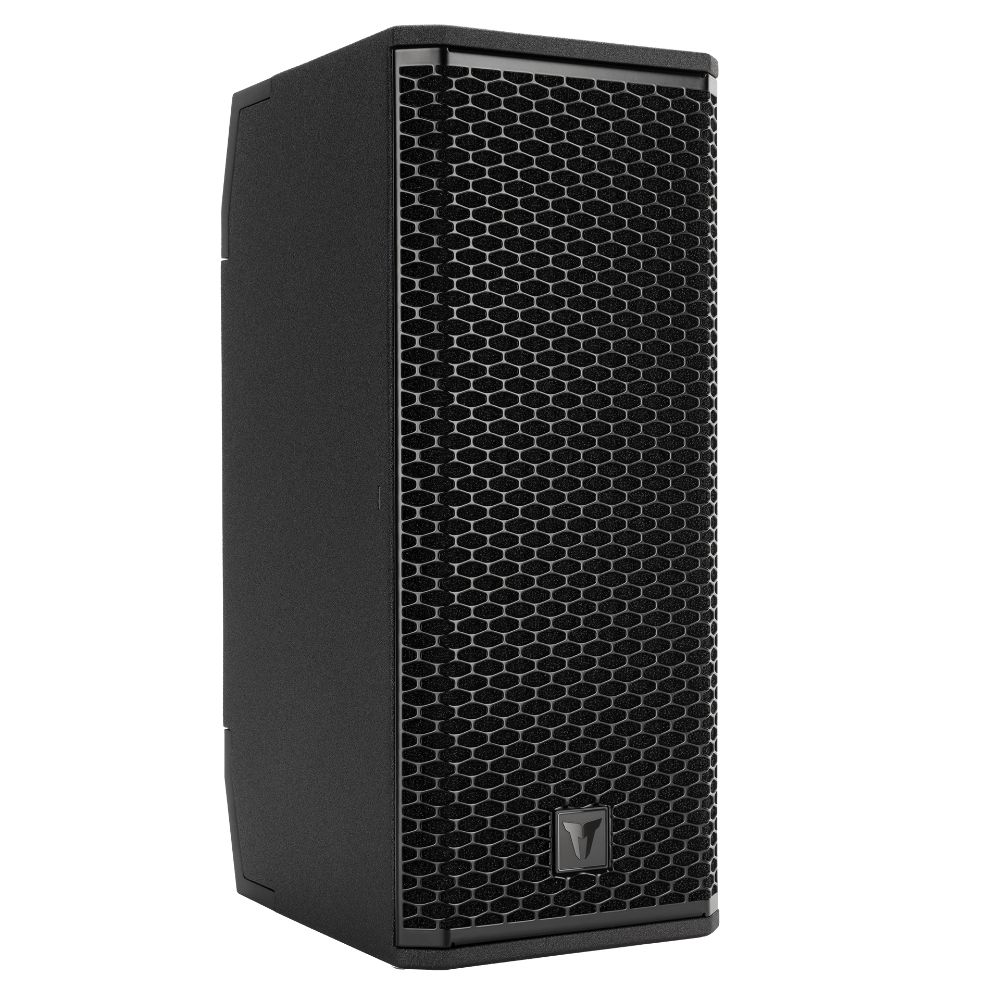

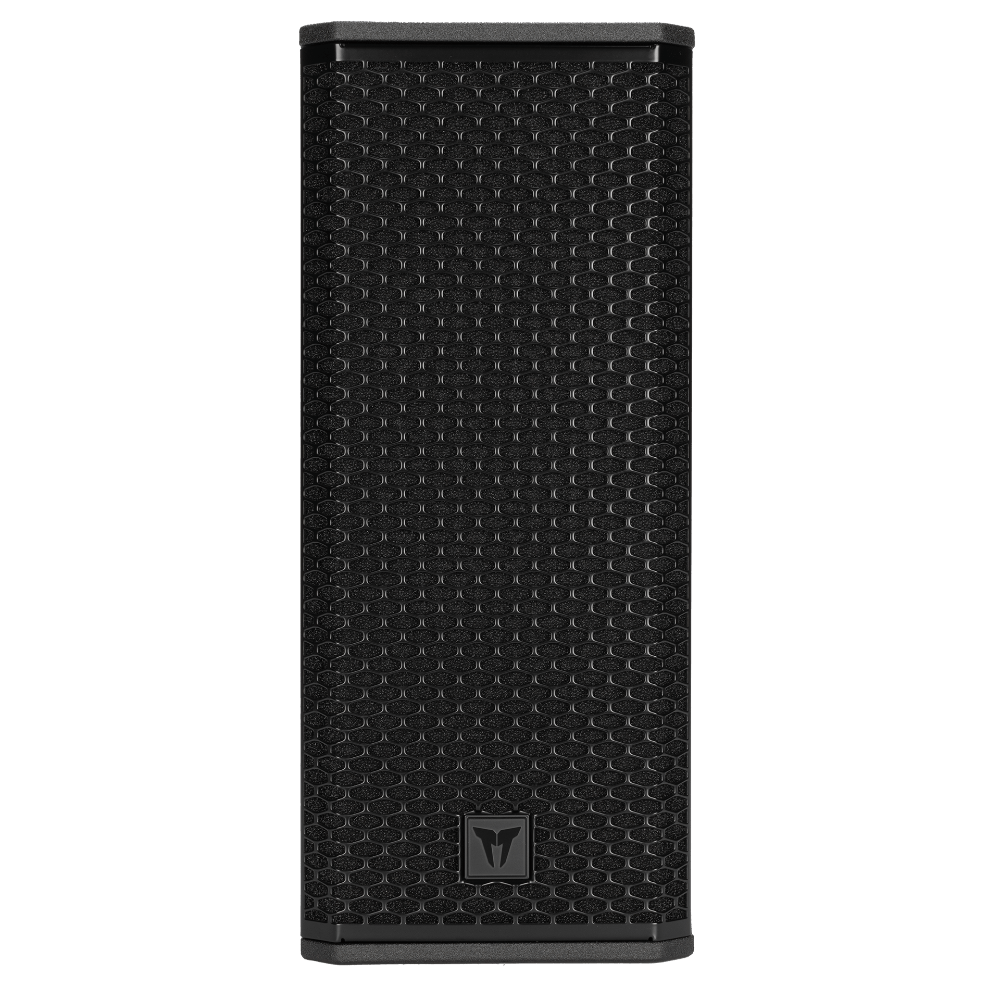

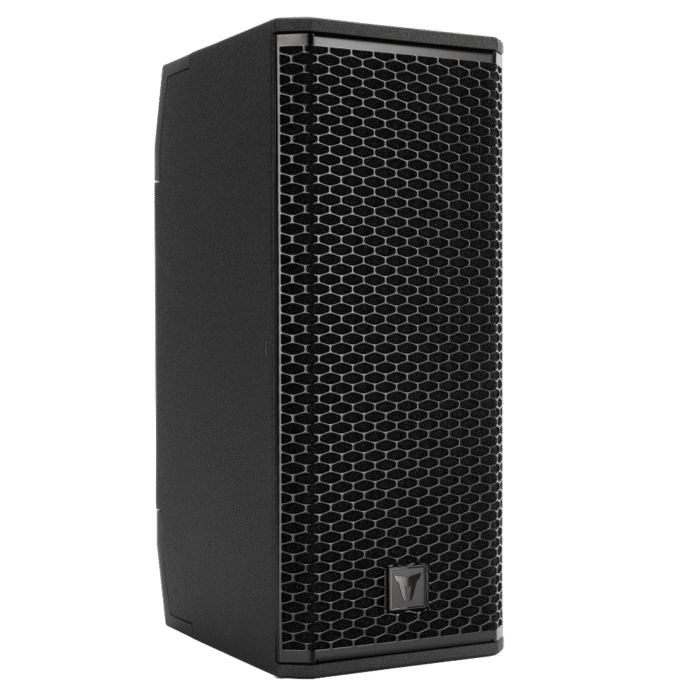

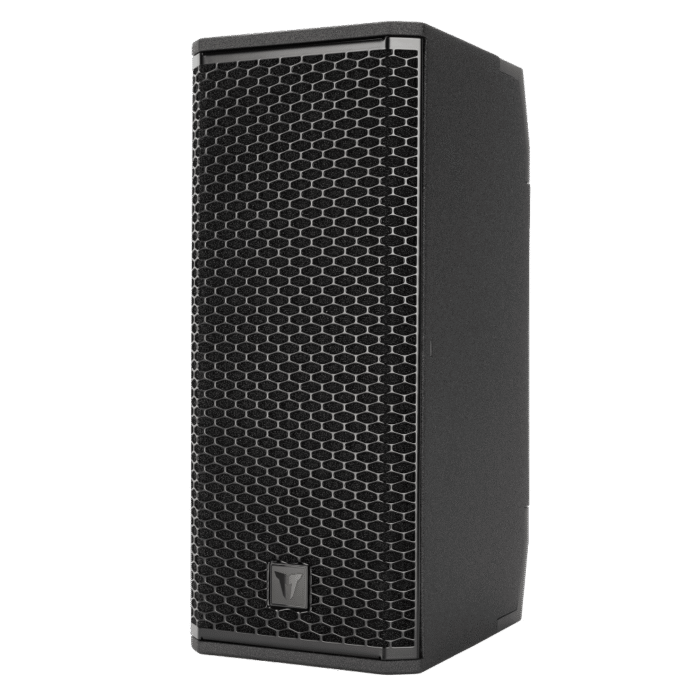

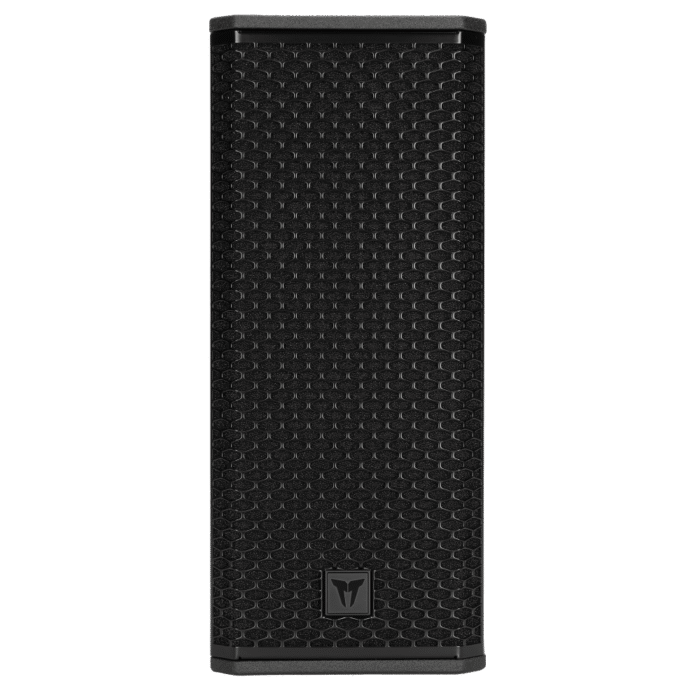

      The GT 8 is a versatile point source speaker engineered for precise sound coverage in high-powered professional audio applications. Its enclosure is constructed from durable, highquality marine-grade plywood, housing two 8” neodymium woofers in a symmetrical configuration and a central 3” titanium-dome neodymium compression driver mounted on a rotatable magnetic constant-directivity TRW waveguide. The magnetic grille allows for easy waveguide rotation without tools, with easy inspection of the orientation from a lateral window. For scalable, high-performance sound reinforcement and a perfect match with GTX signature sound, it integrates seamlessly with XPS 16K amplifiers, supporting up to three speakers per amplifier channel or two speakers for highperformance output.
      Responsive Image

      HIGH-PERFORMANCE ACOUSTIC DESIGN

      Developed using Finite Element Analysis and validated in TT+ Audio’s anechoic chambers, the GT 8 incorporates the innovative TRW (True Resistive Waveguide) to deliver efficient driver loading and precise pattern control. Its phase-coherent symmetrical arrangement of the cone transducers ensures optimal time alignment, while the passive crossover network is finely tuned to maximize dynamic response across frequency bands. Leveraging FiRPHASE optimization via the XPS amplifier’s internal DSP, the transducers’ radiation combine and emerge as a single 0º linear phase wavefront. This significantly minimizes off-axis distortions, enhancing clarity and delivering outstanding performance over the entire frequency range.

      BUILT FOR HEAVY TOURING

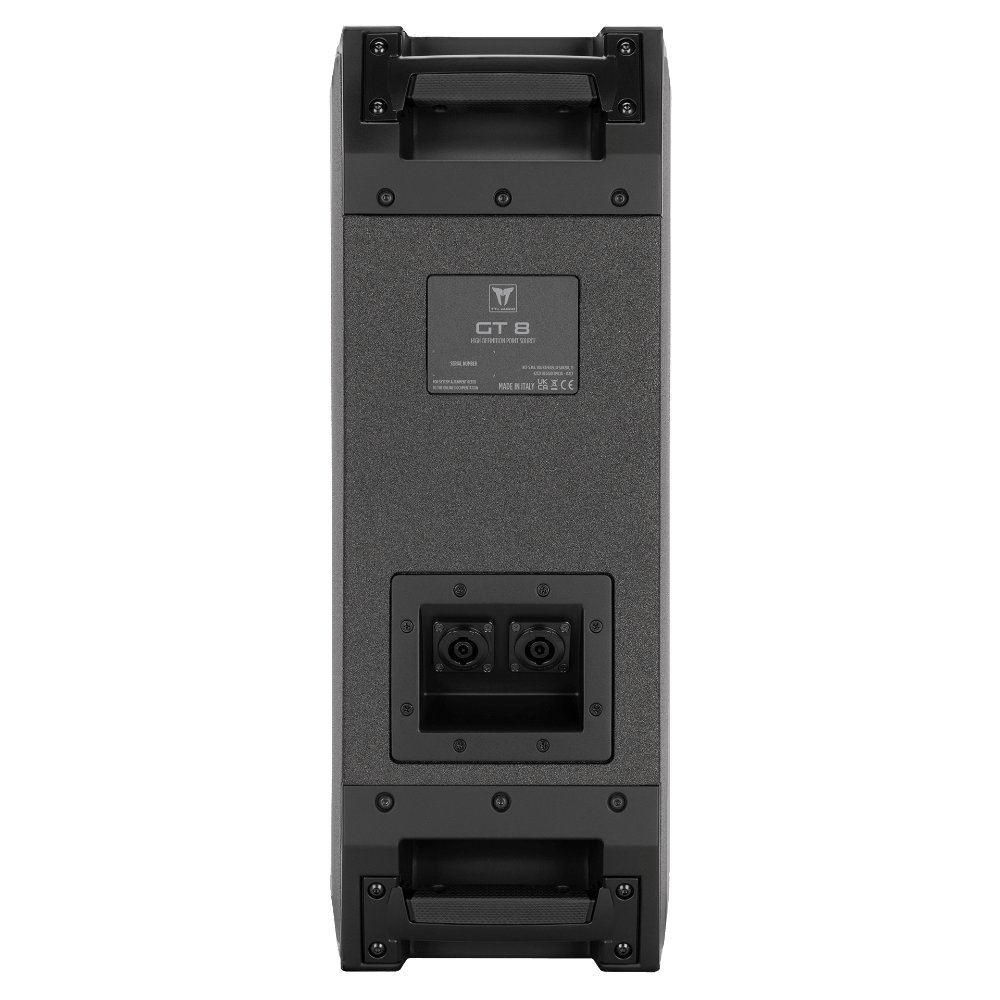

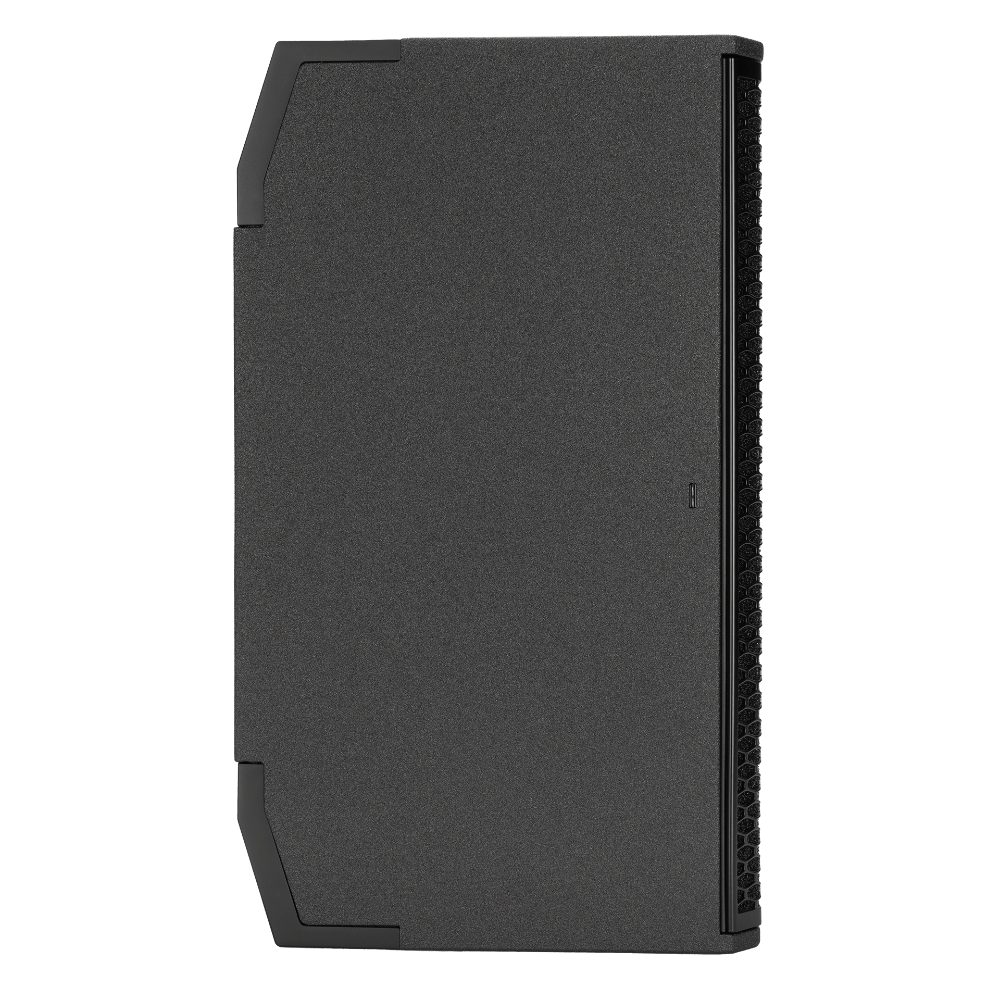

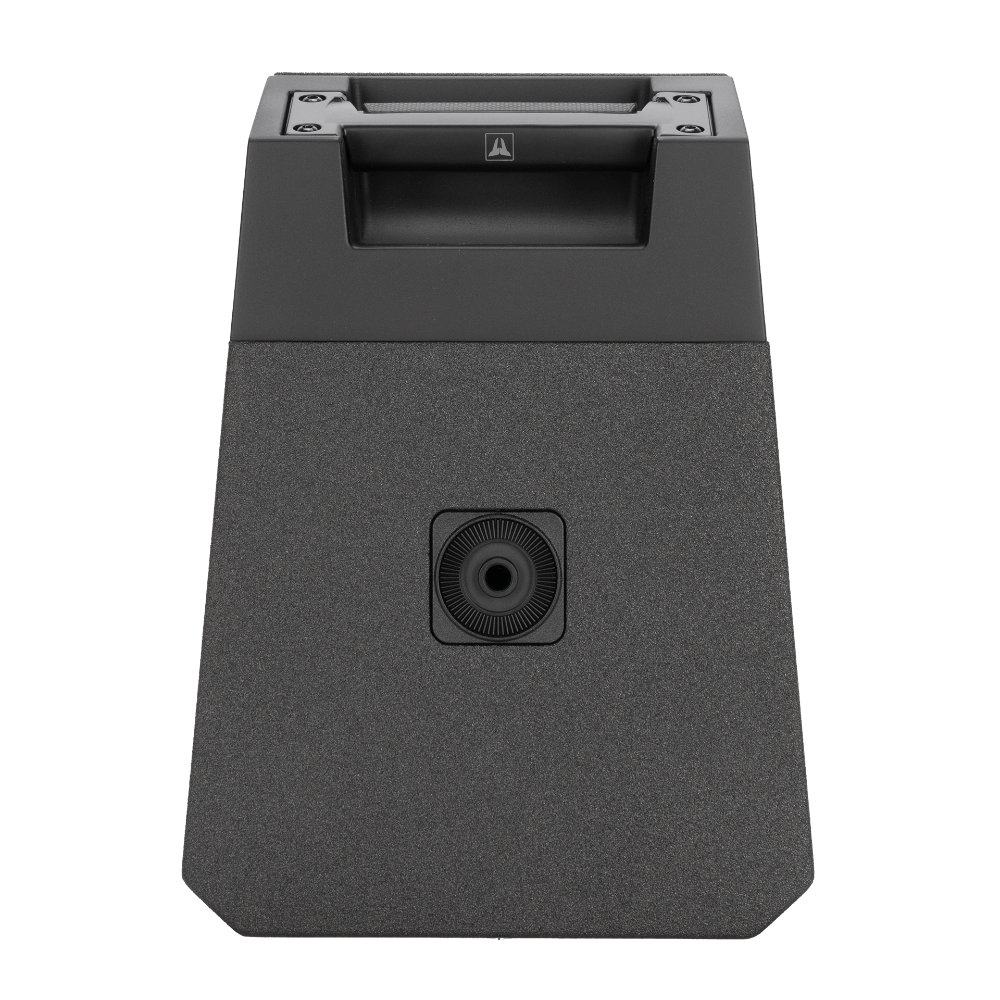

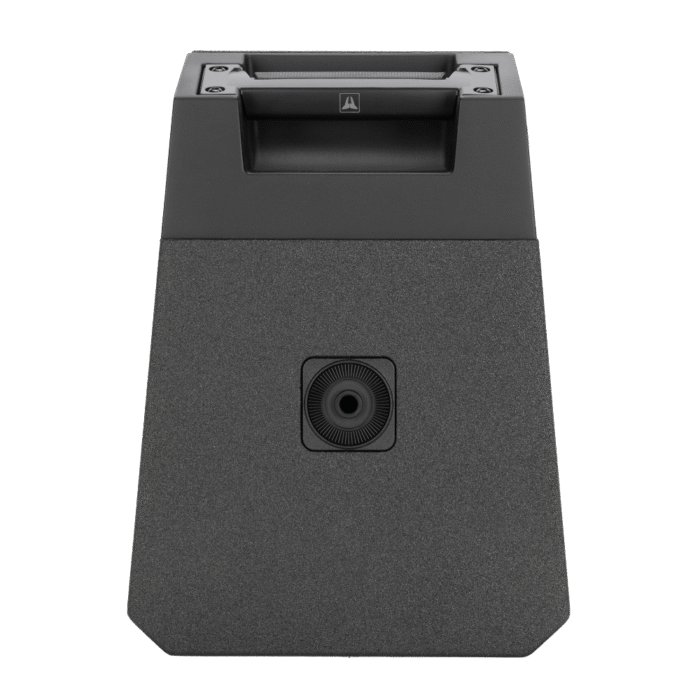

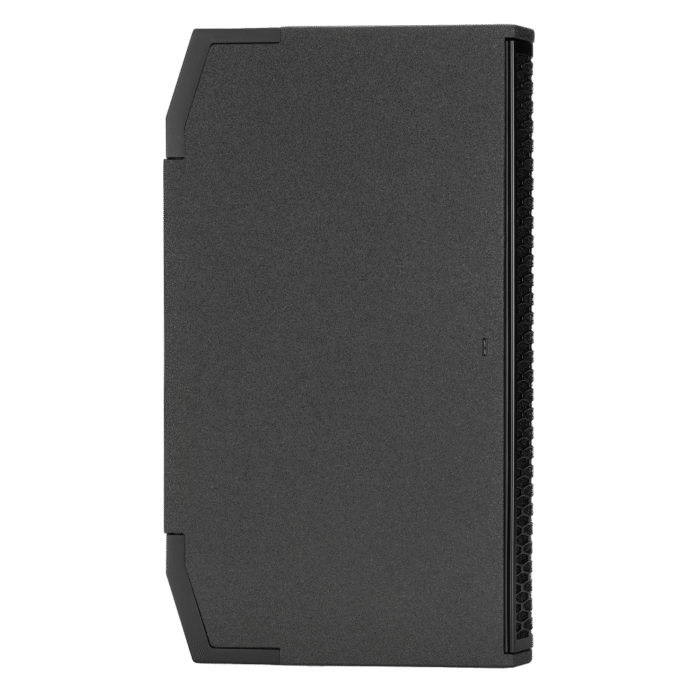

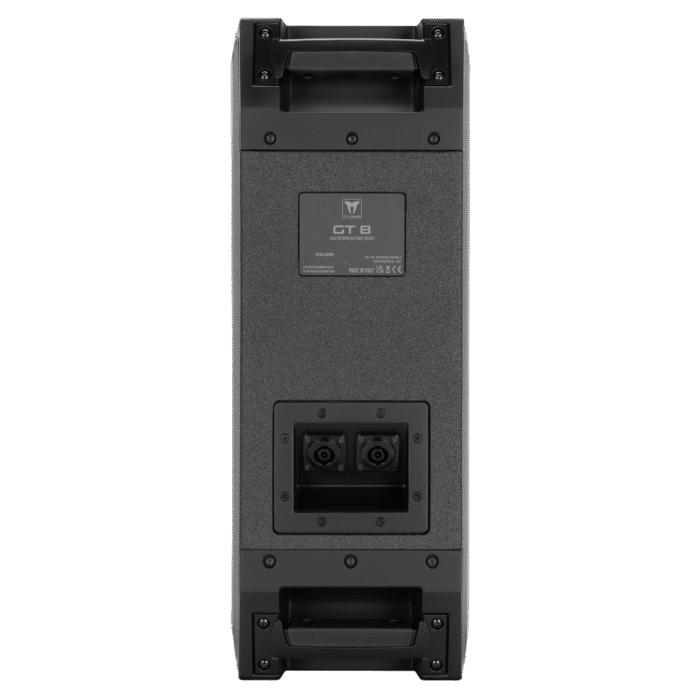

      GT 8 is built to endure the rigors of touring, featuring a robust plywood cabinet coated with a durable polyurea finish that provides exceptional waterproofing and scratch resistance. Ergonomic die-cast aluminum handles with rubber grips on the top and bottom ensure comfortable and secure handling. A magnetically detachable grille enables quick access to the internal components, while the rotatable TRW waveguide—secured by a high-force magnetic assembly—can be adjusted without tools. A side inspection window allows easy verification of the selected coverage pattern. Quick-Fit M10 sockets on the top and bottom provide integration with various accessories, including horizontal and vertical brackets, subwoofer stack mounts, and pole mount adapters. The connection panel features two SpeakON STXX Series 4-pole IP54 heavy-duty metal connectors.



      Acoustical specifications
      Frequency Response (-10dB)
      50 Hz ÷ 20000 Hz
      Max SPL @ 1m
      137 dB
      Horizontal coverage angle
      110°
      Vertical coverage angle
      50°
      Power section
      Amplification
      Full Range
      Nominal Impedance
      8 ohm
      Power Handling
      1000 W RMS
      Peak Power Handling
      4000 W PEAK
      Crossover Frequencies
      900Hz
      Recommended Amplifiers
      XPS 16K, XPS 16KD
      Transducers
      Compression Driver
      1 x 1.4” neo, 3.0” v.c
      Woofer
      2 x 8” neo, 2.5” v.c
      Input/Output section
      Input connectors
      Speakon® NL4
      Output connectors
      Speakon® NL4
      Standard compliance
      Safety agency
      CE compliant
      Physical specifications
      Cabinet/Case Material
      Baltic birch plywood
      Grille
      Steel with clothing
      Color
      Black
      Size / Weight
      Weight
      16.5 kg / 36.38 lbs
      Shipping information
      Package Weight
      19 kg / 41.89 lbs
