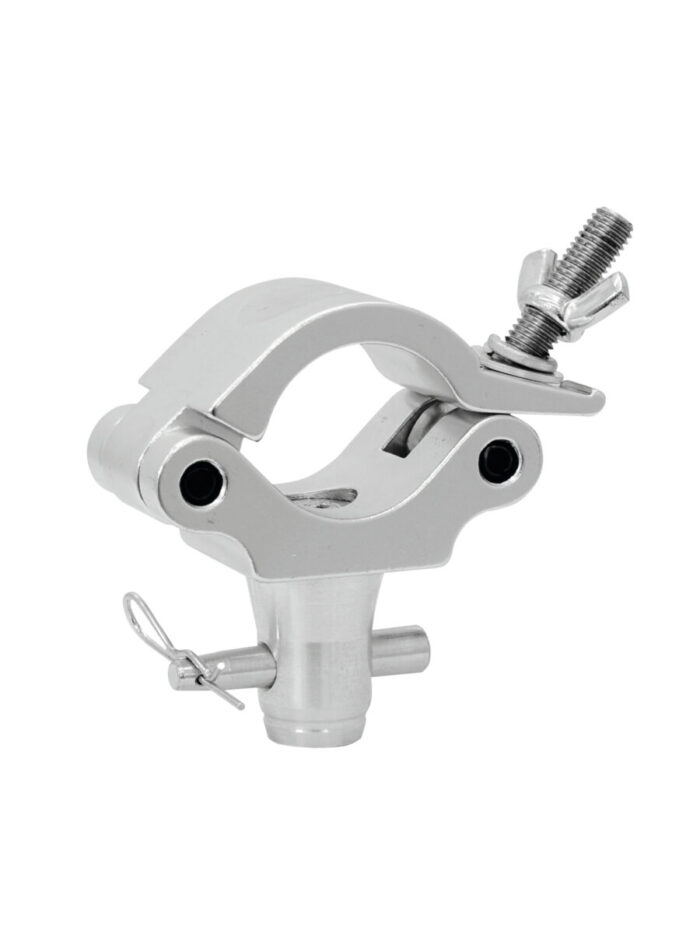

Coupler for 50 mm tube with Quicklock 6082 conical connector, maximum load WLL 500 kg
- With conical connector matching the Quicklock truss systems Singlelock, Bilock, Trilock 6082, Quadlock 6082
| Maximum load BGV C1 (8-fold): | 250 kg |
| Max. load WLL (4fold): | 500 kg |
| Tube diameter sector: | 45 – 50 mm |
| Material: | Aluminum |
| Color: | Silver |
| Dimensions: | Length: 13 cm Width: 5 cm Depth: 11,50 cm |
| Weight: | 610 g |
