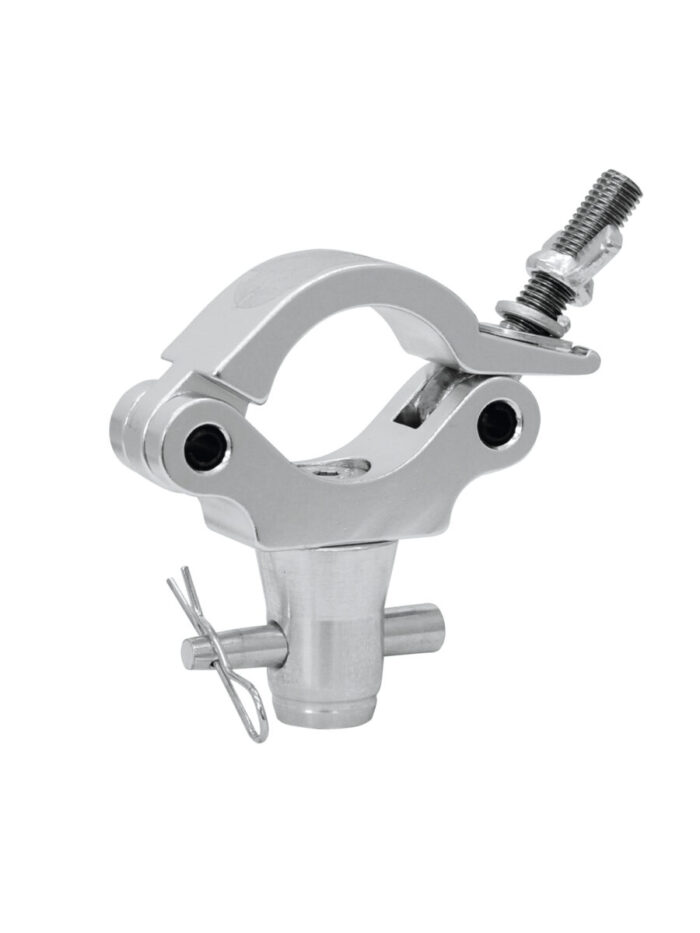

Coupler for 50 mm tube with Quicklock 6082 conical connector, maximum load WLL 200 kg
- With conical connector matching the Quicklock truss systems Singlelock, Bilock, Trilock 6082, Quadlock 6082
- Width 30 mm
| Maximum load BGV C1 (8-fold): | 100 kg |
| Max. load WLL (4fold): | 200 kg |
| Tube diameter sector: | 45 – 50 mm |
| Material: | Aluminum |
| Color: | Silver |
| Dimensions: | Length: 12 cm Width: 3 cm Depth: 3 cm Height: 13 cm |
| Weight: | 440 g |
