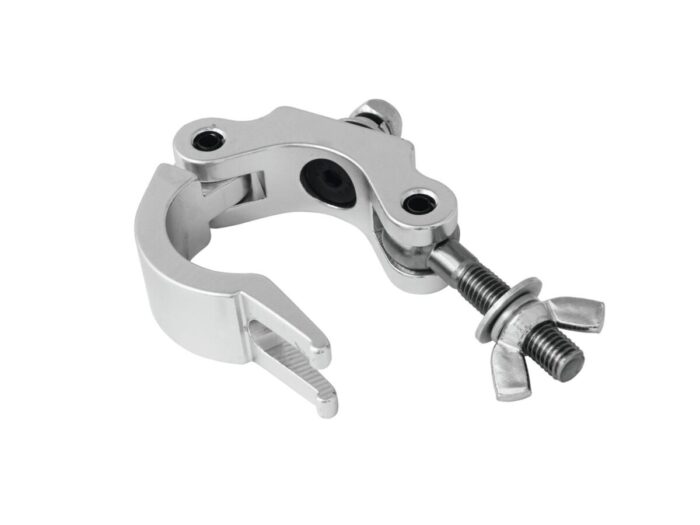

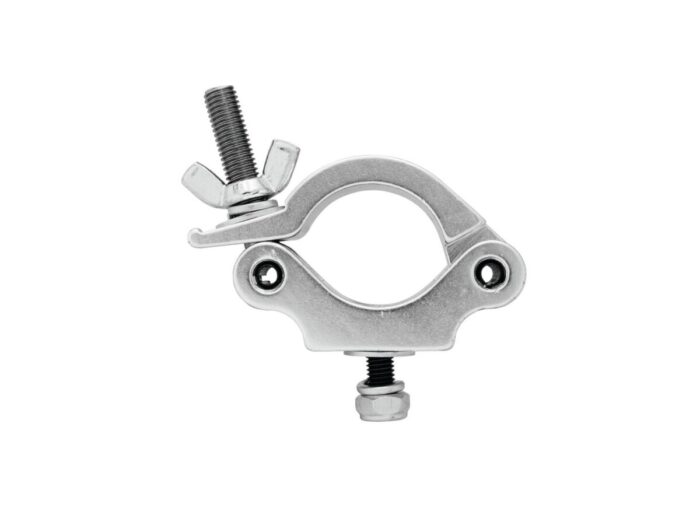

Mounting coupler for 50 mm tube, maximum load WLL 200 kg
- Coupler for installation of projectors, light effects etc. in a truss
- For installation in a horizontal or vertical truss
- With countersunk fixation screw M10x35 mm
- Possibility of installing a half cone M10 since the fixation screw can be randomly screwed (countersunk head)
| Maximum load BGV C1 (8-fold): | 100 kg |
| Max. load WLL (4fold): | 200 kg |
| Tube diameter sector: | 45 – 50 mm |
| Material: | Aluminum |
| Color: | Silver |
| Mounting screw: | M10 |
| Dimensions: | Length: 10 cm Width: 3 cm Depth: 11,50 cm |
| Weight: | 350 g |
