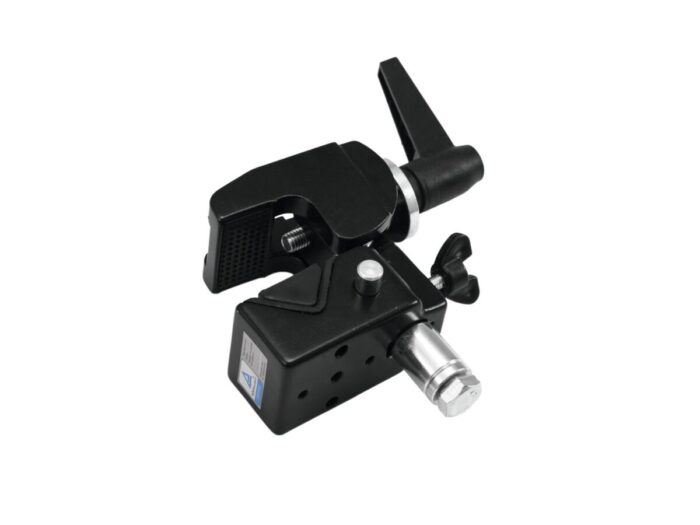

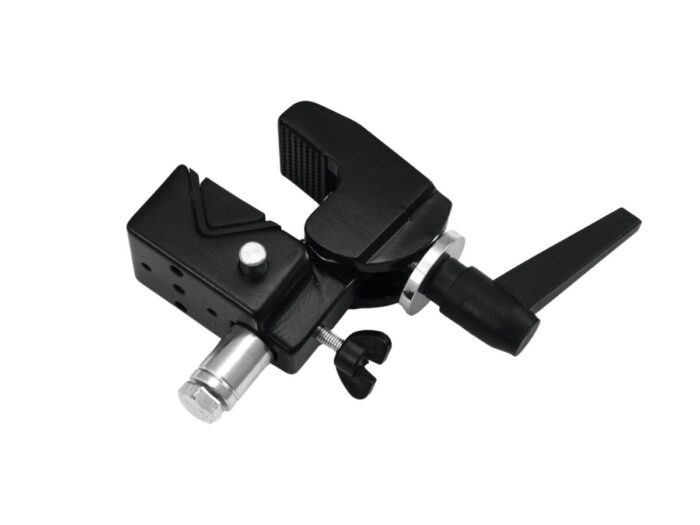

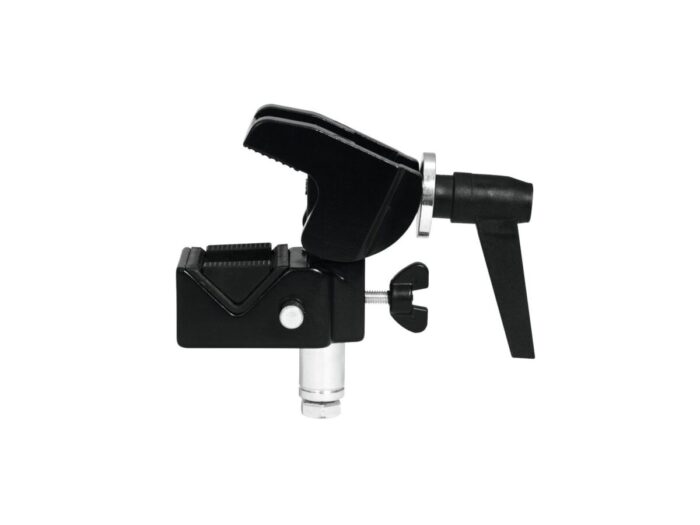

Mounting clamp for 13-55 mm tube incl. mini TV pin, maximum load WLL 15 kg
- Clamp for installing projectors, lighting effects etc. via a truss system
- Fixation: hexagonal 5/8″ socket and 1x M6 thread and 2 x M5 thread (f)
- Incl. mini TV pin
| Maximum load BGV C1 (8-fold): | 7,5 kg |
| Max. load WLL (4fold): | 15 kg |
| Tube diameter sector: | 20 – 55 mm |
| Attachment system: | TV spigot mini Ø 16 mm |
| Material: | Aluminum casting |
| Color: | Black |
| Mounting screw: | M8 |
| Dimensions: | Length: 14,50 cm Width: 4,50 cm Depth: 12,50 cm |
| Weight: | 560 g |
