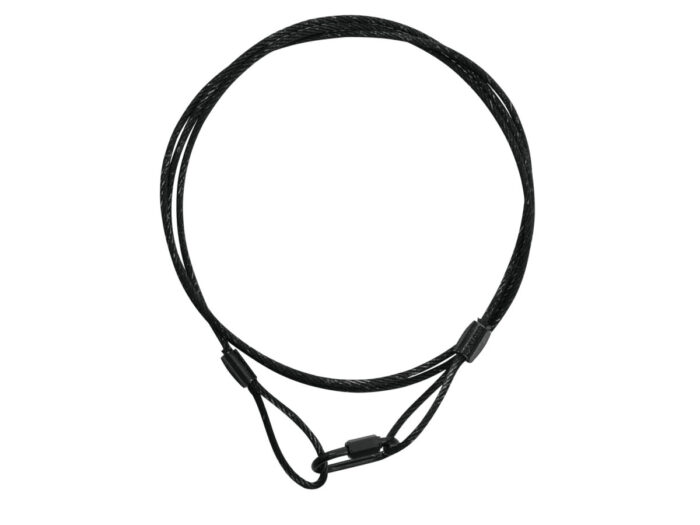

EUROLITE Steel Rope (SC) 900x3mm black without quick link
Steel rope with loops, grouted without grummet thimbles
- With steel core
- Black
- Stopping rope for general lifting purposes
- Rope with loop
EUROLITE Quick Link Type A-200
Quick link
- Form A (short)
- Galvanized
- Identification number: 200
- Stamp: DIN 56927 A 200
- Test report according to DIN EN 10204 as download
| Weight: | 70 g |
| EUROLITE Steel Rope (SC) 900x3mm black without quick link | |
| Maximum load WLL (5-fold): | 100 kg |
| Design of the core: | 6 x 19 WSC |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Wire surface: | Zinc-plated |
| Color: | Black |
| Temperature range: | -40 °C – +100 °C |
| Dimensions: | Length: 90 cm Diameter: Ø 3 mm |
| Weight: | 40 g |
| EUROLITE Quick Link Type A-200 | |
| Maximum load WLL (5-fold): | 400 kg |
| Standard: | DIN 56927:2009-03, |
| Shape: | A – small opening |
| Opening: | 0-7,5 mm |
| Dimensions: | Length: 4,50 cm Width: 5,80 cm Depth: 2,70 cm Diameter: Ø 6 mm |
| Weight: | 30 g |
