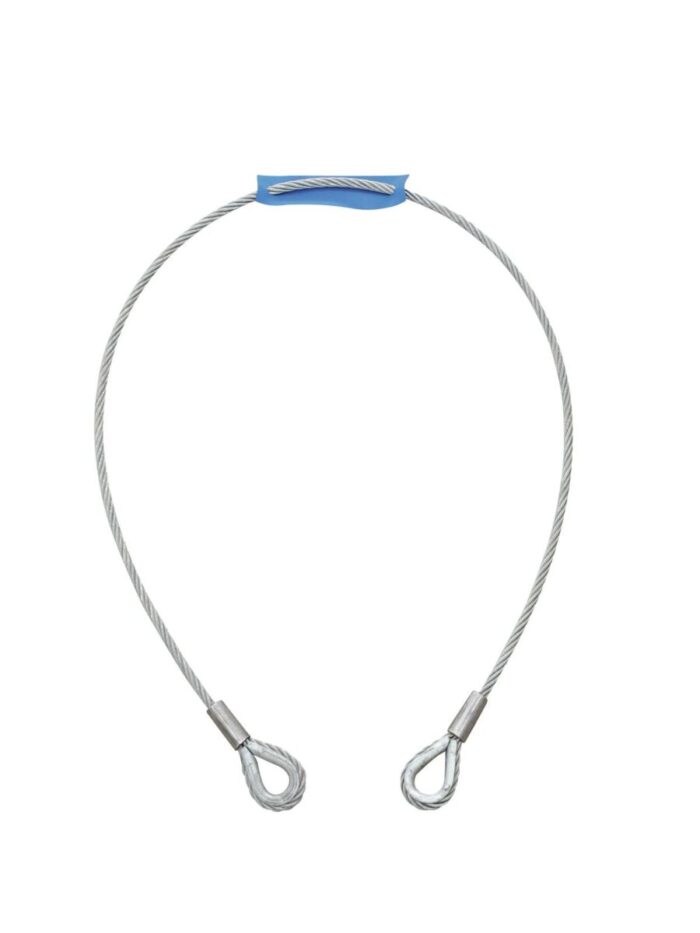

EUROLITE Steel Rope 1000x6mm silver with Thimble

Ettetellimisel
Ilma käibemaksuta 7.08€

8.64

The following rules are working:
  • Minimum quantity required for this product: 1
  • Cart must contain 1 items at least.
  • Minimum quantity required for category Turvatrossid: 1
Kogus
Tootekood: 5801048L Kategooria:
Ask for delivery time
×

    Küsi abi

    Henry-Mario

    [email protected]

    +372 5910 4087

    Tasuta tarne, kui e-poe tellimuse summa ületab 139€
    14-päevane raha tagasi garantii
    Kui kaup on laos, saad toote kätte järgmisel tööpäeval!

    EUROLITE Lifting ropes, safety bondsThe EUROLITE lifting ropes, safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The lifting ropes, safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.The lifting ropes, safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can install and secure loads above persons with these lifting ropes, safety bonds in all areas where the BGV C1 is required.Use as attachment gearThese ropes are stamped with a WLL describing the maximum load when used for general lifting purposes. For all areas where the BGV C1 is required, the correct lifting rope must be selected only by table 2 of BGI 810-3:2007-03. According to this table, the maximum load of this rope is 165 kg (single-stranded).Use as safety bondThe correct safety bond must be selected only by table 9 of BGI 810-3:2007-03. According to this table, the maximum load of this safety bond is 35 kg.

    Installation rope, safety bond, safety

    • Round strand rope 6 x 19 with fibre core
    • With two thimbles
    • Suitable for installing and securing loads above persons

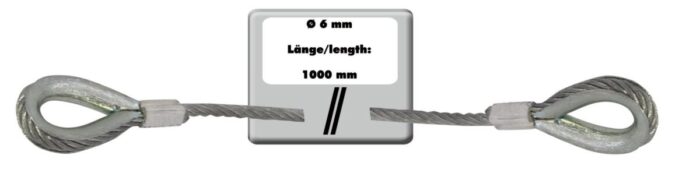

    • 6 x 1000 mm
    • WLL 400 kg

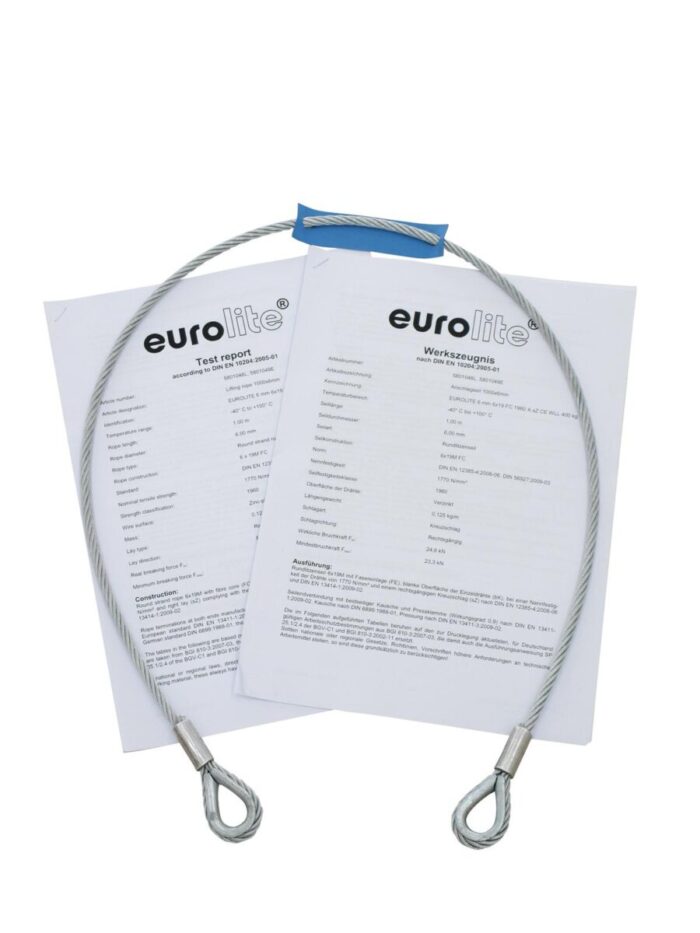

    • Test report according to DIN EN 10204 as download
    • Rope with thimble
    Maximum load WLL (5-fold): 400 kg
    Design of the core: 6 x 19 FC
    Strength classification: 1960
    Standard: DIN EN 12385-4:2008-06, DIN 56927:2009-03
    Nominal tensile strenght of rope: 1770 N/mm²
    Wire surface: Zinc-plated
    Color: Silver
    Temperature range: -40 °C – +100 °C
    Dimensions: Length: 1 m
    Diameter: Ø 6 mm
    Weight: 190 g
    Length weigth: 0,0554 kg/m
