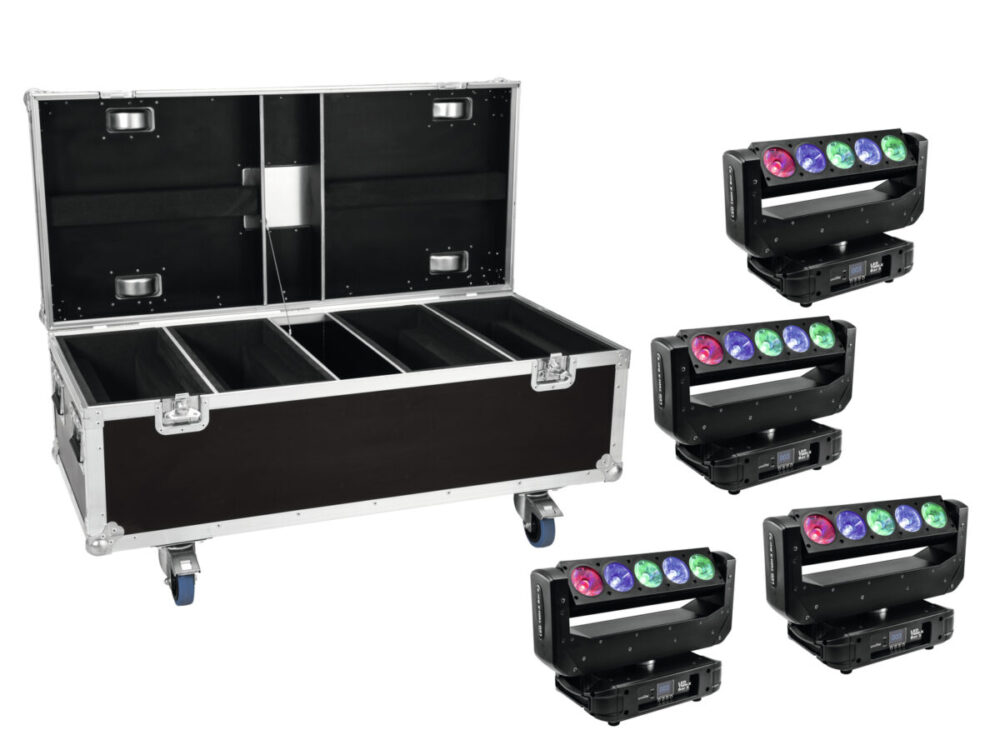

4x narrow angle LED Moving Bar with 5 RGBW LEDs including PRO flightcase with wheels
EUROLITE LED TMH-X Bar 5 Moving-Head Beam
Narrow beam LED Moving Bar with 5 RGBW LEDs (15 W each) and unlimited TILT
- Moving Beam bar equipped with five 15 W COB LEDs with RGBW colors
- Each LED can be controlled individually
- Narrow beam angle
- With Infinity function for unlimited TILT movement
- Positioning within 540° PAN and 360° TILT
- Automatic position correction for PAN
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Colored beams in red, green, blue and white
- Stepless RGBW color mixture
- Color presets
- Strobe effect with variable speed
- Internal programs
- Exact positioning via 16 bit PAN/TILT movement resolution
- Dimmer
- Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
- Switch-mode power supply for operation between 100 and 240 volts
- P-Con terminals for power linking up to 8 units
- LED: 5 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 16 32 CH mode
- The device is cooled by cooling fan
- Controlling by DMX Stand-alone Sound to light via Microphone
- Is in Light J Software EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- Effect: Fan effect
ROADINGER Flightcase 4x LED TMH-X Bar 5
PRO flightcase for 4 x Eurolite LED TMH-X Bar 5
- Suitable for four devices and accessories
- Interior upholstered with felt and foam
- High-quality workmanship with 7 mm multiplex birch wood, dark brown laminated
- Aluminum profile frames (30 mm) with rounded corners
- Medium-sized three-leg steel ball corners
- 4 castors Ø100 mm, 2 of which with locking brakes
- 4 stacking dishes for stacking the cases
- 2 high-quality butterfly locks
- 2 chrome tip-over locks
- 4 chrome case handles
- For optimal security
- Trademark hardware
- Transport aid: With wheels
- Made in Europe
| Weight: | 75,00 kg |
| EUROLITE LED TMH-X Bar 5 Moving-Head Beam | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 5 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 360° plus infinity |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: | 0 – 18 Hz |
| DMX channels: | 16 32 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX Stand-alone Sound to light via Microphone Light J Software EUROLITE LED PC-Control 512 software |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Beam angle (1/10 peak): | 7° |
| Illuminance in Lux (lx): | R red 3m: 1646 lx, 6m: 532 lx G green 3m: 4112 lx, 6m: 1249 lx B blue 3m: 1120 lx, 6m: 345 lx CW 3m: 6739 lx, 6m: 2089 lx All 3m: 10763 lx, 6m: 3175 lx |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 43 cm Depth: 19,5 cm Height: 30 cm |
| Weight: | 8,90 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| intended use: | show effect lighting |
| ROADINGER Flightcase 4x LED TMH-X Bar 5 | |
| Maximum load: | 100 kg |
| Material: | Birch multiplex, 7 mm |
| Color: | Black, laminated |
| Compartment dimensions: | 20,5 cm x 35 cm x 43,5 cm |
| Accessory compartment: | 13 cm x 36,5 cm x 47,5 cm |
| Dimensions: | Width: 1,15 m Depth: 52,5 cm Height: 53,5 cm |
| Weight: | 31,70 kg |
