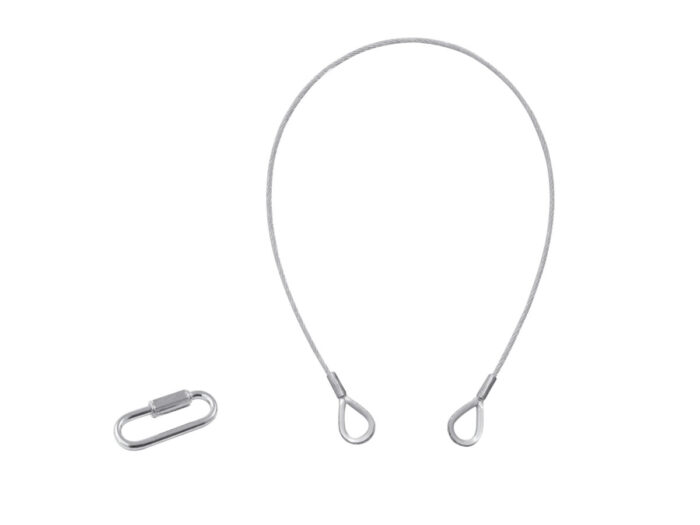

EUROLITE Steel Rope 600x3mm silver with Thimbles
Installation rope, safety bond, safety
- Round strand rope 6 x 19 with fibre core
- With two thimbles
- Suitable for installing and securing loads above persons
- 3 x 600 mm
- WLL 100 kg
- Test report according to DIN EN 10204 as download
- Rope with thimble
EUROLITE Quick Link Type B-90
Quick link
- Form B (long)
- Galvanized
- Identification number: 90
- Stamp: DIN 56927 B 90
- Test report according to DIN EN 10204 as download
| Weight: | 50 g |
| EUROLITE Steel Rope 600x3mm silver with Thimbles | |
| Maximum load WLL (5-fold): | 100 kg |
| Design of the core: | 6 x 19 FC |
| Strength classification: | 1960 |
| Standard: | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Wire surface: | Zinc-plated |
| Color: | Silver |
| Temperature range: | -40 °C – +100 °C |
| Dimensions: | Length: 60 cm Diameter: Ø 3 mm |
| Weight: | 30 g |
| Length weigth: | 0,0311 kg/m |
| EUROLITE Quick Link Type B-90 | |
| Maximum load WLL (5-fold): | 180 kg |
| Standard: | DIN 56927:2009-03, |
| Shape: | B – big opening |
| Opening: | 0-11,5 mm |
| Dimensions: | Length: 4,50 cm Diameter: Ø 4 mm |
| Weight: | 20 g |
