Approved safety bond
- Rope with thimble and connector

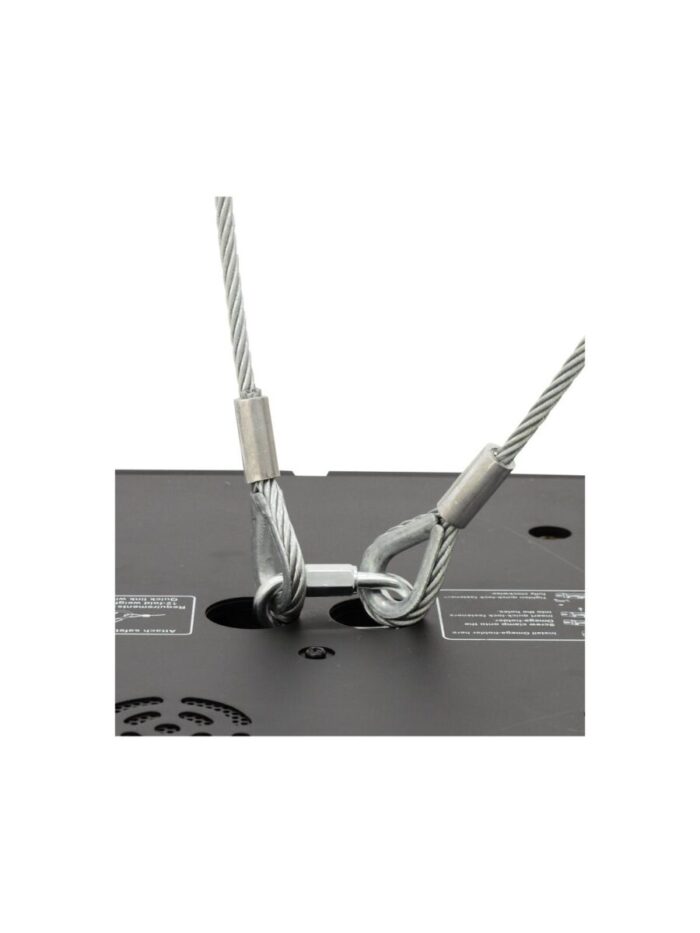

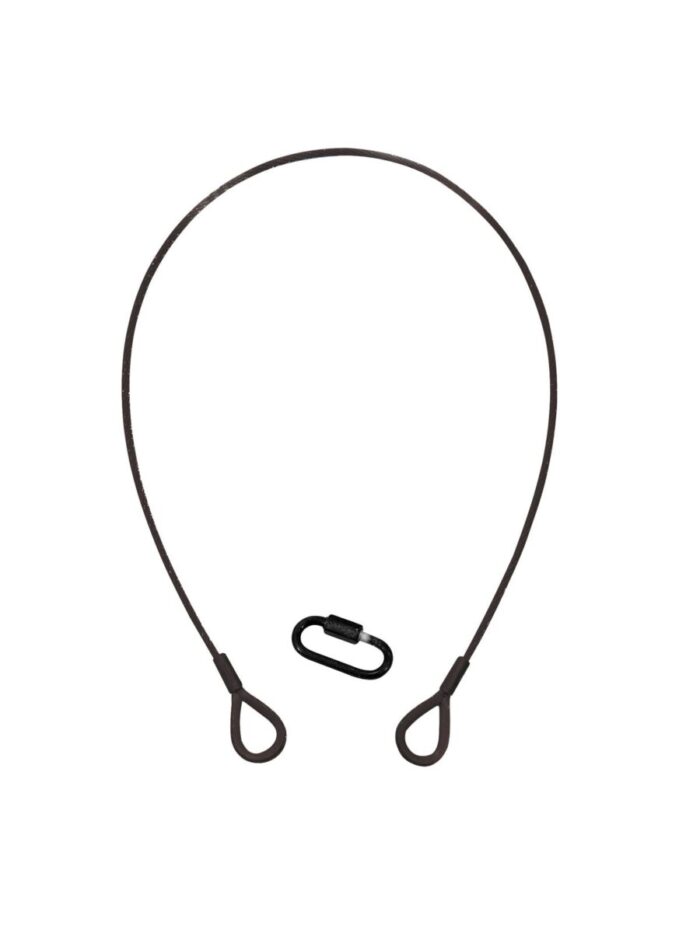

EUROLITE Steel Rope (SC) 600x3mm black with thimbles
Installation rope, safety bond, safety
- Round strand rope 6 x 19 with steel core
- With two thimbles
- Suitable for installing and securing loads above persons
- 3 x 600 mm
- WLL 100 kg
- Rope with thimble
EUROLITE Quick Link Typ A-50 black
Quick link
- Form A (short)
- Galvanized
- Identification number: 50
- Stamp: DIN 56927 A 50
- Test report according to DIN EN 10204 as download
| Secured weight (BGV C1): | Max. 5 kg |
| Strength classification: | 1770 |
| Temperature range: | -40 °C – +100 °C |
| Weight: | 60 g |
| EUROLITE Steel Rope (SC) 600x3mm black with thimbles | |
| Maximum load WLL (5-fold): | 100 kg |
| Design of the core: | 6 x 19 WSC |
| Standard: | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Wire surface: | Zinc-plated |
| Color: | Black |
| Temperature range: | -40 °C – +100 °C |
| Dimensions: | Length: 60 cm Diameter: Ø 3 mm |
| Weight: | 50 g |
| Length weigth: | 0,0311 kg/m |
| EUROLITE Quick Link Typ A-50 black | |
| Maximum load WLL (5-fold): | 100 kg |
| Standard: | DIN 56927:2009-03, |
| Shape: | A – small opening |
| Opening: | 0-5,5 mm |
| Dimensions: | Length: 2,90 cm Width: 3,50 cm Depth: 1,90 cm Diameter: Ø 3 mm |
| Weight: | 10 g |
