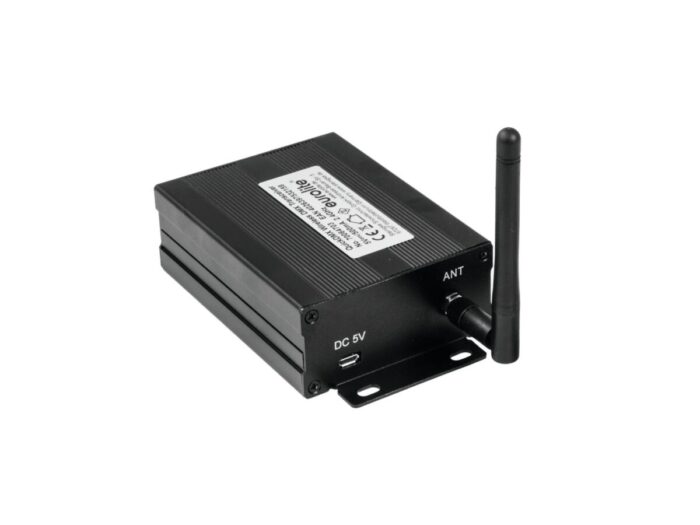

Wireless DMX system 2.4 GHz

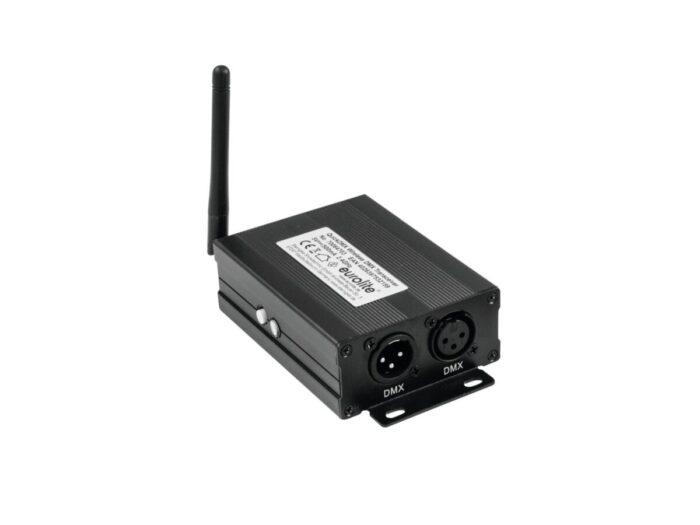

- DMX input and output, 3-pin XLR
- Auto-switching transceiver
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX units
- LED indication for functions
- Micro USB port PSU included
- 2.4 GHz ISM band – license-free worldwide
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Controlling by DMX QuickDMX built-in
- Use a operating range up to 400m
| Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 500 mA |
| IP classification: | IP20 |
| Power connection: | Mains input Micro USB (F) mounting version Power supply cord for USB A mains connection (provided) |
| DMX channels: | Input 512 Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX QuickDMX built-in |
| Carrier frequency: | 2,4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitter |
| Range: | 400 m |
| Color: | Black |
| Dimensions: | Width: 21,2 cm Depth: 10 cm Height: 7,5 cm |
| Weight: | 290 g |
