EUROLITE QuickDMX Wireless Receiver

Compact DMX Wireless System 2.4 GHzThe Eurolite QuickDMX transmitter and receiver is used for wireless transmission of DMX512 signals. The complete technology is integrated in an extended 3-pole XLR connector (female) with a rotatable antenna. The device is constructed as a transceiver, so it can be used as any transmitter and receiver. The use of this device eliminates the necessity of time-consuming cabling between the DMX lighting control unit and the DMX-controlled devices.Due to the GFSK technology (Gaussian Frequency Shift Keying), interference-free operation is also possible besides other wireless Bluetooth and WiFi devices.The range is up to 400 meters with visual contact.Setup is very easy via Plug & Play with a button for connecting and disconnecting QuickDMX receivers.

Compact wireless DMX receiver 2.4 GHz

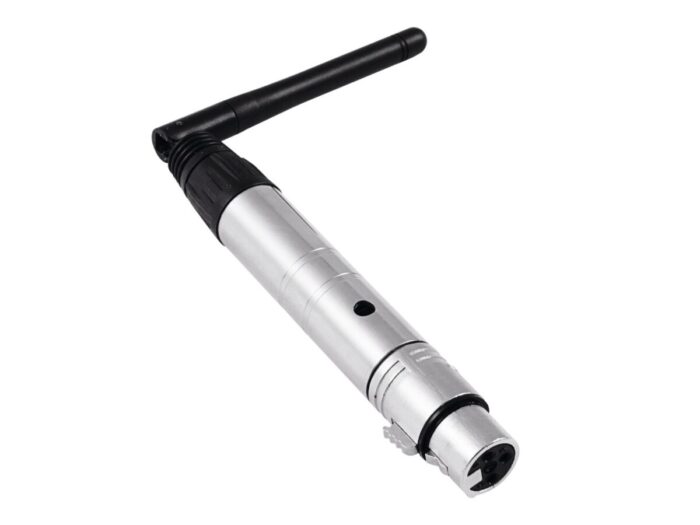

• User-friendly 3-pin XLR plug (female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver

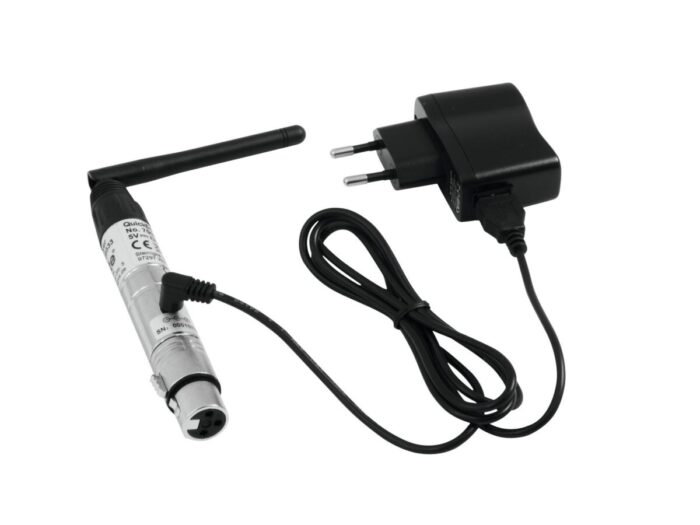

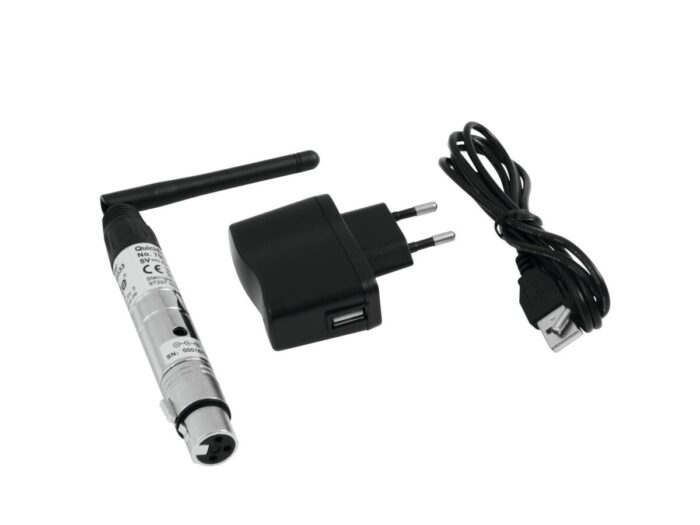

• Powered via included PSU
• 2.4 GHz ISM band – license-free worldwide
• Can receive and process up to 512 DMX channels
• Controlling by QuickDMX built-in
• Use a operating range up to 400m
