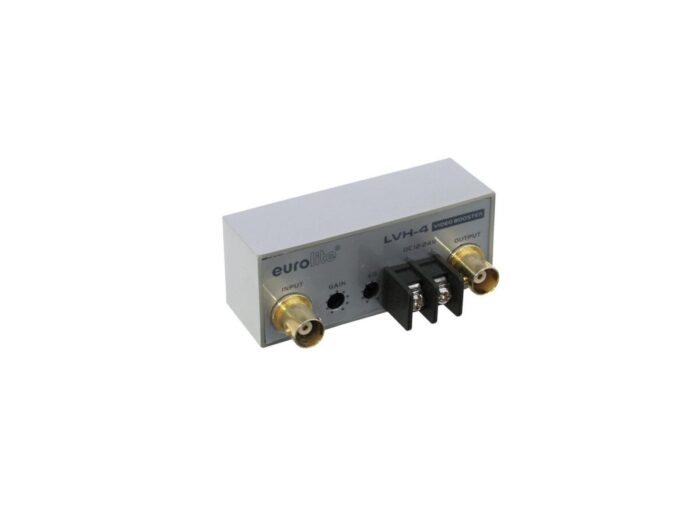

The Video Booster amplifies your signal to keep the quality high even over long distances of up to 600 meters. Of course, it can also be used to amplify a naturally weak signal to reach the desired quality standard. All this comes in an extremely compact design.
Video line amplifier with equalizer
- Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
- 75 ohms input and outputs via BNC plugs
- Separate controls for amplification and equalization
- 12-24 V AC/DC power supply via signal source or external source (not included)
- Ultra compact
| Power supply: | 12-24 V DC 30 mA 12-24 V AC 30 mA |
| S/N ratio: | >70 dB |
| Dimensions: | Width: 7,6 cm Depth: 4,1 cm Height: 3,1 cm |
| Weight: | 70 g |
| 1 x video input: | 1 Vpp/ 75 ohms, BNC |
| 1 x video output: | 1 Vpp/ 75 ohms, BNC |
| Gain: | adjustable to +5 dB |
| Bandwidth: | 10 MHz |
| Equalization adjustment: | 0 dB to +4 dB/ 3.58 MHz |
| 0 dB to +7 dB/ 5 MHz |
