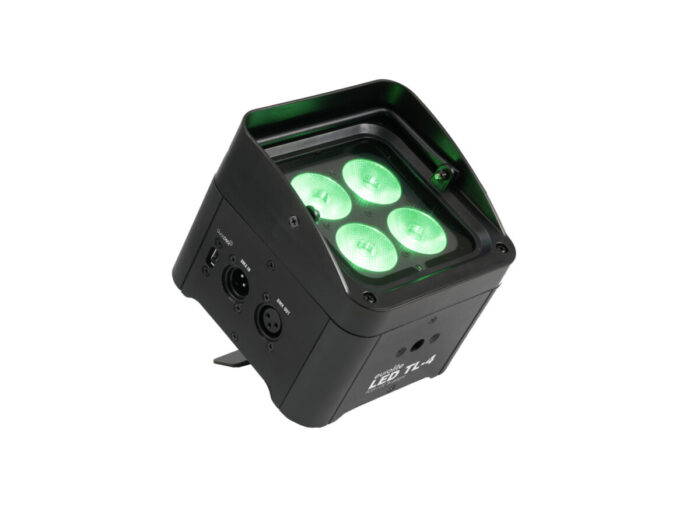

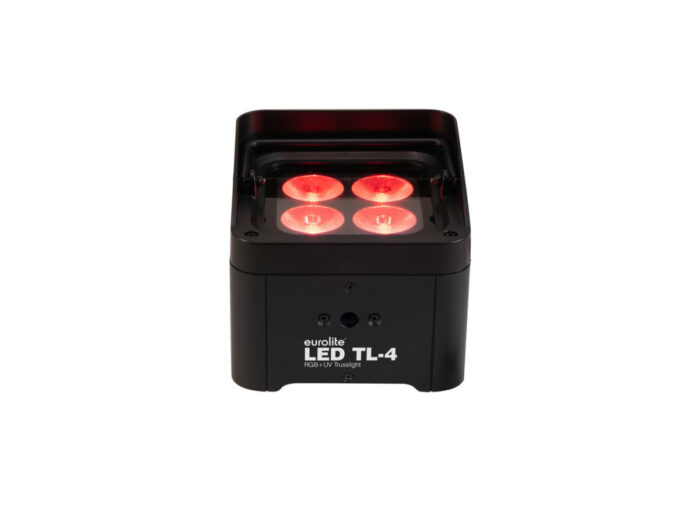

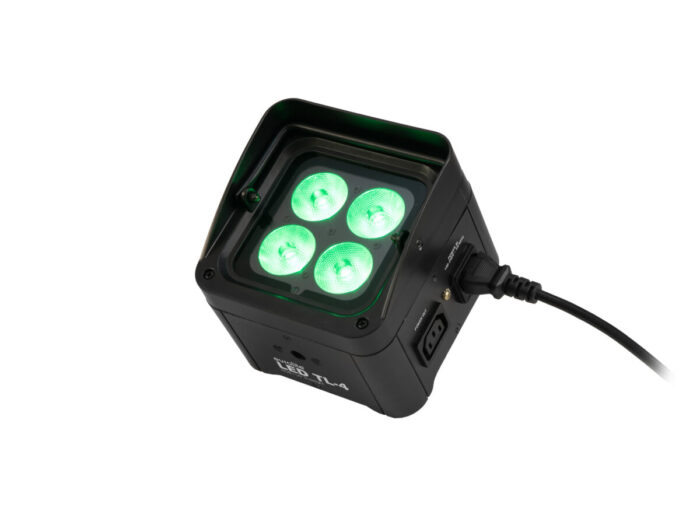

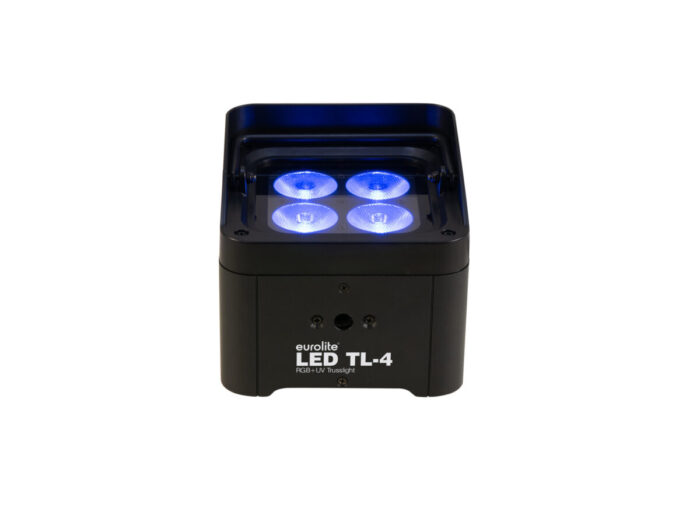

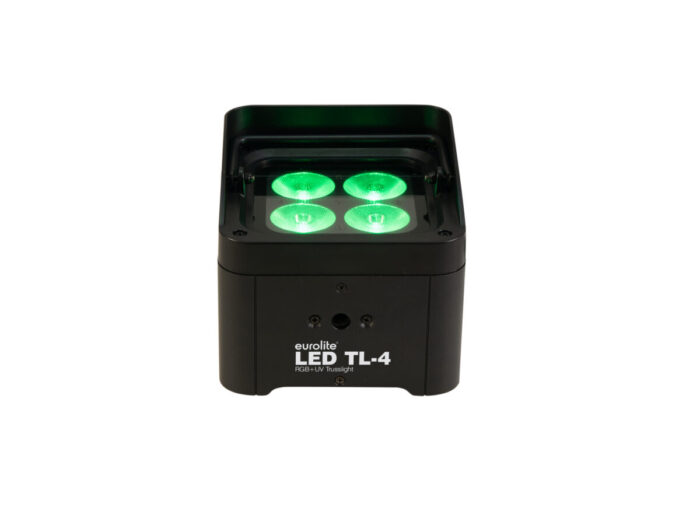

Variable truss light and uplight with bright 4 x 8 W RGB+UV LED
- Compact and bright, making it perfect for truss installation
- Equipped with 4 x 8 W 4in1 LED in the colors red, green, blue and UV
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Built-in auto and music show programs
- Direct color selection for 18 preset colors
- Functions: static colors, stepless RGB+UV color mixture, internal programs, dimmer, strobe effect with variable speed, Master/Slave operation
- Flicker-free projection
- Supports QuickDMX – the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- DMX control via any standard DMX controller
- Addressing via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-7
- Ideal for booth construction, stages and anywhere trussing is used
- Perfect for ALUTRUSS 4-POINT SYSTEM QUADLOCK
- Hanging as well as standing installation possible
- M10 threaded insert for suspended installation
- Folding foot adjustable in 5 steps for flexible placement
- Additional rubber feet when the spot shall be positioned on the floor
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 4 x high-power 8 W 4in1 QCL RGB/UV (homogenous color mix)
- Can be operated in 3 4 4 8 CH mode
- The device is cooled by passive convection
- Controlling by DMX QuickDMX via USB (optional) Sound to light via Microphone IR remote control included
- Is in Light J Software EUROLITE LED PC-Control 512 software EASY SHOW LED EASY OPERATOR DELUXE already preprogrammed
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| LED: | 4 x high-power 8 W 4in1 QCL RGB/UV (homogenous color mix) |
| Flash rate: | 0 – 20 Hz |
| DMX channels: | 3 4 4 8 |
| DMX input: | 1 x USB, type A 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | DMX QuickDMX via USB (optional) Sound to light via Microphone IR remote control included Light J Software EUROLITE LED PC-Control 512 software EASY SHOW LED EASY OPERATOR DELUXE |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Beam angle (1/10 peak): | 30° |
| Housing color: | Black |
| Dimensions: | Length: 15,5 cm Width: 14,5 cm Height: 13,0 cm |
| Weight: | 1,56 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| intended use: | show effect lighting |
