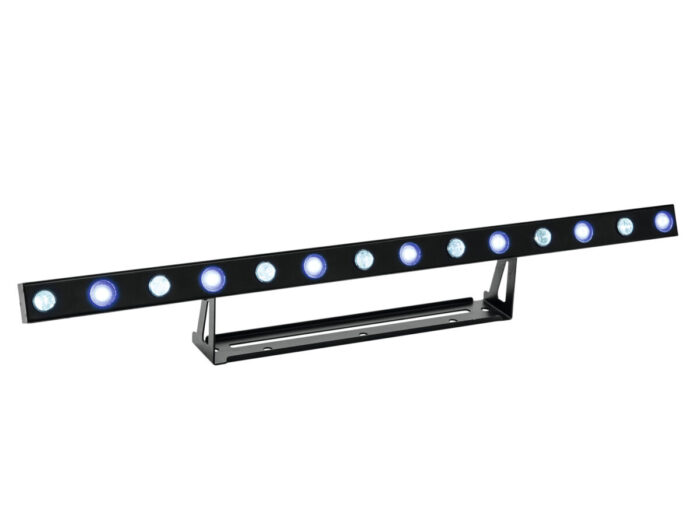

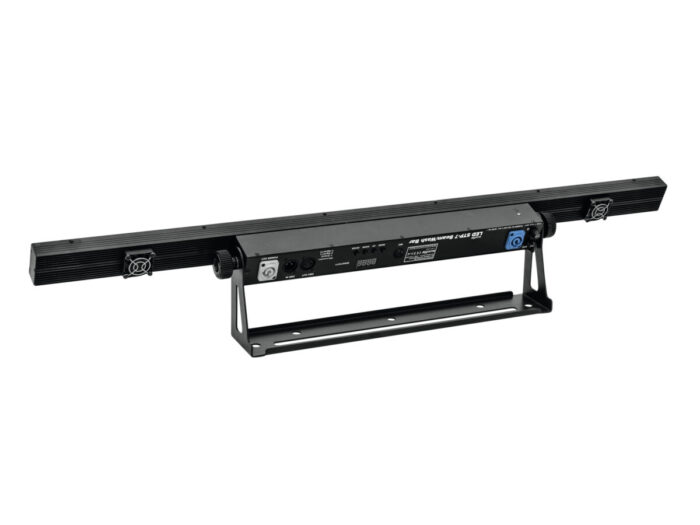

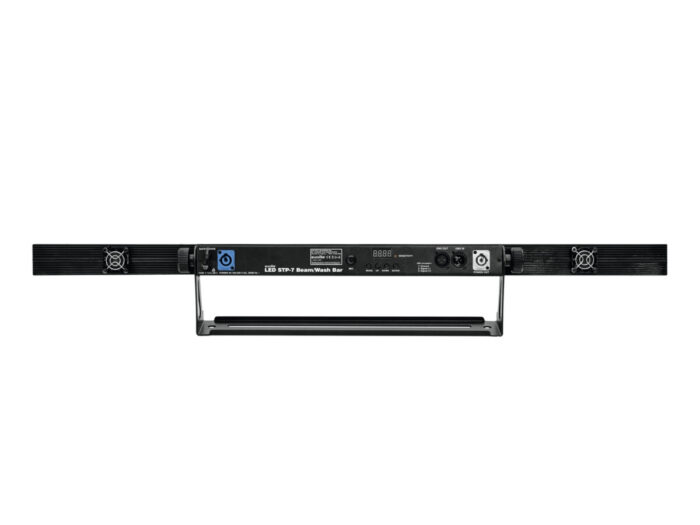

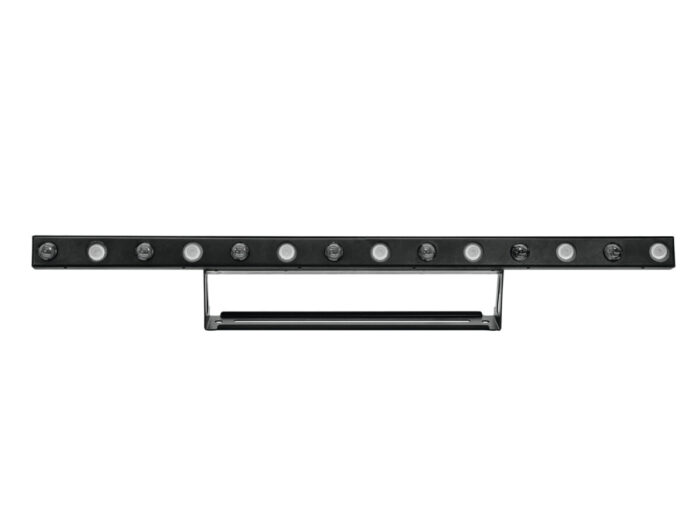

EUROLITE LED STP-7 Beam/Wash Bar

Beam and wash in one barNarrow and wide beams: with the STP-7 light bar from Eurolite, you kill two birds with one stone. This gives you the flexibility to create different moods with just one device. Light bars are indispensable on many stages. They are used, for example, as uplights, blinders or front lights. However, most bars radiate with only one fixed beam angle – not the STP-7. Different LEDsThe light bar combines wide-angle LEDs for mood lighting and very tight-angle LEDs for beams and structures. 7 LEDs are used for each of the different versions. The first have a beam angle of 40°. Thanks to RGB color mixing, you can create a colorful atmosphere. From this basic mood, the other LEDs then shoot narrow, white beams with an angle of 2° into the room. The latter can also be controlled individually to make your shows more versatile and flexible. Intelligent design without gapsThe bar is one meter long and weighs 4 kilograms. Beam and wash LEDs are arranged in alternating order. The design of the bar allows you to connect several devices without gaps. These then look like one large bar. A generous bracket with various mounting positions is available for mounting. You can also use this as a stand. The power connection is made via a P-Con connection, the signal can be looped through. The DMX connections are three-pole. Select your control unitThe bar offers 6 different DMX modes. In addition, you can select different colors and color mixes directly on the bar. You will also find various stand-alone and music-controlled programs that run automatically. Synchronize several bars in the self-running modes by connecting them according to the master/slave principle.

LED light bar with 7 LEDs for beam and 7 LEDs for wash effects

• Operable in stand-alone mode or via DMX
• Each beam LED can be controlled individually via DMX
• Addressing and setting via control panel with 4-digit LED display
• Functions: Static colors, RGB color blend, built-in show programs in auto and sound control modes, dimmer and strobe settings, Master/Slave
• 7 cold white 3 W LEDs for beam effects (beam angle 2°)
• 7 powerful 7 W RGB LEDs (3in1) for wash effects (beam angle 40°)
• Hanging as well as standing installation possible
• Locking possibility at the mounting bracket
• P-Con terminals for power linking up to 8 units
• Switch-mode power supply for operation between 100 and 240 volts
• LED: 7 x high-power 3 W CW
• LED: 7 x high-power 7 W 3in1 TCL RGB (homogenous color mix)
• Can be operated in 3 6 4 10 12 15 CH mode
• The device is cooled by cooling fan
• Controlling by Stand-alone DMX Sound to light via Microphone
• Is in Light J Software EUROLITE LED PC-Control 512 software already preprogrammed
• Effect: Strobe effect
