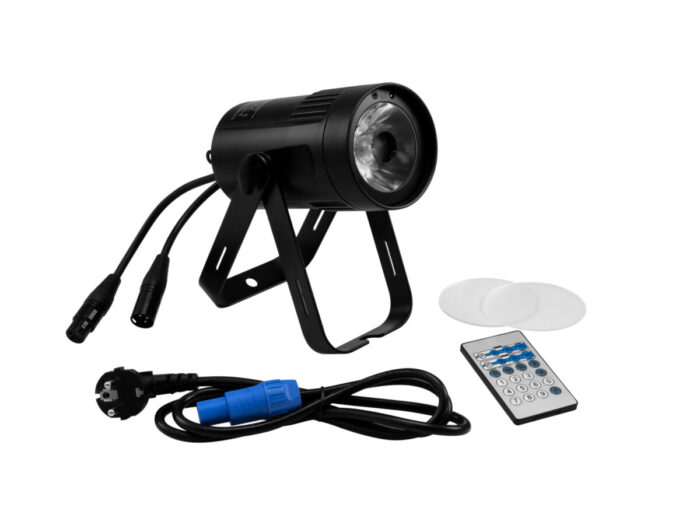

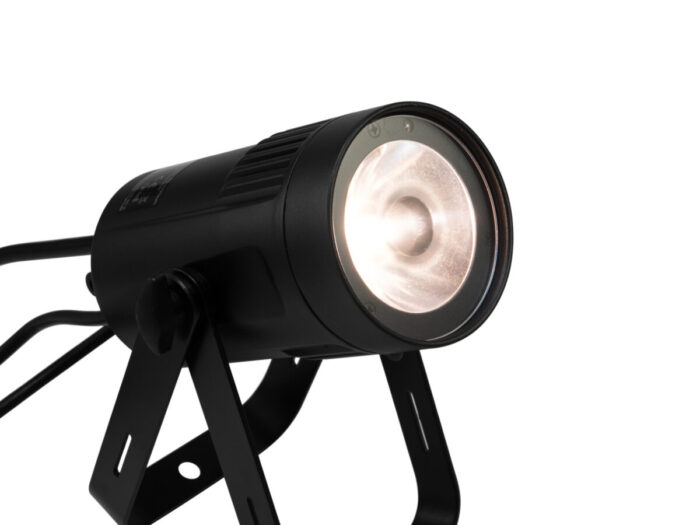

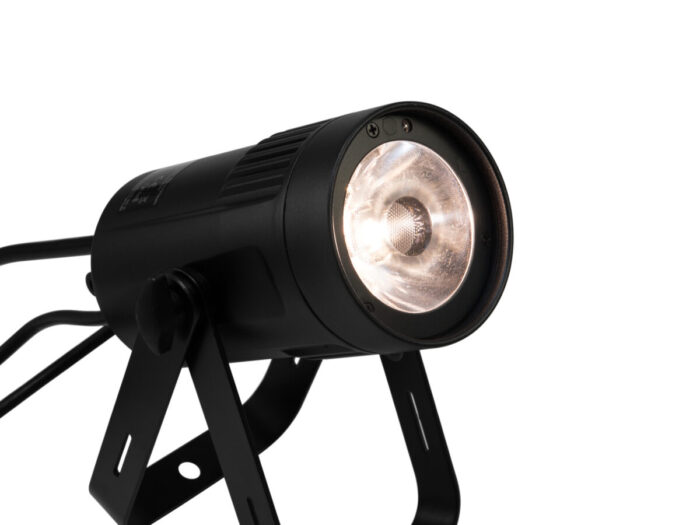

DMX-pinspot with warm white 15 W LED, beam angles 4°/10°/25° (frost filter)
- Operable in stand-alone mode or via DMX
- Convenient wireless control via included IR remote control EUROLITE IR-Remote 2
- 1 high-power warm white 15 W COB LED
- CRI of >90
- Functions: dimmer, strobe effect, Master/Slave
- Addressing and setting via Control Board with OLED display and four operating buttons
- Dimmer speed (step response) adjustable
- Ideal as floor spot via additional bracket
- Locking possibility at the brackets

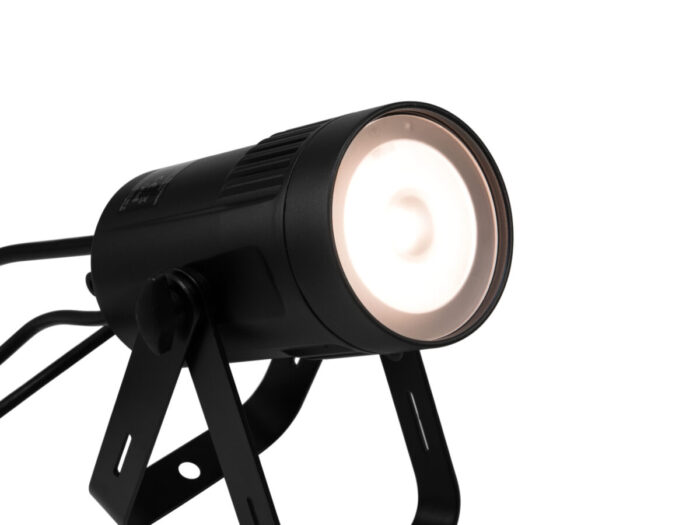

- 2 frost filters (10° and 25°) for a softer beam included in delivery

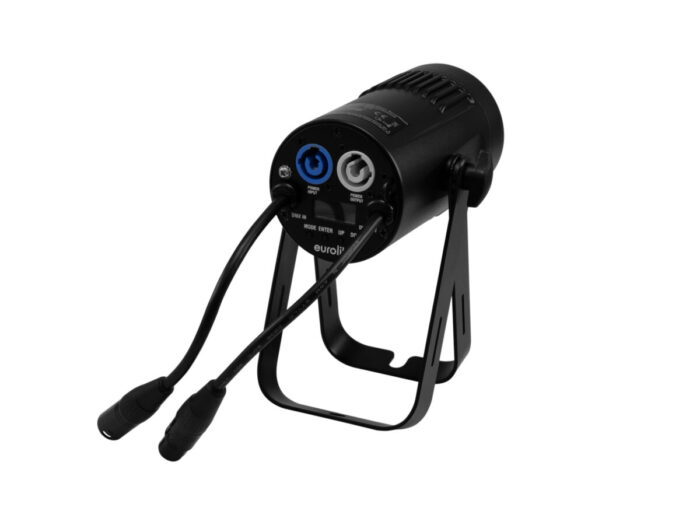

- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 1 x high-power 15 W WW
- Can be operated in 1 2 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone DMX IR remote control RDM
- Is in Light J Software EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- Effect: Strobe effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 18 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 1 x high-power 15 W WW |
| Color temperature: | 3100K |
| DMX channels: | 1 2 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone DMX IR remote control RDM Light J Software EUROLITE LED PC-Control 512 software |
| Color rendering index (CRI) more than: | 90 Ra |
| Beam angle: | 4° |
| Beam angle (1/2 peak): | 4° 10° 25° |
| Beam angle (1/10 peak): | 7° |
| Housing color: | Black |
| Dimensions: | Width: 13,5 cm Depth: 17,5 cm Height: 20,5 cm |
| Weight: | 1,45 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| intended use: | show effect lighting |
