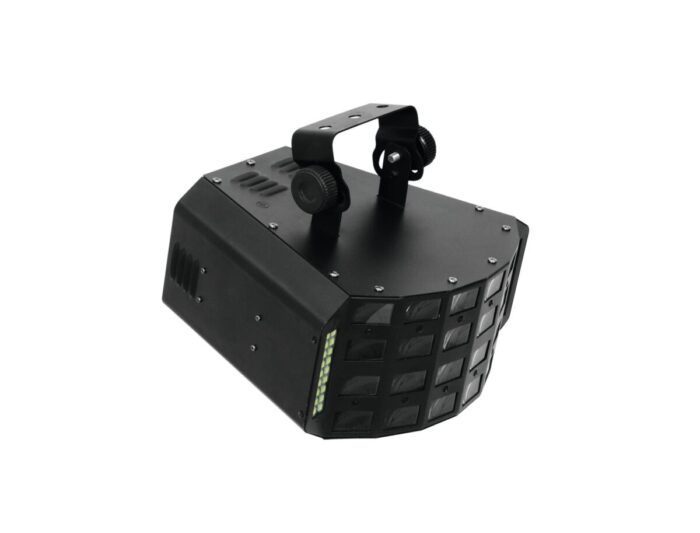

The LED D-30 Beam Effect by Eurolite comes equipped with six 3-watt LEDs in the colors red, green, blue, amber and pink as well as 36 cold white SMD LEDs creating dynamic strobe and derby effects. The LED D-30 works with 3 preset programs. In the automatic mode, the preset light programs are played fully automatically without any further adjustments on your part. Alternatively, you can choose the sound-controlled mode via the built-in microphone with adjustable sensitivity. In this mode, the multi-color beams change direction with each bass beat.You can also operate multiple devices in sync using the master/slave mode. Apart from the preset programs, the LED D-30 can also be controlled via 4 or 13 DMX channels. For the addressing and settings you can either use the 4-digit LED display and operating buttons on the rear of the device or the supplied IR remote control.
DMX lighting effect with RGBWAP derby, white strobe LEDs, and IR remote control
- Derby effect with rotating beams in different color combinations
- Absolute eyecatcher
- 6 high-power 3 W RGBAWP LEDs (6in1) are arranged behind the lenses
- 2 side strips with 36 cold white LEDs provide fast, dynamic strobe ffects
- Operable in stand-alone mode or via DMX
- Adjustable microphone sensitivity via control board
- The colorful beams change their direction of movement at every bass-beat in sound controlled mode
- Comfortable addressing and setting via control panel with LED display and four operating buttons
- Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
- Functions: Static colors, RGBAWP color blend, auto mode, internal programs, dimmer and strobe settings via DMX, Master/Slave
- Equipped with 6 x 3 W RGBAWP LEDs as well as 36 x SMD LEDs in white
- Locking possibility at the mounting bracket
- Switch-mode power supply for operation between 100 and 240 volts
- IEC Power cord with safety-plug included in delivery
- LED: 36 x SMD 5050 CW
- LED: 6 x high-power 3 W 6in1 HCL RGBWAP
- Can be operated in 4 13 CH mode
- Controlling by Stand-alone DMX Sound to light via Microphone
- Is in Light J Software EUROLITE LED PC-Control 512 software already preprogrammed
- Effect: Multi beam effect Strobe effect
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 36 W |
IP classification: | IP20 |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Lamp type: | LED lamp |
LED: | 36 x SMD 5050 CW 6 x high-power 3 W 6in1 HCL RGBWAP |
DMX channels: | 4 13 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Control: | Stand-alone DMX Sound to light via Microphone Light J Software EUROLITE LED PC-Control 512 software |
Beam angle: | 120° |
Beam angle (1/2 peak): | 120° |
Housing color: | Black |
Dimensions: | Width: 28,0 cm Depth: 29,0 cm Height: 19,0 cm |
Weight: | 2,40 kg |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Legal specifications | |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
