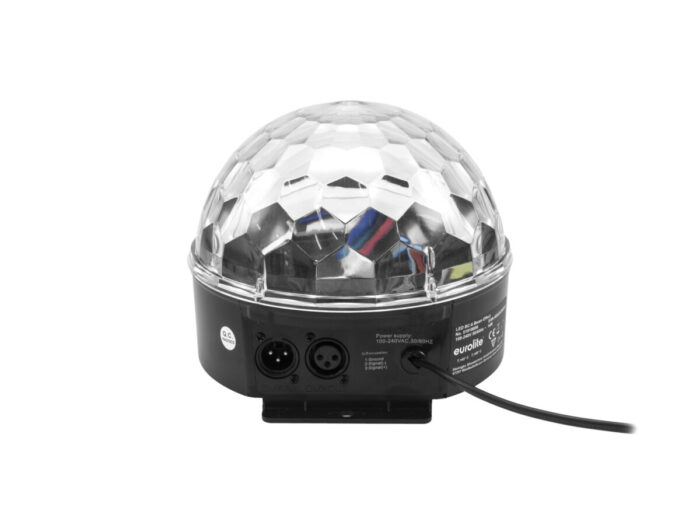

The LED BC-6 Beam Effect by Eurolite offers stunningly bright and room-filling color effects and multiple functions:The acrylic glass dome with six bright LEDs in the colors red, green, blue, amber and white produces circular light effects with thrilling color mixtures, rapid color changes, dimmed light as well as dynamic strobe effects – easily controllable in stand-alone, master/slave, automatic, DMX (9 DMX channels) or sound control mode via the integrated microphone. Motor rotation can be manually adjusted between 0 and 50 rotations per minute. Thanks its ultralight plastic enclosure, you can easily take this effect with you and set it up everywhere. The base plate also allows for wall mounting.
Compact mirror ball effect with a radiating dome and DMX
- Clear, faceted surface provides for unique beam effects
- Equipped with bright red, green, blue, amber and white LEDs
- 10 to 50 rotations (180°) per minute produce circular light plays
- Operable in stand-alone mode or via DMX
- DMX-512 control possible via any commercial DMX-controller (occupies 9 channels)
- Comfortable addressing and setting via control panel with 4-digit LED screen and four operating buttons
- Functions: stepless color change color fade internal programs dimmer, strobe settings, motor rotation and speed adjustable via stand-alone mode and via DMX Master/Slave
- Memory function
- Plastic housing with mounting brackets
- Switch-mode power supply for operation between 100 and 240 volts
- Ready for connection via power cord with safety plug
- LED: 6 x high-power 1 W R/G/B/W/A
- Can be operated in 9 CH mode
- The device is cooled by cooling fan
- Controlling by Stand-alone DMX Sound to light via Microphone
- Is in EUROLITE LED PC-Control 512 software already preprogrammed
- Effect: Flower effect
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 14,00 W |
IP classification: | IP20 |
Protection class: | Class II |
Power connection: | Fixed Power supply cord with Euro plug |
Cable length: | Approx. 0,9 m |
Lamp type: | LED lamp |
LED: | 6 x high-power 1 W R/G/B/W/A |
Rotation: | 50 RPM – 10 RPM , 180 ° |
DMX channels: | 9 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone DMX Sound to light via Microphone EUROLITE LED PC-Control 512 software |
Housing color: | Black |
Display type: | 4 digits 7-segment LED display |
Dimensions: | Width: 18,5 cm Depth: 18,5 cm Height: 15 cm |
Weight: | 530 g |
Legal specifications | |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
