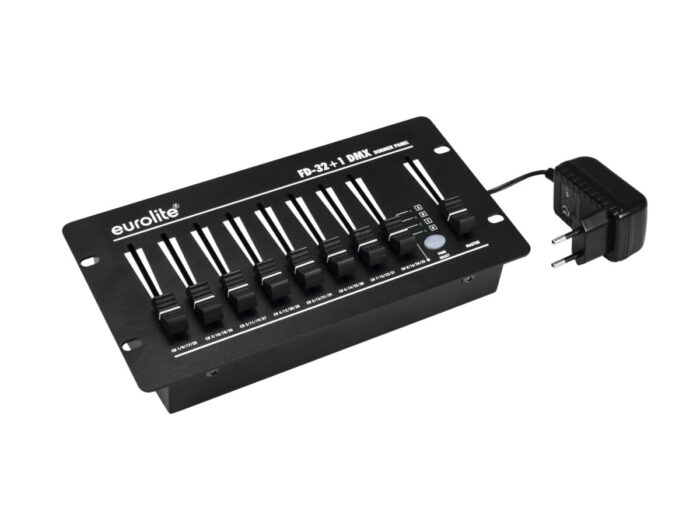

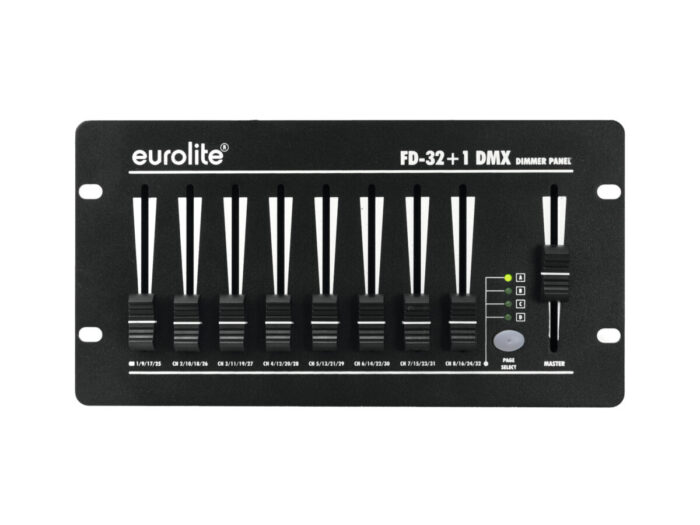

Basic DMX controller for 32 channels with master fader
- Basic DMX controller for convenient operation of light effect units with DMX512 interface (e.g. spotlights and dimmers)
- Simply connect and operate, requires no extensive programming
- 8 channel faders for adjusting the DMX values in 4 groups
- 1 master fader
- Compact design
- 3-pin XLR connector
- Power supply via included power unit or 9 V battery (not included)
- Can transmit up to 32 DMX channels
- Controlling by DMX
- Desktop console housing
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC |
| Power consumption: | 7,2 W |
| IP classification: | IP20 |
| Protection class: | Class III |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Battery: | 1 x 9.0 V E block |
| DMX channels: | Output 32 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX |
| Housing color: | Black |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 12 cm Depth: 23 cm Height: 6,5 cm |
| Weight: | 1,06 kg |
