EUROLITE DMX Split 8X Splitter

Ettetellimisel
Ilma käibemaksuta 175€

210.00 sh. KM 20%

The following rules are working:
  • Minimum quantity required for this product: 1
  • Cart must contain 1 items at least.
  • Minimum quantity required for category DMX splitterid: 1
Kogus
Kogus
Tootekood: 70064825 Kategooria:
Küsi tarneaega
×

    Küsi abi

    Henry-Mario

    henry@gearstation.eu

    +372 5910 4087

    Tasuta tarne, kui tellimuse summa ületab 300€
    14-päevane raha tagasi garantii
    Kui kaup on laos, saad toote kätte järgmisel tööpäeval!

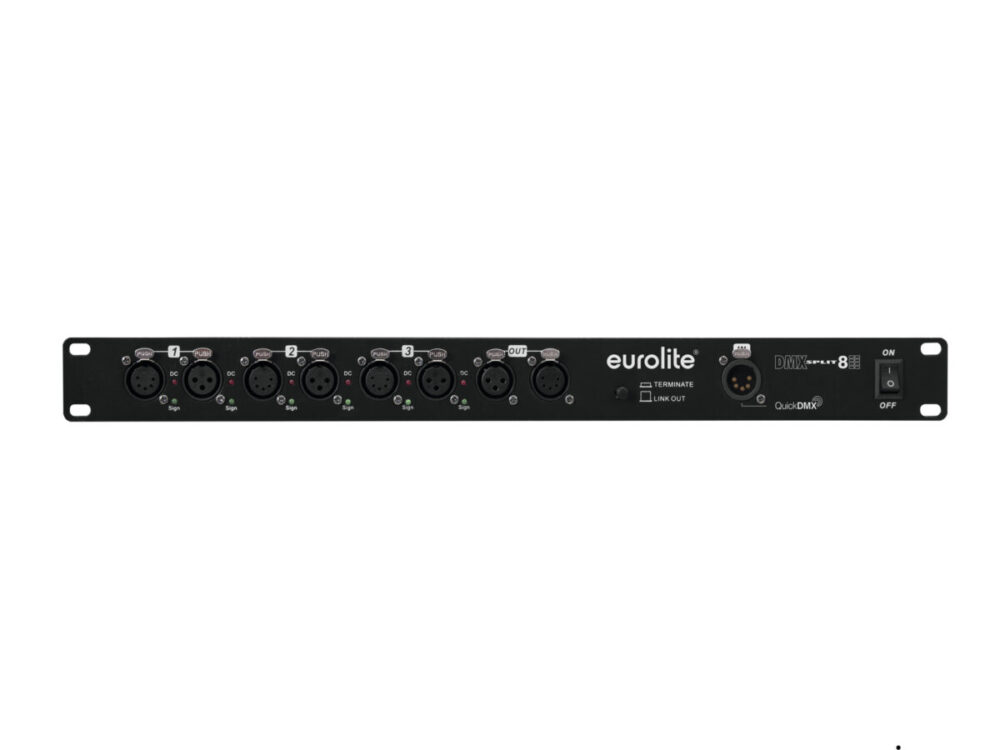

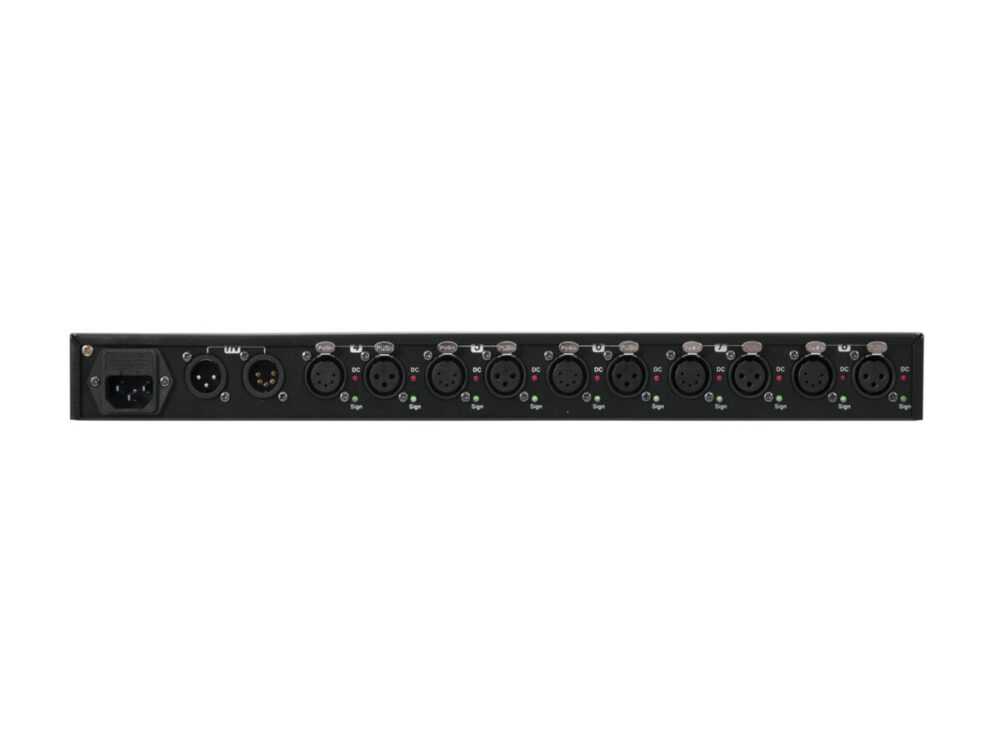

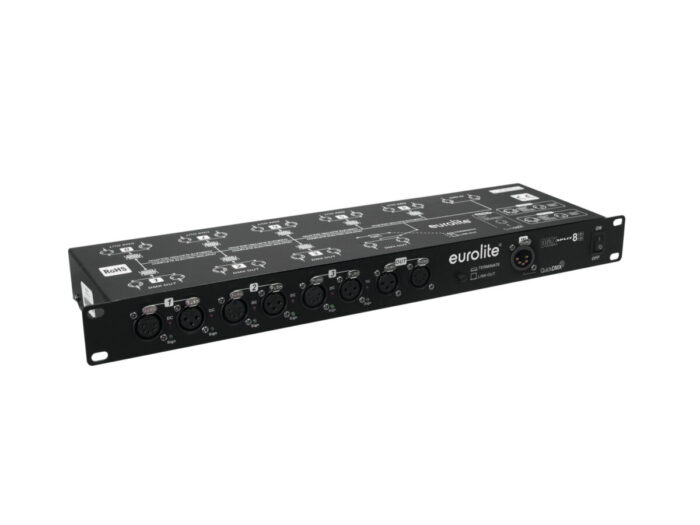

    Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets

    • DMX splitter for splitting one DMX input signal to 8 DMX outputs
    • Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
    • Additional QuickDMX input for wireless reception of DMX signals
    • Input and outputs XLR 3-pin and 5-pin each
    • Input and outputs galvanically isolated
    • Each DMX output with independent driver and status indicators
    • Input and outputs with a set of respective power supply and internal fuse
    • Switchable termination resistor
    • Rack mounting
    • Controlling by DMX QuickDMX via 5-pin XLR (M) mounting version (optional)
    Power supply: 100-240 V AC, 50/60 Hz
    Power consumption: 5 W
    Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
    DMX input: 1 x 3-pin XLR (M) mounting version
    1 x 5-pin XLR (M) mounting version
    DMX output: 8 x 3-pin XLR (F) mounting version Separate (galvanic)
    8 x 5-pin XLR (F) mounting version Separate (galvanic)
    1 x 5-pin XLR (F) mounting version Bypass
    1 x 3-pin XLR (F) mounting version Bypass
    Control: DMX QuickDMX via 5-pin XLR (M) mounting version (optional)
    Control elements: Bypass/terminating resistor Schalter, power switch
    Dimensions: Width: 48,3 cm
    Depth: 14,5 cm
    Height: 4,45 cm
    Weight: 2,22 kg
