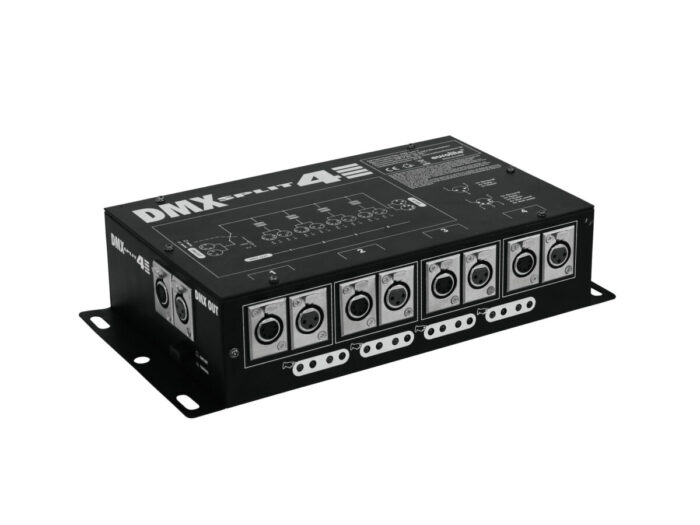

Splitter with 4 galvanically isolated outputs, 3-pin & 5-pin XLR sockets
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Connections: 1 x DMX input, 1 x DMX feed-through output, 4 x DMX output
- Input and outputs galvanically isolated
- Connections XLR 3-pin and 5-pin
- Each DMX output with independent driver and status indicators
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 20 W |
| Power connection: | Fixed Power supply cord with safety plug |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass |
| Control elements: | Bypass/terminating resistor Schalter, power switch |
| Dimensions: | Width: 32,5 cm Depth: 19 cm Height: 8 cm |
| Weight: | 2,33 kg |
