Art-Net interface for output of 8 universes on XLR
- Distributes Art-Net data to 8 DMX512 universes (4096 channels)
- Parallel DMX input possible (1024 channels)
- 8 optically isolated XLR plugs (3-pin) for DMX output
- 2 XLR jacks (3-pin) for DMX input
- Variable data routing capabilities for all DMX outputs
- 2 x Ethernet in/through port
- Serial connection possible

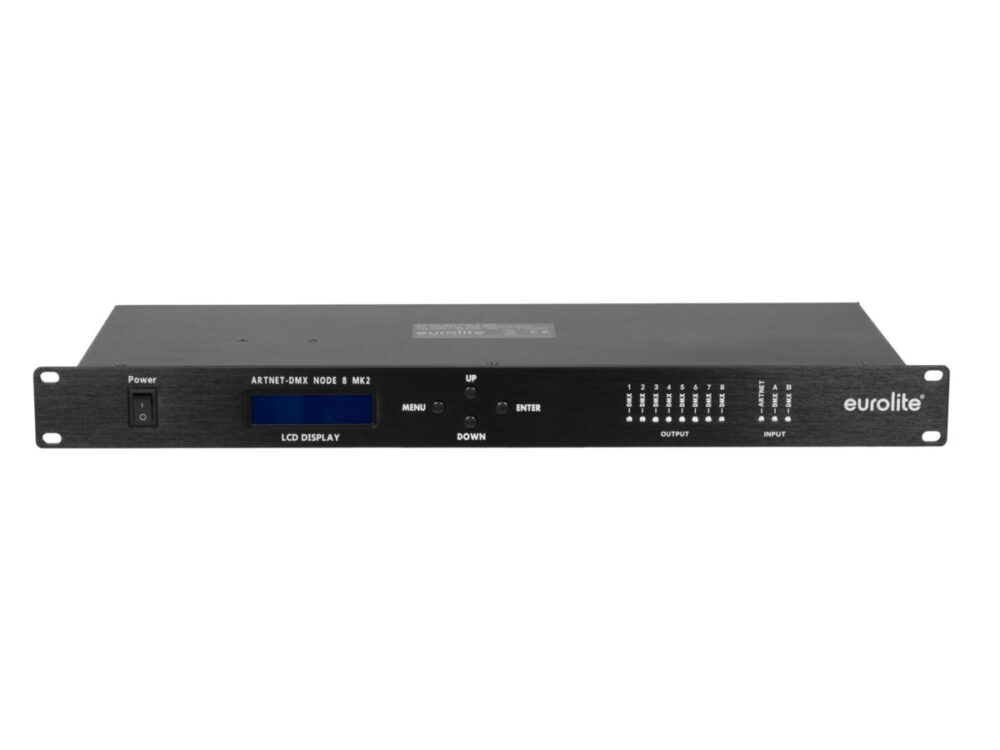

- User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
- LED indication for functions
- Splitter operation possible
- Rack installation 1 U
- Controlling by ArtNet
- The device can be connected via RJ-45 (F) mounting version to the PC
- (19″) 48.3 cm rack installation
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version |
| Network connection: | Protocol: ArtNet 3 via 2x RJ-45 (F) mounting version |
| Control: | ArtNet |
| PC connect: | Via RJ-45 (F) mounting version |
| Housing design: | (19″) 48.3 cm rack installation |
| Dimensions: | Width: 48,3 cm Depth: 17,5 cm Height: 4,45 cm |
| Weight: | 2,40 kg |
